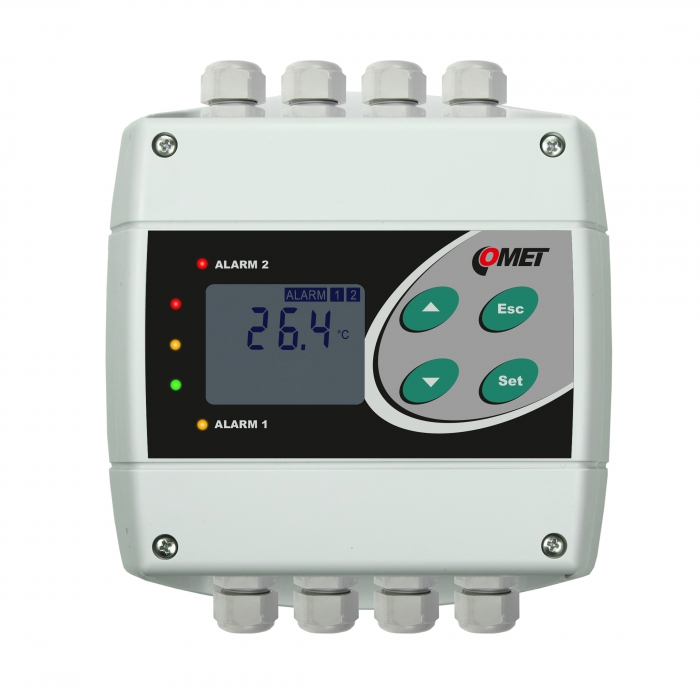

H4431 Temperature transmitter with RS485 output

code: H4431
Temperature transmitter for Pt1000 sensors with two relay outputs. Outdoor, indoor use.

For external Pt1000 temperature probe. Three two-state inputs.

Included in delivery:


Send request


Features

Temperature transmitter and thermostat is designed for two-state control of e.g. heating, ventilation, humidifier, dehumidifier, etc.
Transmitter is equipped with two relay outputs for alarm indication or control of external devices. For each relay setting of delay, hysteresis, audible alarm is enabled.
Measured values are converted to galvanically isolated RS485 serial output.
Degrees Celsius and Fahrenheit are user selectable.
Parameters are easy adjustable from regulator keyboard or from the computer. Large dual line LCD display is an advantage.
Transmitter is also equipped with three binary inputs for detection of two-state events - e.g. water, smoke, glass break detection, door contact.

APPLICATIONS

  • temperature control
  • monitoring of temperature and three binary signals at:
  • building management and automation
  • server rooms
  • telecommunication devices
  • warehouses, glasshouses
  • manufacturers
  • museums, archives, galleries
  • air-conditioned rooms, HVAC

Serial output RS485 is galvanically isolated from other circuitry to prevent collisions on the RS485 bus. The transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 0 to 255. Communication speed is 110 to 115200Bd.

SOFTWARE:

  • Comet Database
    Complex solution for data acquisition and analysing. Easy to use and high flexible database software for Comet Transmitters and Regulators.


  • T-Sensor software
    Free configuration utility for Comet Transmitters and Regulators.

  • SensorReader software
    Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.

  Online Monitoring system with RS485/232 sensors

Technical Data

Technical parameters Value
Output RS485
Measured Value Temperature
Construction Type For External Temperature Probe Pt1000
Design Industrial
Temperature Measuring Range -200 to 600 °C
Relay Output Yes
Two-State Input Yes
Lcd Display Yes
PoE No
Maximum switching voltage, current, power of relay output 50V, 2A, 60VA
Audible alarm from built-in beeper - switchable
Accuracy of temperature intput without probe ±0,2 °C
Available temperature units degrees Celsius, Fahrenheit
Signal for binary inputs dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Minimum pulse length at binary input 500 ms
Voltage at open contact 3.3 V
Low voltage level 0 to +0.5 V
High voltage level +3.0 to +30V
Temperature operating range -30 to +80°C
Temperature operating range of LCD display readable to operating temperature +70°C, it is recommended to switch OFF the LCD over +70°C
Communication protocol ModBus RTU, ARION and Advantech ADAM compatible protocol
Communication speed 110 to 115200 Bd
IP protection IP65
Power 9-30Vdc, power consumption approximately 1W
Dimensions 136 x 160 x 45 mm (W x H x D)
Weight approximately 350g
Warranty 3 years
