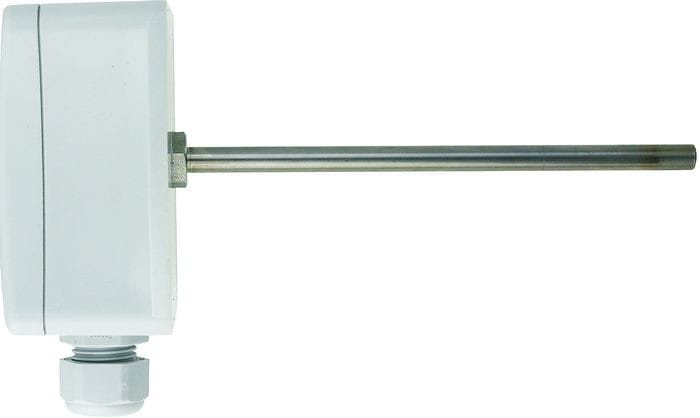

P0132 - Duct mount temperature probe 0 to +150°C / 4 to 20mA, IP65

code: P0132
Remote transmitter with temperature sensor at 120mm stem. Outdoor, indoor use.

Built-in temperature sensor.

Included in delivery:

  • Traceable calibration certificate
  • Quick start manual

Send request


Features

Technical Data

Technical parameters Value
Output 4-20mA
Measured Value Temperature
Construction Type Duct Mount (150mm)
Design Industrial
Accuracy of temperature output ±0.4°C up to +100°C, ±0.4% from reading over +100°C
Temperature range of 4-20mA output 0 to +150°C
Temperature operating range -30 to +80°C
Current output - two-wire connection 4-20mA
Break of sensor >24mA
Short circuit of sensor <3.5mA
IP protection IP65
Power 9-30Vdc, typically 24V
Dimensions 88.5 x 94 x 160 mm (W x H x L)
Weight approximately 140g
Warranty 3 years
P0122 - Duct mount temperature probe -30 to +80°C / 4 to 20mA, IP65 P0122 - Duct mount temperature probe -30 to +80°C / 4 to 20mA, IP65
code: P0122
Remote transmitter with temperature sensor at 120mm stem. Outdoor, indoor use.
Remote temperature sensor with 4-20mA output Remote temperature sensor with 4-20mA output
code: P0120
Remote temperature transmitter. Outdoor, indoor use.
P4141 Temperature Transducer Pt1000 -100°C to +30°C/ 4 to 20 mA P4141 Temperature Transducer Pt1000 -100°C to +30°C/ 4 to 20 mA
code: P4141
Temperature transducer for Pt1000 sensors. Outdoor, indoor use.
P4191 Temperature Transducer  Pt1000 -50°C to +50°C/ 4 to 20 mA P4191 Temperature Transducer Pt1000 -50°C to +50°C/ 4 to 20 mA
code: P4191
Temperature transducer for Pt1000 sensors. Outdoor, indoor use.
P4121 Temperature Transmitter  Pt1000 -30°C to +80°C/ 4 to 20 mA P4121 Temperature Transmitter Pt1000 -30°C to +80°C/ 4 to 20 mA
code: P4121
Temperature transmitter for Pt1000 sensors. Outdoor, indoor use.
P4151 Temperature Transducer  Pt1000 0°C to +35°C/ 4 to 20 mA P4151 Temperature Transducer Pt1000 0°C to +35°C/ 4 to 20 mA
code: P4151
Temperature transducer for Pt1000 sensors. Outdoor, indoor use.
P4131 Temperature Transducer  Pt1000 0°C to +150°C/ 4 to 20 mA P4131 Temperature Transducer Pt1000 0°C to +150°C/ 4 to 20 mA
code: P4131
Temperature transducer for Pt1000 sensors. Outdoor, indoor use.
