Sensor RS485/232 utility

code: RSU
Software for communication with COMET RS485/RS232 sensors.

Software Sensor RS485/232 utility allows communication of sensors with RS485/RS232 output and sending data to Comet Database.

Sensor RS485/232 utility offers an inexhaustible ability to connect unlimited number of sensors with Comet Database system and sending alarm SMS and e-mails.

The licence is not portable and can be used only on PC where was installed.


Send request


Features

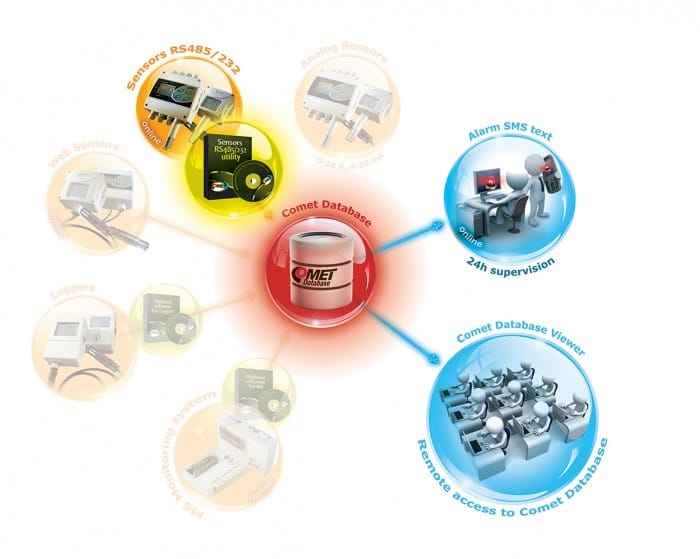

Sensor RS485/232 - schéma CDB

Sensor RS485/232 utility

Software for communication of COMET sensors and also third parties sensors with RS485/RS232 output. The software gains values from these devices, evaluates alarms and sent data to Comet Database, which can be installed anywhere on the network or on the Internet (it is not necessary to install on the same PC as the Sensor RS485/232 is)

Software contains of two parties:

Service
Services is running on the operating system background. According to its configuration it reads values from the device, evaluates alarms and sends data to the Comet Database. This service has no interaction with the user (user interface), it records their state and any errors in the Windows Event Log (Event Viewer).

Program
The program is used for service configuration and services control (start/stop). It has a user interface.
The program is composed of five basic windows and short wizard that runs automatically when it is invalid configuration.

Home window - contains basic information and navigation in the remaining 4 windows.

Sensor RS485/232 - Home


Sevice control window - enable/disable service and displays a list of Windows Event Log (information about running services)

Sensor RS485/232 - Service Control


Configuration window - sets the service configuration:
- Address and port where the database is installed in a SOAP server running.
- Number of the serial communication port to which the device is connected.
- Address and device type and setting alarm limits.

Sensor RS485/232 - configuration

Diagnostic window - helps to identify any errors.

Sensor RS485/232 - Diagnostic


Settings window - settings (language and licenses).

Sensor RS485/232 - Options

Supports:

  • COMET sensor output with RS485/RS232 (including the ability to set alarms)
  • 3rd party devices via Modbus RTU protocol
  • multiple networks (can connect multiple serial communication ports)
  • sending data to a remote server (Comet Database may not be installed on the same PC)

Minimum hardware and software requirements to install the COMET software

Operating System: Windows 7 and later, or Windows Server 2008 R2 and later; . NET Framework 4 or 4.5, Comet Database 10.0 and higher
Processor speed: 1.4GHz
Memory: 1GB RAM
The licence is not portable and can be used only on PC where was installed.
The software on CD is sent on request, as an optional accessory.
