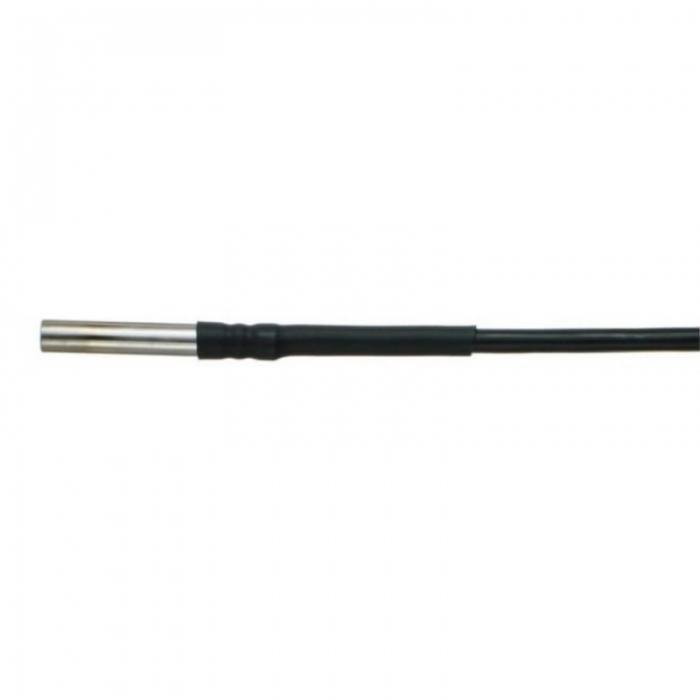

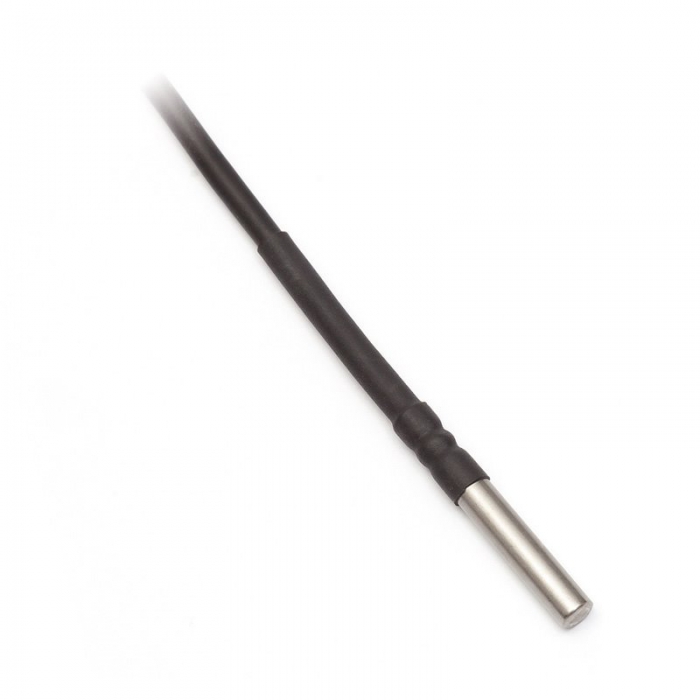

Pt1000TG8/0, temperature probe, cable 5 m

code: SN108

Multi-purpose watertight IP67 probe -80 to +200°C.

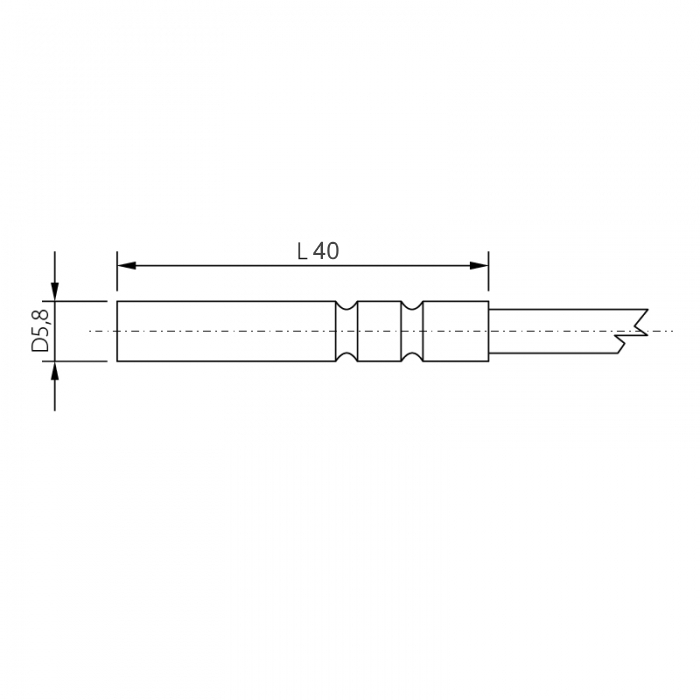

Stainless steel 17241 with silicone cable of specified length, without connector. Diameter 5.7mm, length 40mm. Time response t63<10s, t95<30s, measured in fluid. Time response t63<60s, t95<150s, measured in airflow 1m/s.

Measuring range:  -50°C** to 200°C
** For static position of lead-in cable, the sensor can operate in temperatures from -80 °C

Optionally also available with cable of various lengths. For other cable lengths use the selector.


Send request

Technical data

Value
Measured value Temperature
Type of element Pt 1000 / 3850 ppm / °C
Accuracy class of element * ± (0,15 + 0,002 t) in °C
Temperature element wiring Two-wire configuration
Measuring range ** -50 °C to 200 °C
Sensor IP code IP 67 according to EN 60 529
Response time t0,5 <7 sec (in flowing water >0,2 m.s-1)
Housing material stainless steel 17240
Housing diameter 5.7 ± 0,1 mm
Housing length 60mm
Supply cable type shielded silicone 2 x 0,34 mm2
Supply cable length 5 meters
Connector without connector
Supply leads resistance 0,105 ohm / 1 m at a temperature of 25 °C
External pressure endurance without thermowell 2,5 MPa / with thermowell 6,3 MPa
