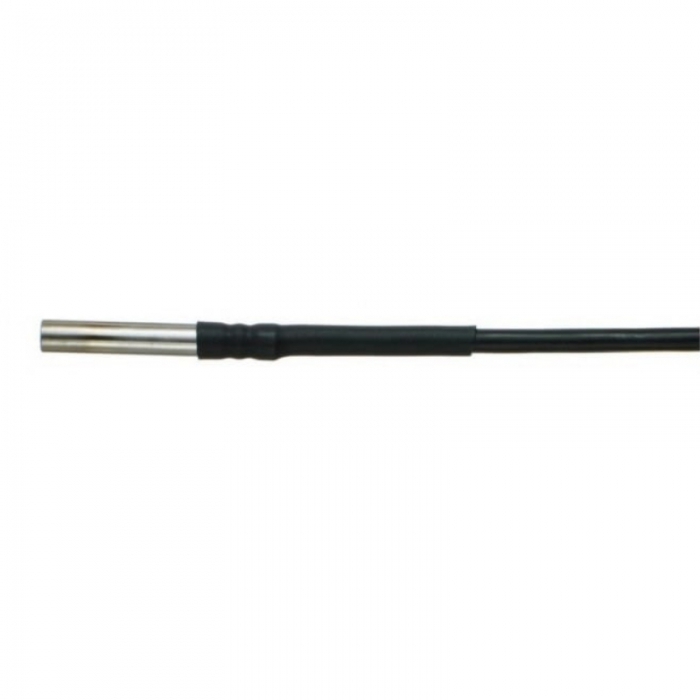

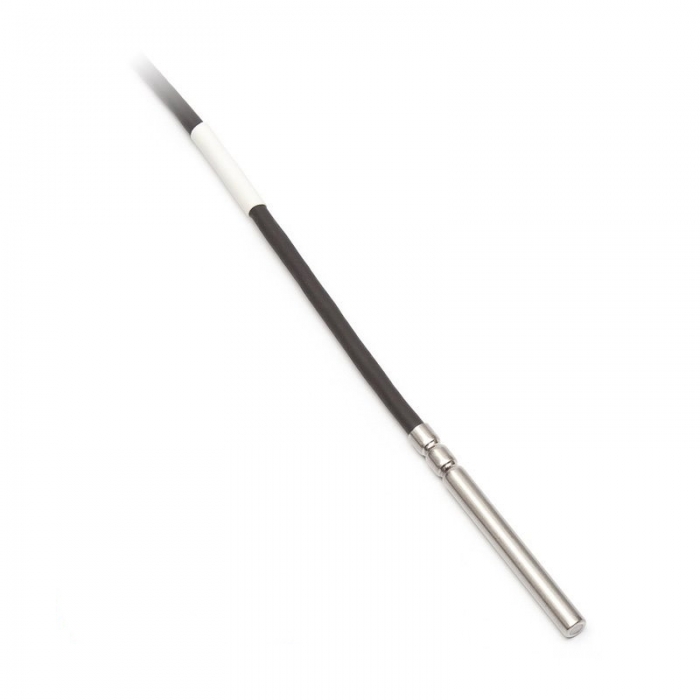

Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Multi-purpose watertight IP68 probe -50 to +200°C.

The probe is designed to measure the temperature of gaseous and liquid substances.

The maximum temperature range of use of the sensors is -50  to 200 °C. Used type of lead-in cable has silicone insulation and shielding.
The probe meet the ingress protection of IP 68 (1 bar) in accordance with EN 60 529 and is designed for measuring the temperature below the surface of water for continuous immersion at a depth of up to 5 m.
The method of use must be chosen with regard to the temperature and chemical resistance of the case and supply cable.

  • code
    SN234

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -50 to +200 °C
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <12 s (in flowing water at > 0.2 m/s)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4404

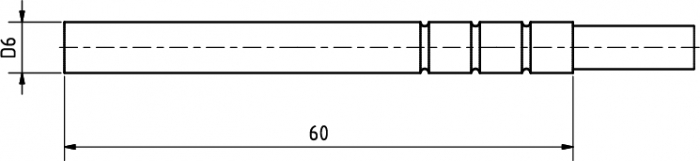

Dimensions of the case length 60 mm;
diameter 6 ± 0.1 mm
Lead-in cable silicone shielded
Length of lead-in cable 10 meters
Connector without connector
IP protection IP68
Warranty 30 months
