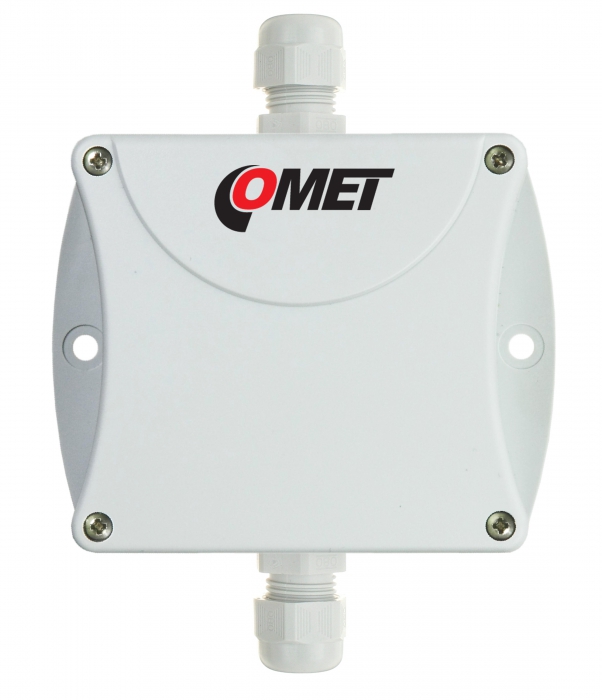

P4161 Temperature Transducer Pt1000 0°C to +250°C/ 4 to 20 mA

code: P4161
Temperature transducer for Pt1000 sensors. Outdoor, indoor use.

For external Pt1000 temperature probe.

Included in delivery:

  • Traceable calibration certificate
  • Quick start manual

Send request


Features

Technical Data

Technical parameters Value
Output 4-20mA
Measured Value Temperature
Construction Type For External Temperature Probe Pt1000
Design Industrial
Temperature Measuring Range 0 to 250 °C
Relay Output No
Two-State Input No
Lcd Display No
PoE No
Accuracy of temperature output ±0.4°C
Temperature range of 4-20mA output 0 to +250°C
Temperature operating range -30 to +80°C
Current output - two-wire connection 4-20mA
Break of sensor >24mA
Short circuit of sensor <3.5mA
IP protection IP65
Power 9-30Vdc, typically 24V
Dimensions 88.5 x 117 x 39.5 mm (W x H x D)
Weight approximately 125g
Warranty 3 years
