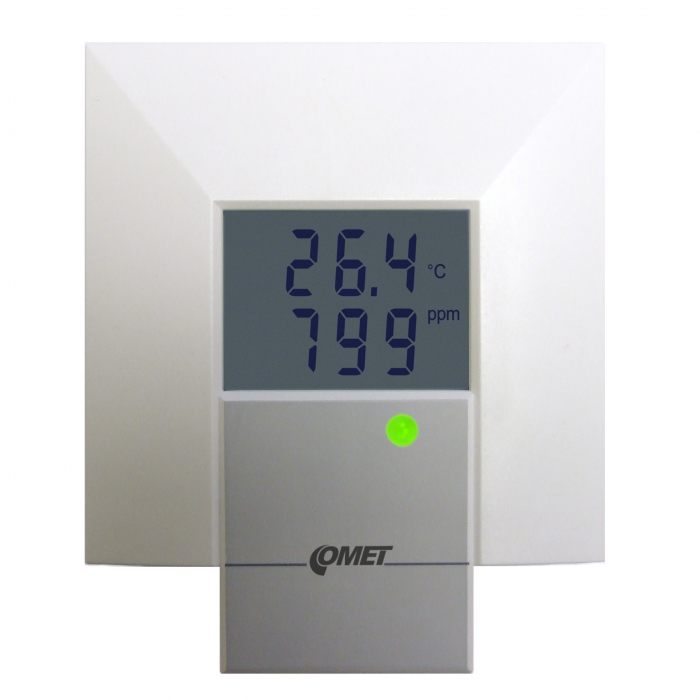

T8248 CO2 concentration and temperature transmitter with 0-10V outputs, built-in sensors
code: T8248CO2 - carbon dioxide level and temperature sensor.
CO2 concentration and temperature transmitter with two 0-10V outputs is specially designed for use in exacting interiors in building energy management and HVAC systems. It designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.
Included in delivery:
The CO2 - carbon dioxide level is recently regarded as an important parameter that substantially determines the quality of the interior climate. Especially in buildings where many people gather, such meeting rooms, hospitals, schools, cinemas, theatres and care centres. With the help of CO2 sensor engineers, technical advisors, environmental experts and health specialists can optimize the ventilation for creation of a healthy interior climate.
Method of CO2 sensor multipoint calibration leads to an excellent accuracy measurements of CO2 in the entire of operating temperature range. With this sensor is the device able to meet the demanding requirements for outdoor use. The measurement principle is based on the NDIR principle with dual wavelength, which automatically compensates for aging of the sensor. The sensor is resistant against the pollution and provides maintenance-free operation and excellent long-term stability.
APPLICATIONS - measuring of CO2 level and temperature at:
- building HVAC management
- climate technology
- schools, universities
- meeting rooms, hospitals, cinemas, theatres
- weather stations
Transmitter contains a microprocessor based control circuitry in an ABS plastic case with connection terminals.
The CO2 concentration and temperature sensors are built inside the case.
Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and failure indication.
Measured CO2 concentration and temperature values are converted to 0-10V voltage outputs.
Outputs are adjusted to maximum range from the manufacturer.
To adjust other range by the user buying of SP003 cable is necessary - see Optional accessory.
Free configuration program TSensor for transmitter adjustment is ready to download anytime.
If different adjustment of output range is required, please specify required range in the order. Adjustment is free of charge.
Ordering example: Transmitter T8248, outputs 0 to 2000ppm and 0 to 50°C
Typical application wiring of CO2 and temperature sensor
|Measured Value||CO2 + Temperature|
|Temperature Measuring Range||-10 to 50 °C|
|Range of CO2 concentration measurement||0 to 2000 ppm|
|Accuracy of CO2 concentration measurement||±(50ppm +2% from reading) at 25°C and 1013hPa|
|Accuracy of temperature output||±0.5°C|
|Temperature units||degrees Celsius, Fahrenheit|
|Temperature operating range||-10 to +50°C|
|Dimensions||88 x 106 x 33 mm (W x H x D)|
|Material of the case||ABS|
|Quick Start Manual||820 kB|
|Instruction Manual||470 kB|
|Analog Sensors Catalog||4.2 MB|
|TSensor, Code: TSensor||more »|
|TSensor - free configuration program version 220.127.116.11||2.8 MB|
|TSensor - free configuration program - revision history||20 kB|
