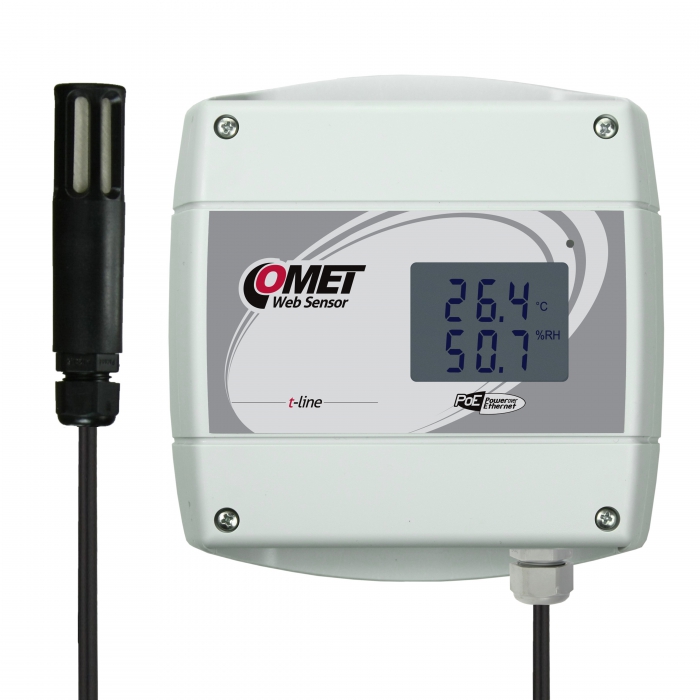

Web Sensor T3611 with PoE - remote thermometer hygrometer with Ethernet interface
code: T3611Ambient temperature, relative humidity t-line Web sensor with Power over Ethernet feature. Remote alarm.
PoE Web Sensor with relative humidity and temperature probe on the cable.
High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Power over Ethernet feature according IEEE 802.3af is supported. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.
The device is supplied with T+RH probe with 1m cable. Cable lengths 2m or 4m available optionally.
Included in delivery:
|Measured Value||Temperature + Relative Humidity|
|Construction Type||With T+RH Probe on Cable|
|Temperature Measuring Range||-30 to 105 °C|
|Relative humidity range||0 to 100%|
|Accuracy of relative humidity measurement||±2.5% relative humidity from 5 to 95% at 23°C|
|Accuracy of temperature output||±0.4°C|
|Available temperature units||degrees Celsius, degrees Fahrenheit|
|Computed values||dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy|
|Accuracy and range of dew point temperature output - for more details see graphs in manual||±1.5°C at ambient temperature lower than 25°C and RH>30%
range -60 to +80°C
|Temperature compensation of the humidity sensor||all temperature range|
|Temperature operating range||-20 to +60°C|
|IP protection||IP30 electronics, IP40 sensors|
|LAN connection||RJ-45 connector, 10Base-T or 100Base-TX|
|Communication protocols||WWW, ModbusTCP, SNMPv1, SOAP, XML|
|Alarm protocols||E-mail, SNMP Trap, Syslog|
|Configuration||T-Sensor, WWW configuration|
|Filtering ability of sensor cover||0.025mm - filter with stainless steel mesh|
|Power||Power over Ethernet according to IEEE 802.3af or 5Vdc|
|Power connector||co-axial, diameter 5.5 x 2.1mm|
|Length of the probe cable||1m, 2m or 4m optionally|
|Dimensions||136 x 159 x 45mm (W x H x D), probe length 88mm, probe diameter 18mm|
|Instruction Manual||1.6 MB|
|Quick Start Manual||870 kB|
|Declaration of Conformity||100 kB|
|MIB Tables||510 kB|
|WebSensors Catalog||8.6 MB|
|Comet Database, Code: CDB||more »|
|Comet Database One Click Installer - version 14.0-II||340.3 MB|
|Comet Database - changes log||9 kB|
|Comet Database - main Manual||2.4 MB|
|How to run programs with database connection configuration taken from file||60 kB|
|Database Viewer for Comet Database, Code: DBV||more »|
|Comet Database Viewer version 188.8.131.52||23.5 MB|
|Comet Database Viewer changes log||4 kB|
|TSensor, Code: TSensor||more »|
|TSensor - free configuration program version 184.108.40.206||2.8 MB|
|TSensor - free configuration program - revision history||20 kB|
|SensorReader, Code: SensorRead||more »|
|SensorReader - free program for data recording from one sensor, version 220.127.116.11||1.9 MB|
|SensorReader changes log||2 kB|
AC/DC adapter 230Vac to 5Vdc/1.2A
Wall holder for external probes DIGIL
COMETEO Meteo Shield for Weather Sensors
plastic sensor protection with stainless filter (black)
PTFE sensor protection, white
sintered bronze sensor cover
Universal probe holder for easy mounting to rack 19"
Vessel for adjustment and calibration of humidity
Humidity Standard 10%RH, set 5pcs
Humidity Standard 80%RH, set 5pcs
KIT-GSM with modem GSM-BGS3-T
UPS for DC devices - EG-UPS-DC-001

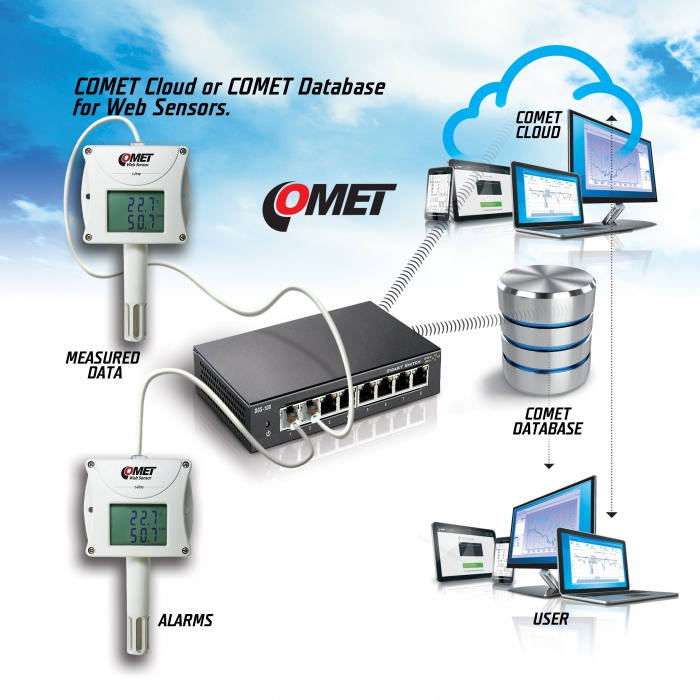

code: CDBSystem for collecting, alarming and analysing of measured data from all COMET devices.
|Database Viewer for Comet Database
code: DBVLow cost browser Database Viewer enables several clients to view database from different places on network/internet.

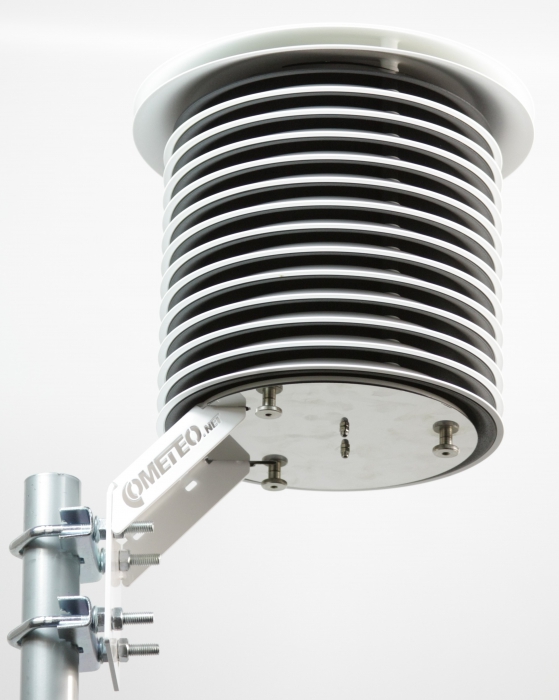

|COMETEO Meteo Shield for Weather Sensors
