Temperature measurement in the composting and sanitation box

25-08-2022

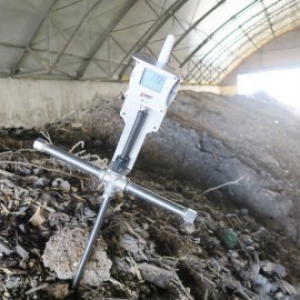

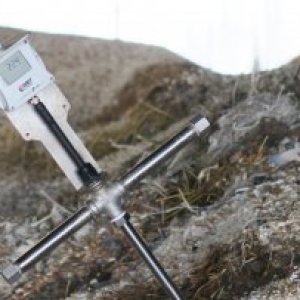

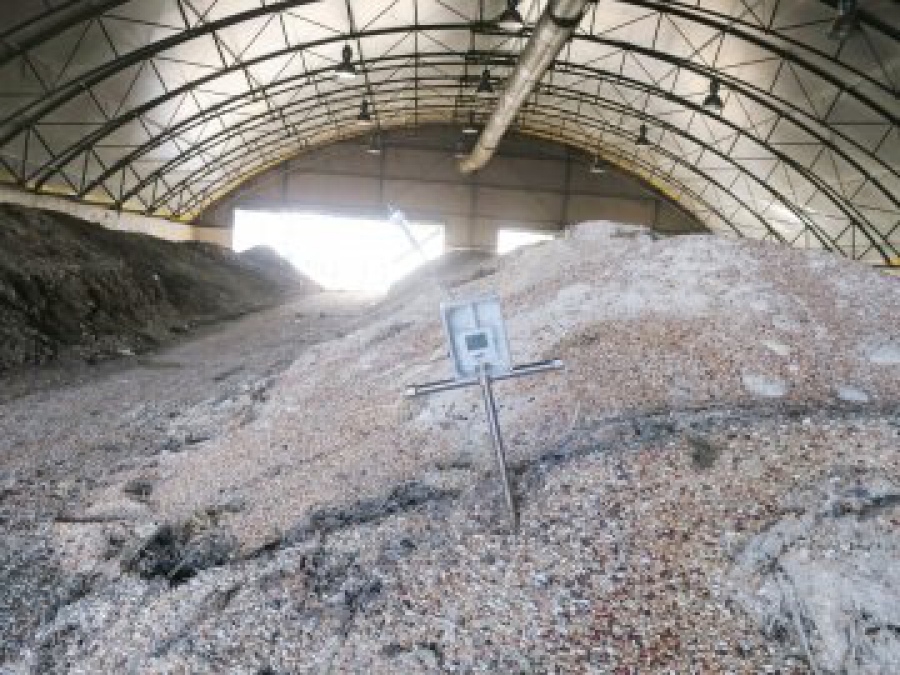

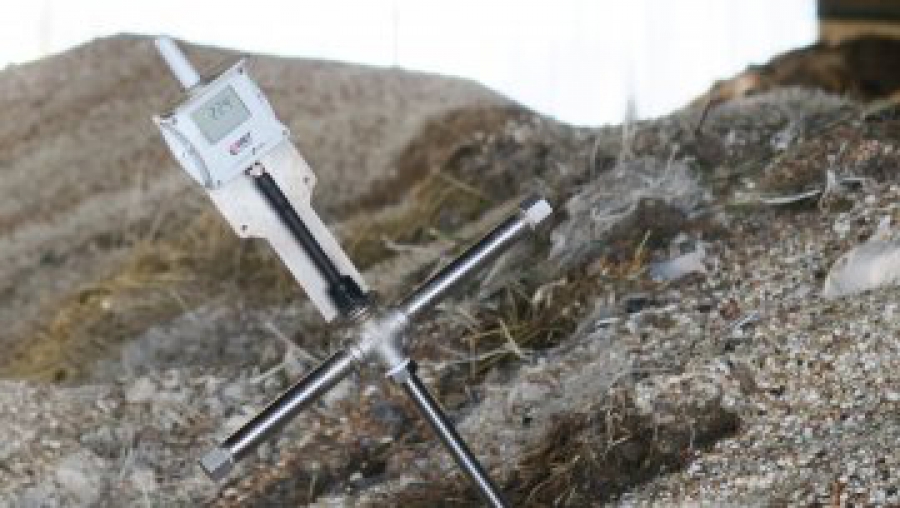

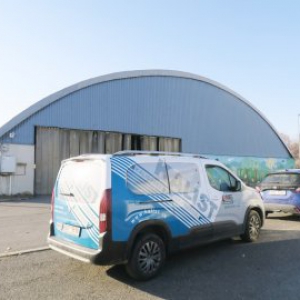

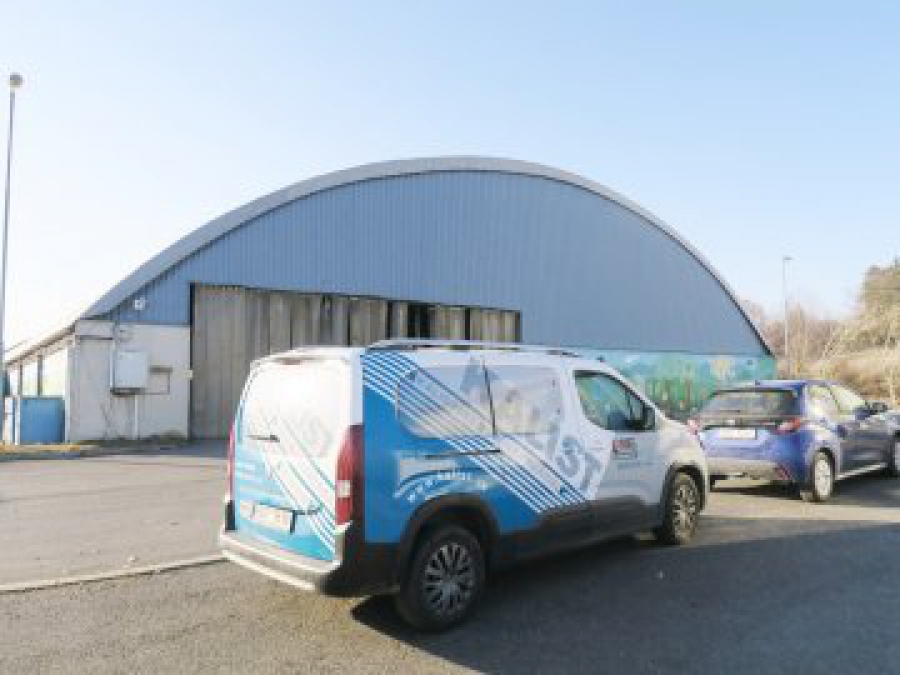

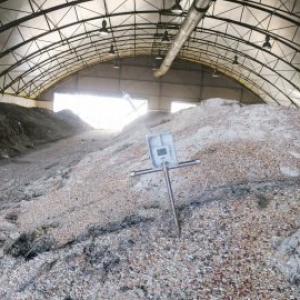

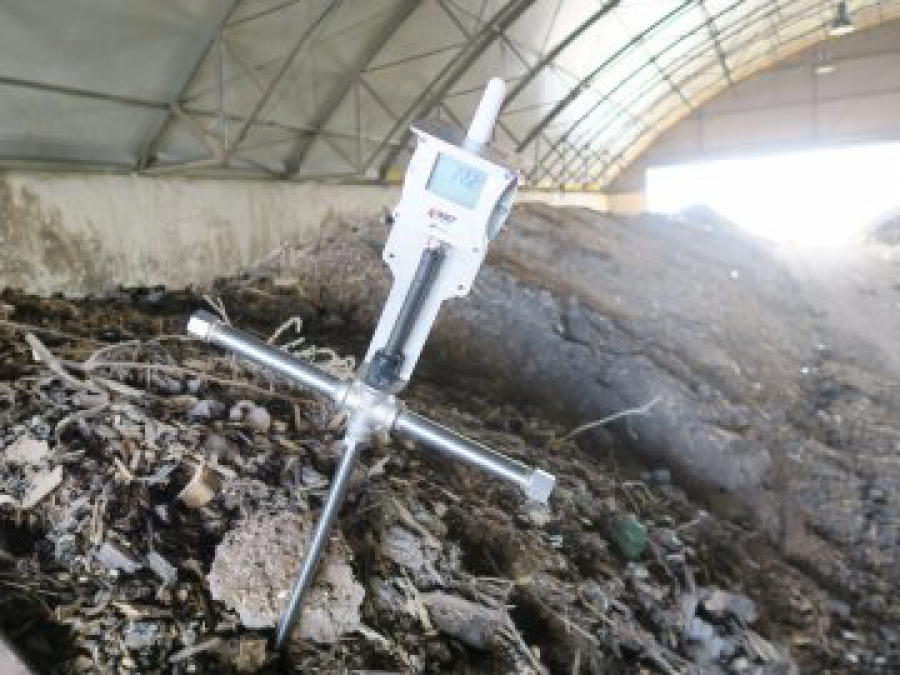

To measure the temperature in the regional composting plant, we supplied needle thermometers with wireless transmission.

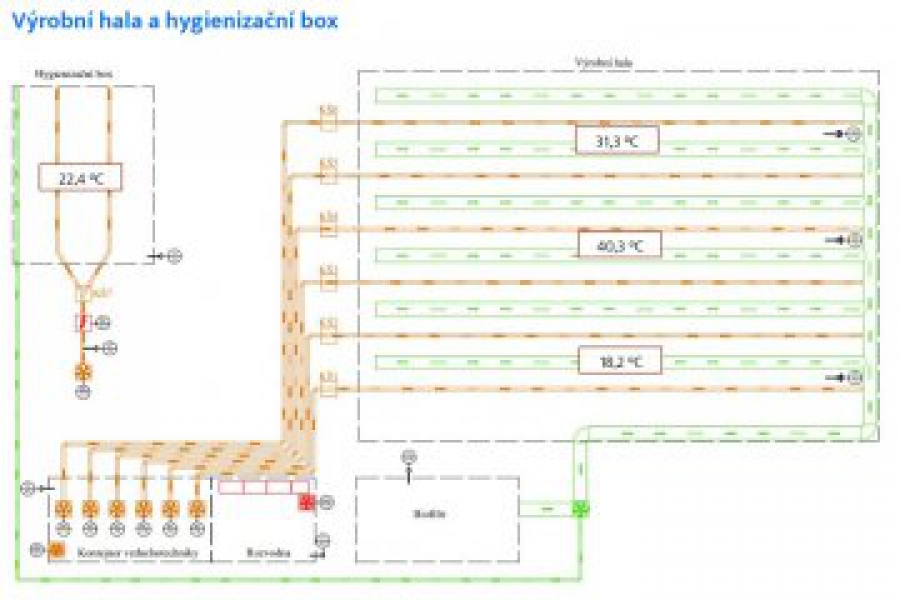

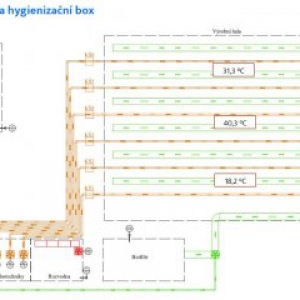

A suitable temperature is needed for proper composting. Especially in the hygienisation box, the hygienisation process is determined by reaching 70°C. The hygienisation process should be controlled autonomously without human intervention. The record of the measured temperatures must therefore be automatically monitored and recorded in a repository where no changes can be made by the user.

The client requested

• Durable design of temperature probes for the composting environment with temperature measurement in aggressive material
• Wireless transmission of measured values
• Temperature recording in an autonomous system without human intervention
• Alarm information when the temperature in the sanitation box (70°C) is exceeded
• Historical record of measurements for inspection authorities
• Accredited sensor calibration

Solution

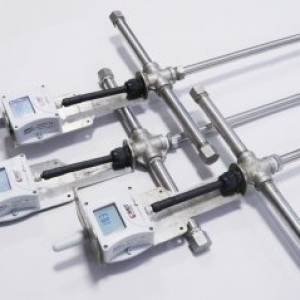

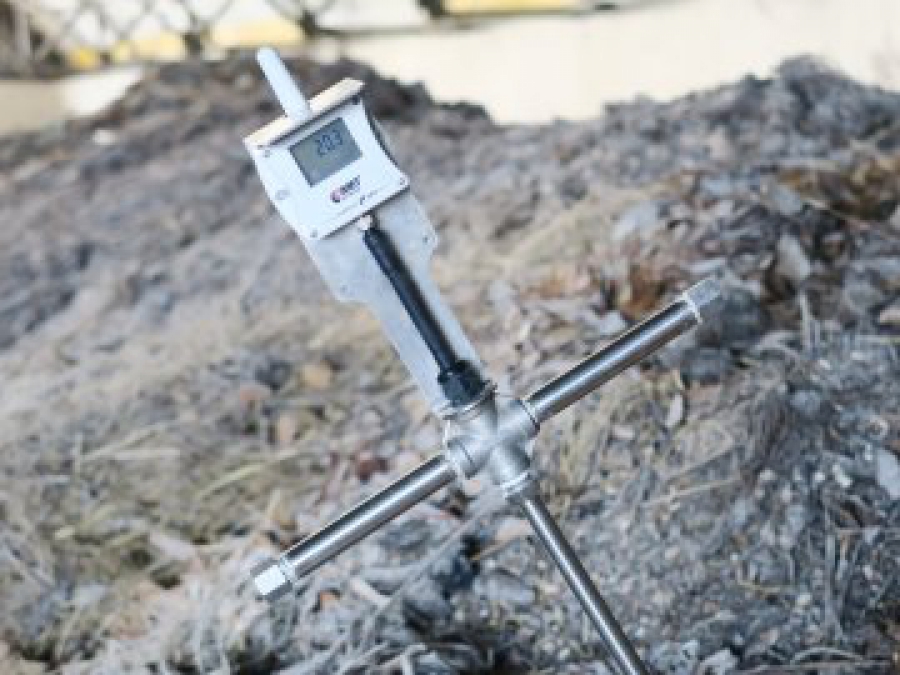

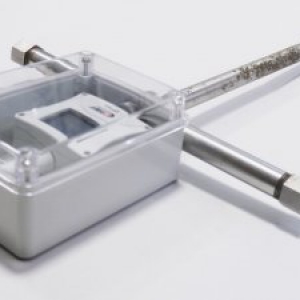

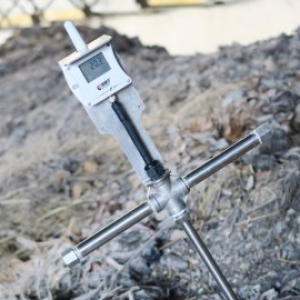

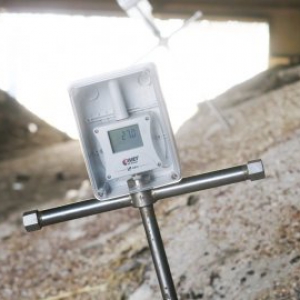

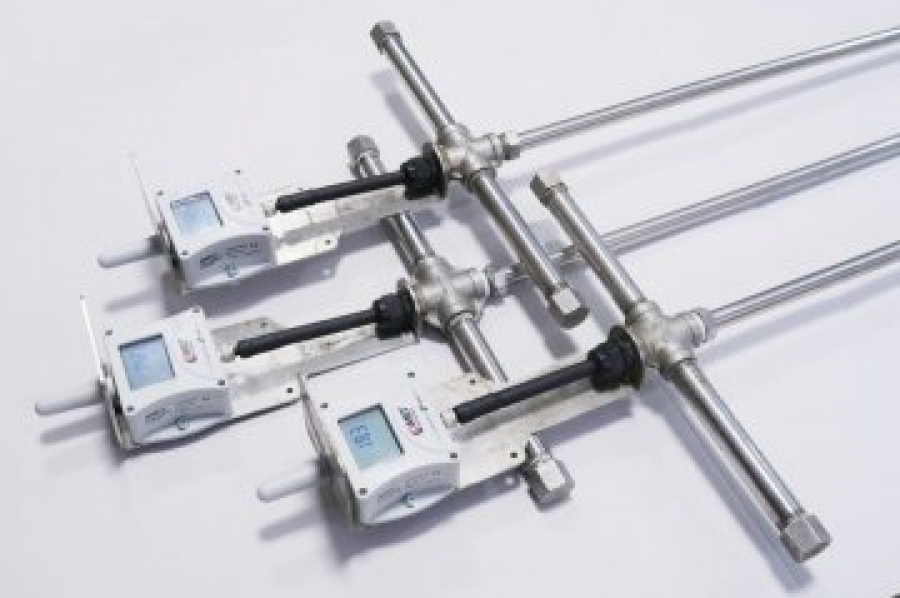

• Temperature probes are made of stainless steel material using IP65 rated instruments

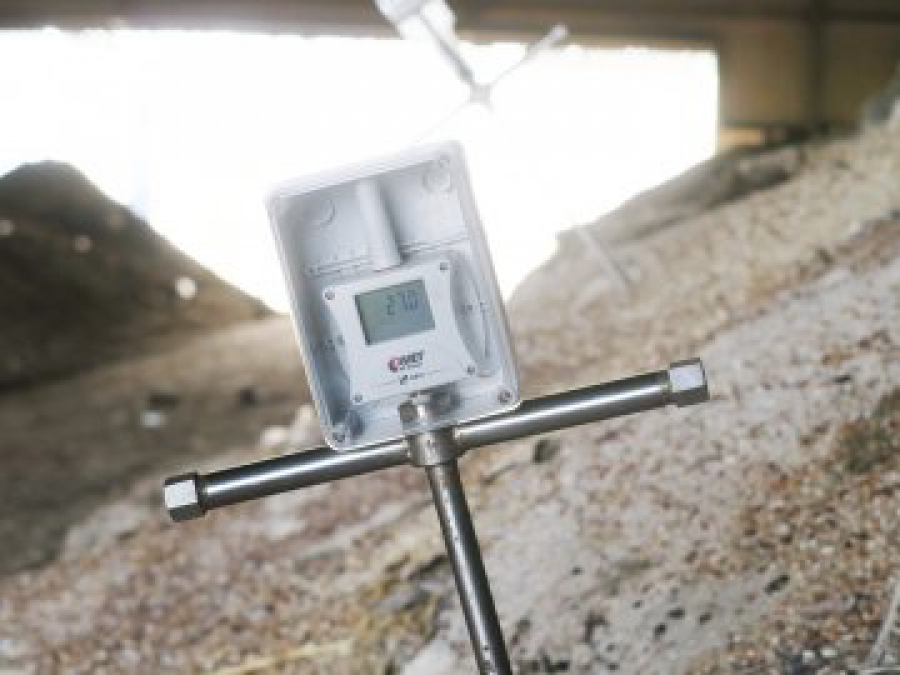

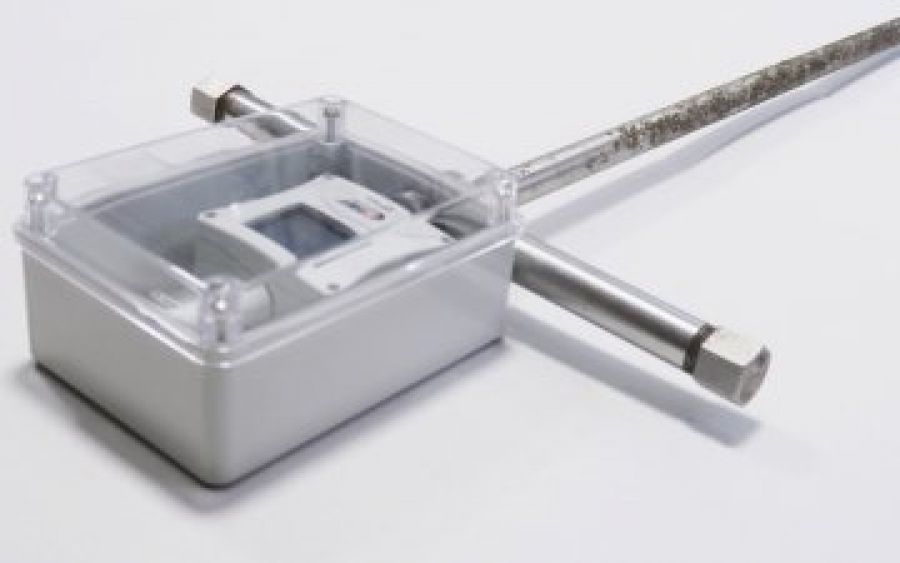

• An additional box with higher protection has been used for use in the hygienisation box
• The transmission of measured data is mediated by the Sigfox radio network, which has coverage throughout Europe
• Recording is done autonomously to the Comet cloud, which allows exports and reports for control authorities
• The accredited calibration laboratory KALIST AKL Ltd. has calibrated the sensors and issued internationally recognized calibration certificates within the framework of the international multilateral agreements EA MLA and ILAC MRA
