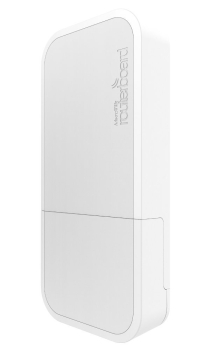

LoRaWAN® Gateway, MikroTik wAP
LoraWAN® Gateway - a complete solution for implementing LoRa and COMET Cloud.
The proven WAP design ensures reliable performance even in harsh weather conditions. The device supports the 863-870 MHz frequency range.
The LoRaWAN® Gateway is pre-configured for operation in COMET Cloud, ensuring quick and seamless integration into the system.

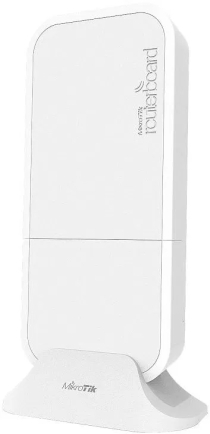

LoRaWAN® Gateway Kit includes wall, pole or desk mount, 230V AC/24V DC power adapter and PoE power splitter.
Comparison of Available LoRa Gateway Models:
SP041 MikroTik wAP – suitable for indoor installations thanks to the built-in antenna, with the option of outdoor use due to its IP54 rating.
SP042 SenseCAP M2 – higher sensitivity to radio signals thanks to the external antenna. Intended for indoor use only (not resistant to weather conditions, lacks higher IP rating), suitable for environments where an external antenna is not an issue.
-
codeSP041
Product variants
Technical data
CHARACTERISTICS
LoRa Frequency
EU863-870, RU864-870, IN865-867
Max power consumption
7 W
Ethernet
10/100 Mbps
LoRa antenna
Internal or SMA connector for external antenna
POWER
DC jack input Voltage
9-30 V
PoE in input Voltage
9-30 V (Passive PoE)
GENERAL TECHNICAL DATA
Operating temperature
-40°C to +60°C
Protection class
IP54
Dimensions
185 x 85 x 30 mm
Optional accessories and download
Manuals
Instruction Manual
