Temperature probe Pt1000TR160/M, MiniDin connector, cable 1 meter

Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

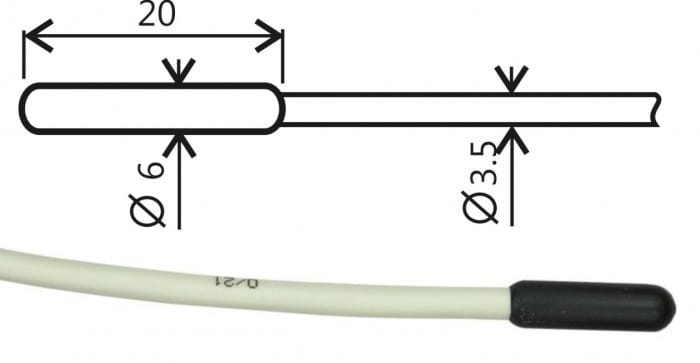

Tolerance t = ±(0.30+0.005*|t|) - class B in accordance with IEC751. Polyamide enclosure with shielded PVC cable of specified length. Enclosure diameter 6mm, length 20mm. Diameter of the cable 3. With MiniDIN connector.

  • code
    SN199M

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ± (0.3 + 0.005 t) at °C
Accuracy class A
Time response t0.5 <12 s (in flowing water at > 0.2 m/s)
t50 <12s, t90 <32s (in liquid)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case POLYAMIDE-based plastic
Dimensions of the case length 20 mm;
diameter 5.7 ± 0.1 mm
Lead-in cable PVC shielded
Length of lead-in cable 1 meter
Connector MiniDin
IP protection IP67
Warranty 30 months
