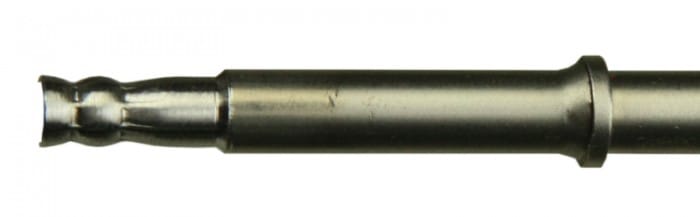

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters
Temperature sensors are developed for measuring temperature of smoke and flue gases in the flue fireplaces, stoves and boilers.
The temperature sensors Pt1000TR050M are designed for measuring temperatures of gaseous and liquid substances.
The temperature range for application of the sensor is -50°C to +400 °C, the maximum temperature may be exceeded up to 450°C in a short time (relates to active measuring part of sensor which is determinated by spacer ring).
Around the lead in cable with Teflon insulation must not be temperature higher than 260 °C.
They meet the ingress protection IP64 according to the EN 60 529 standard. The sensors are suitable for temperature measurement in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.
± (0.3 + 0.005 t) at °C in range over +250 °C
GENERAL TECHNICAL DATA

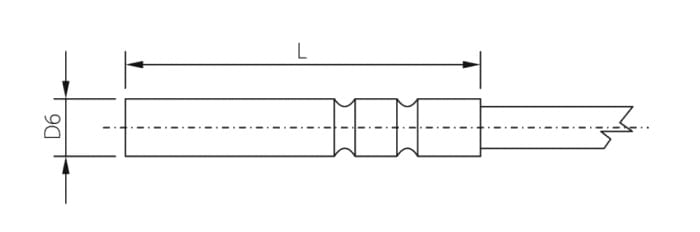

spacer ring diameter 8 mm
