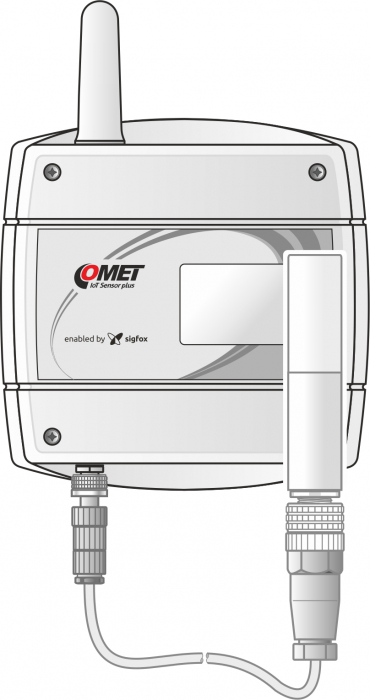

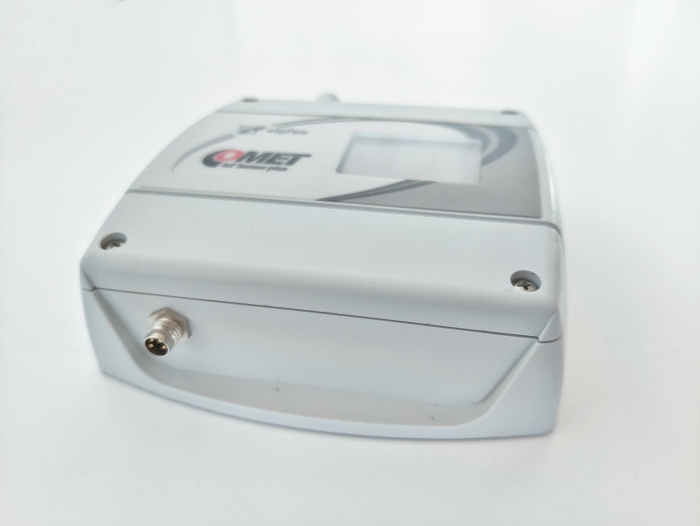

IoT Wireless Temperature, Atmospheric Pressure and CO2 Sensor, powered by Sigfox

Sensor power by Sigfox with internal temperature and atmospheric pressure sensor and input for external CO2 concentration probe (1% or 5%).

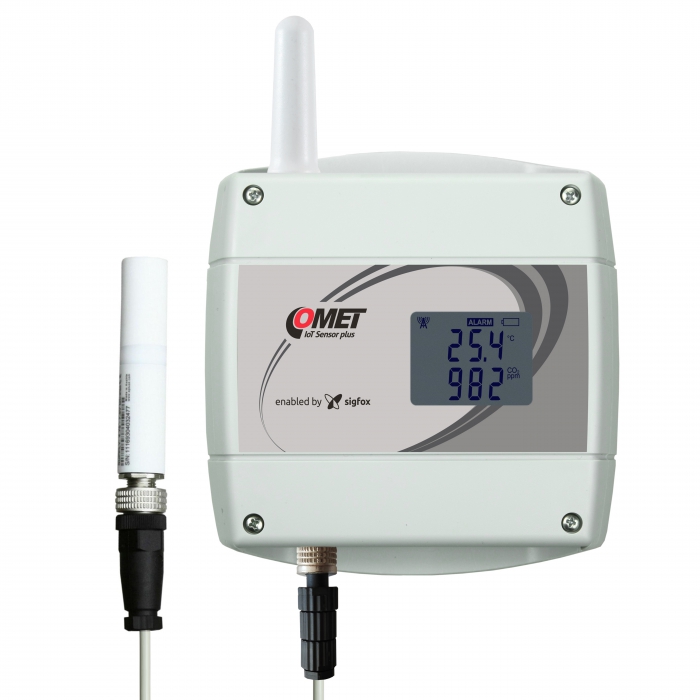

The device measures the temperature, atmospheric pressure from the internal sensors and CO2 from attachable and replaceable external probe on the cable - you can choose it from an optional accessory.

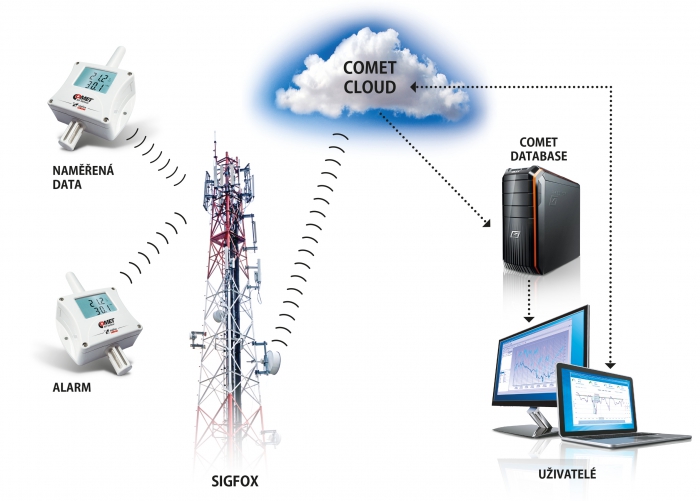

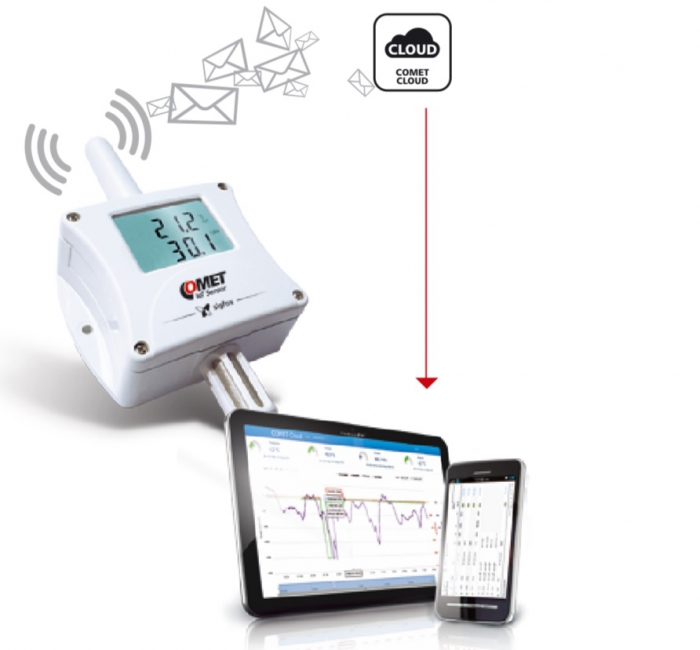

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).

Highlights:

  • wireless transmission of measured values and alarm states

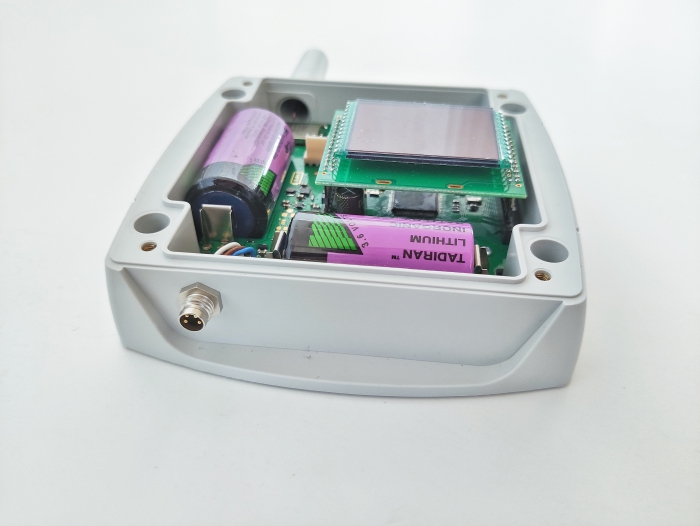

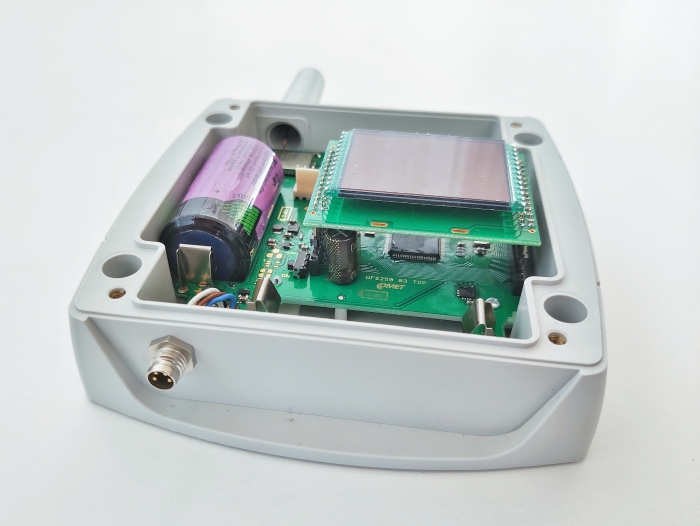

  • two slots for batteries for longer operation time
  • battery power (C size 3.6 V) with low battery indication (battery life up to 7 years)
  • remote setting of the device from COMET Cloud (maximum once a day)
  • IP65 for usage of device on outside applications
  • Traceable calibration certificate in accordance with EN ISO / IEC 17025

The availability of Sigfox network in a particular location

Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.

  • code
    W8861
  • Warranty
    3 years

Technical data

Measured value

Temperature
CO2
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -20 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) t90 < 8 min (temperature change 20 °C)

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy 100 ppm + 5% of the measured value at 23 °C a 1 013 hPa
Measuring range 0 to 50 000 ppm
Accuracy ±(1,5 % from full scale +2% from the measured value)
Resolution 0.001 % CO2 payload protocol (cloud)
0.01 % CO2 device display
External probe cable length CO2 1, 2 or 4 meters

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 700 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal sensor for temperature, humidity and atmospheric pressure + 1x external CO2 sensor
Message transmission interval adjustable 10 minuteses, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Operating frequency 868 MHz
Maximum transmission power 25mW
Sigfox radiation class 0U
Radio configuration zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter 50 km in the field, 3 km in the city
Power Lithium battery 3.6 V, C size, capacity 8.5 Ah
Protection class IP54 electronics, IP65 sensor CO2
Number of battery slots 2
Dimensions 179 x 134 x 45 mm
Weight (including batteries) 340g
Warranty 3 years

Battery lifetime

Sending interval 10 minutes 20 minutes 30 minutes 1 hour 3 hours 6 hours 12 hours 24 hours
1x lithium battery A4206 - 8500mAh 10 months 1 year 1,5 years 2 years 3 years 3,2 years 3,4 years 3,5 years
2x lithium battery A4206 - 8500mAh 20 months 2 years 3 years 4 years 6 years 6,4 years 6,8 years 7 years

Optional accessories and download

CO2 external probe, range 0-10.000ppm, M12 connector, without cable

CO2 external probe, range 0-10.000ppm, M12 connector, without cable

code SN220
Extension cable for CO2 probe, M12/M8 circular connector, cable 1 meter

Extension cable for CO2 probe, M12/M8 circular connector, cable 1 meter

code UWP001
Extension cable for CO2 probe, M12/M8 connector, cable 2 meters

Extension cable for CO2 probe, M12/M8 connector, cable 2 meters

code UWP001-2
Extension cable for CO2 probe, M12/M8 connector, cable 4 meters

Extension cable for CO2 probe, M12/M8 connector, cable 4 meters

code UWP001-4

Lithium battery 3,6V/C

Lithium battery 3,6V/C

code A4206

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Holder for mounting the COMET Transmitter on magnetic surfaces

Holder for mounting the COMET Transmitter on magnetic surfaces

code SP103

COMET Cloud

COMET Cloud

code cloud
