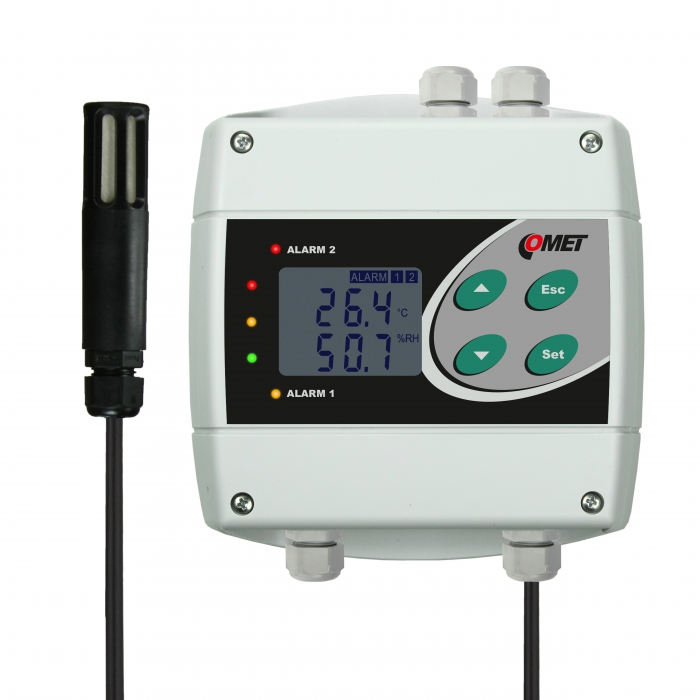

Temperature and humidity regulator with 230Vac/8A relays
Humidistat, thermostat with two relay outputs. Outdoor, indoor use.
Relative humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
The device is supplied with T+RH probe with 1 meter cable.
-
codeH3061
-
Warranty3 years
Product variants
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-30 to +105 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
RELAY OUTPUTS
Quantity
2
Maximal voltage
250 VAC
Maximal current
8 A
Maximal power
2000 VA AC, 192 W DC
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x connectable temperature+humidity probe
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm
from built-in beeper - switchable
Power
110-240 VAC
Protection class
IP65 electronics; IP40 sensors
Dimensions
136 x 161 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length
1 meter
Weight
approx. 450 g
Warranty
3 years
Optional accessories and download
Other accessories
cable for transmitter adjustment via USB port
code
SP003
Wall holder for external probes DIGIL
code
SP009
plastic sensor protection with stainless filter (black)
code
F5200B
PTFE sensor protection, white
code
F5300
sintered bronze sensor cover
code
F0000
PP4 Flat circular flange
code
PP4
PP90 Right-angled stainless steel flange
code
PP90
plastic gland for direct mounting of the humidity probe
code
SP004
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
code
F8800
Humidity Standard 10%RH, set 5pcs
code
HM023
Humidity Standard 80%RH, set 5pcs
code
HM024
Vessel for adjustment and calibration of humidity
code
MD046
