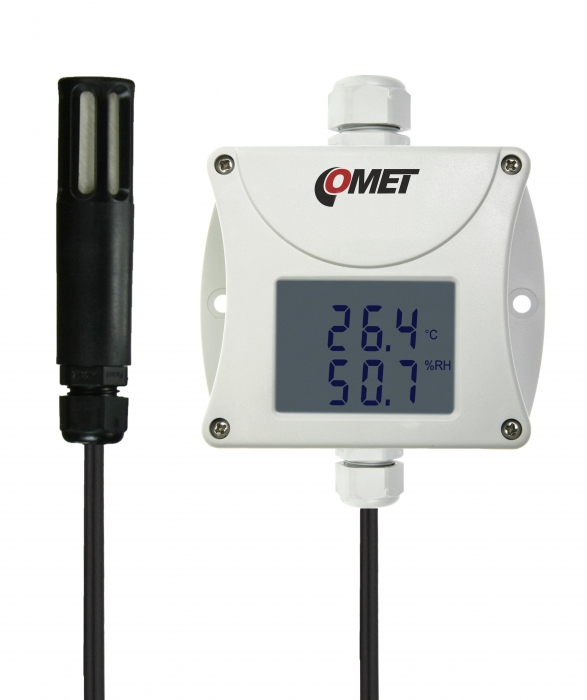

Temperature and humidity probe with 2 meters cable and 0-10V output

Humidity, temperature transmitter. Outdoor, indoor use.

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 2 meters cable.

NEW - AC Power -  now also powered from 24 Vac !



  • code
    T0211-2
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 0 - 10 V
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 15-30 Vdc; 24 Vac
Protection class IP65 electronics; IP40 sensors
Dimensions 88,5 x 145 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length 2 meters
Weight approx. 210 g
Warranty 3 years

Optional accessories and download

Accredited temperature calibration

Accredited temperature calibration

code SLU001

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

sintered bronze sensor protection

sintered bronze sensor protection

code F0000
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
plastic gland for direct mounting of the humidity probe

plastic gland for direct mounting of the humidity probe

code SP004
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001
