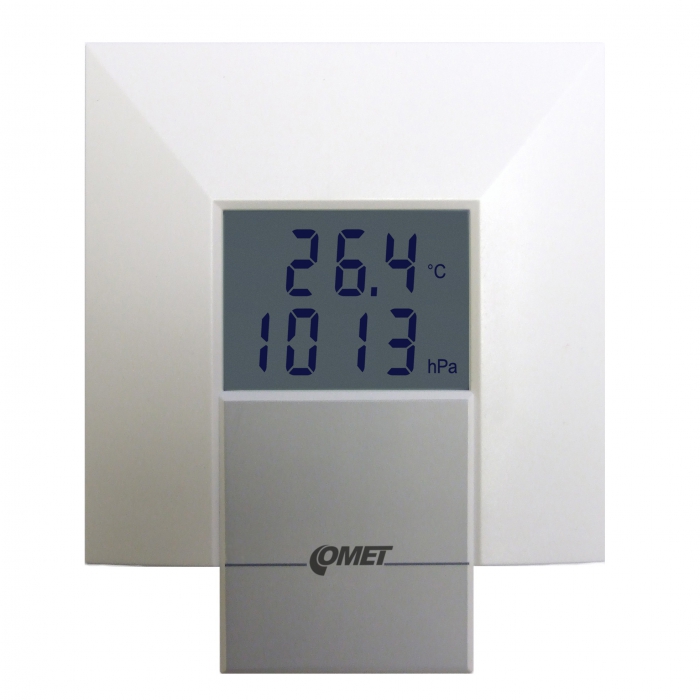

Interior temperature, humidity, bar. pressure transmitter - RS232 output

Ambient temperature, humidity, atmospheric pressure transmitter. Indoor use.

For exacting interiors in building energy management and HVAC systems. Are designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.



  • code
    T7318
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -10 to +50 °C
Accuracy ±0.5 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 5 to 95 % RH
Accuracy ± 2,5 % RH in the range 5 to 60 % RH
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.6°C at ambient temperature T<25°C and RH>30%
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -10 to +50 °C
Channels internal sensor of temperature, humidity sensor and atmospheric pressure
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output RS232
Range of humidity sensor temperature compensation all temperature range
Available temperature units degrees Celsius, degrees Fahrenheit
Available pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
Communication protocol ModBus RTU and Advantech ADAM compatible protocol
Power 9 to 30 Vdc
Protection class IP20
Dimensions 88 x 106 x 33 mm
Weight approx. 150 g
Warranty 3 years
