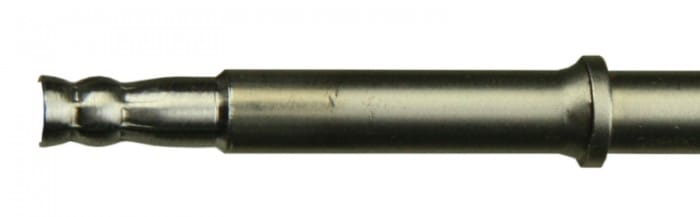

Temperature probe Pt1000TR050M/0, without connector, cable 2 meters

Temperature sensors are developed for measuring temperature of smoke and flue gases in the flue fireplaces, stoves and boilers.

The temperature sensors Pt1000TR050M are designed for measuring temperatures of gaseous and liquid substances.

The temperature range for application of the sensor is -50°C to +400 °C, the maximum temperature may be exceeded up to 450°C in a short time (relates to active measuring part of sensor which is determinated by  spacer ring).
Around the lead in cable with Teflon insulation must not be temperature higher than 260 °C.

They meet the ingress protection IP64 according to the EN 60 529 standard. The sensors are suitable for temperature measurement in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.

  • code
    SN271

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -50 to +400 °C, short-therm +450 °C, maximum temperature around the cable and above the clamping ring is +260 °C
Accuracy ± (0.15 + 0.002 t) at °C in range -50 to +250 °C
± (0.3 + 0.005 t) at °C in range over +250 °C
Accuracy class A
Time response t0.5 <5 s (in flowing water at > 0.2 m/s)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C

GENERAL TECHNICAL DATA

Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4301
Dimensions of the case length 50 mm; diameter 6 ± 0.1 mm;
spacer ring diameter 8 mm
Lead-in cable shielded teflon 2 x 0,22 mm2
Length of lead-in cable 2 meters
Connector without connector
IP protection IP64
Warranty 30 months
