Temperature probe Pt1000TGL40/0, without connector, cable 10 meters
Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

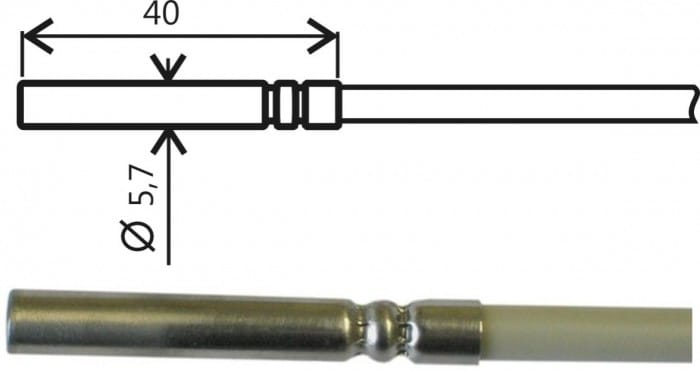

Stainless steel 17241 with PVC cable of specified length. Diameter 5.7mm, length 40mm. Time response t63<10s, t95<30s, measured in fluid. Time response t63<60s, t95<150s, measured in airflow 1m. Without connector.
-
codeSN188
Product variants
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
± (0.15 + 0.002 t) at °C
Accuracy class
A
Time response
t0.5 <7 s (in flowing water at > 0.2 m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4571
Dimensions of the case
length 40 mm;
diameter 5.7 ± 0.1 mm
diameter 5.7 ± 0.1 mm
Lead-in cable
PVC shielded
Length of lead-in cable
10 meters
Connector
without connector
IP protection
IP67
Warranty
30 months
