Datalogger for external CO2 probe up to 50.000 ppm with built-in atmospheric pressure sensor

Battery powered datalogger with internal atmospheric pressure sensor and for external CO2 probe up to 10 000ppm or 50 000ppm. In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • code
    U2422
  • Warranty
    3 years

Technical data

Measured value

Counted values (dew point…)
CO2
Atmospheric pressure

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy 100 ppm + 5% of the measured value at 23 °C a 1 013 hPa
Measuring range 0 to 50 000 ppm
Accuracy ±(1,5 % from full scale +2% from the measured value)
Resolution 1 ppm
External probe cable length CO2 1, 2 or 4 meters

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal sensor for atmospheric pressure and CO2 sensor with the cable
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery SONY LiIon 5200mAh
Protection class IP54
Dimensions 61 x 93 x 53 mm
Weight (including batteries) approx. 260 g
Warranty 3 years

Optional accessories and download

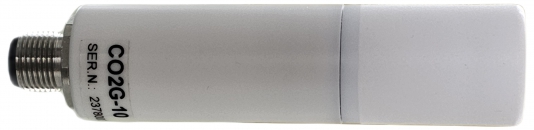

External CO2 sensors

CO2 external probe, range 0-10.000ppm, ELKA connector, without cable

CO2 external probe, range 0-10.000ppm, ELKA connector, without cable

code SN220
CO2 external probe, range 0-50.000ppm, ELKA connector, without cable

CO2 external probe, range 0-50.000ppm, ELKA connector, without cable

code SN253

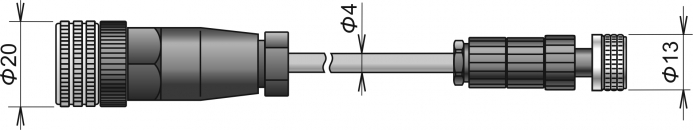

Extension cable for CO2 probe, ELKA/ELKA connector, cable 1 meter

Extension cable for CO2 probe, ELKA/ELKA connector, cable 1 meter

code UWP001
Extension cable for CO2 probe, ELKA/ELKA connector, cable 2 meters

Extension cable for CO2 probe, ELKA/ELKA connector, cable 2 meters

code UWP001-2
Extension cable for CO2 probe, ELKA/ELKA connector, cable 4 meters

Extension cable for CO2 probe, ELKA/ELKA connector, cable 4 meters

code UWP001-4

Other accessories

Self Adhesive Dual Lock

Self Adhesive Dual Lock

code MD036
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103
Wall holder for datalogger

Wall holder for datalogger

code LP100
Adapter for CO2 adjustment and calibration of dataloggers COMET

Adapter for CO2 adjustment and calibration of dataloggers COMET

code LP104
AC/DC adapter 230Vac to 5Vdc/2.1 A

AC/DC adapter 230Vac to 5Vdc/2.1 A

code A1879
USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053
SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

code Silex
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205

Monitoring Software

COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Comet Database

Comet Database

code CDB

Software

download-icon Comet Vision Software (2.1.7367.23596 dbapi 19.0)
15.08 MB
download-icon Comet Database One Click Installer (19.0-III)
324.96 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Manuals

download-icon Instruction Manual
2.58 MB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Quick Start Manual
1,023.91 KB

Catalogs

download-icon CATALOG - Dataloggers
3.68 MB
