Economy humidity and temperature transmitter with external interchangeable probe, cable 2 meters, 4-20mA outputs

Cost effective ambient temperature, relative humidity transmitter. Outdoor, indoor use.

The P3116 transmitter with 4-20 mA current outputs is designed to measure temperature and relative humidity of air using the external probe that is part of the device.

The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.

  • code
    P3116-2
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -20 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±1.8 % RH in the range 0 to 90 %RV při 23 °C
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C, external probe -20 to +80 °C
Channels external interchangeable temperature and humidity probe
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 89 x 115 x 40 mm; probe 100 x 18 mm
External probe cable length 2 meters
Weight approx. 150 g
Warranty 3 years

Optional accessories and download

Digital temperature/humidity probe DIGIL/E, ELKA connector

Digital temperature/humidity probe DIGIL/E, ELKA connector

Temperature range: -20 to 80°C
code DIGIL/E

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

sintered bronze sensor protection

sintered bronze sensor protection

code F0000
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
PTFE sensor protection, white

PTFE sensor protection, white

code F5300

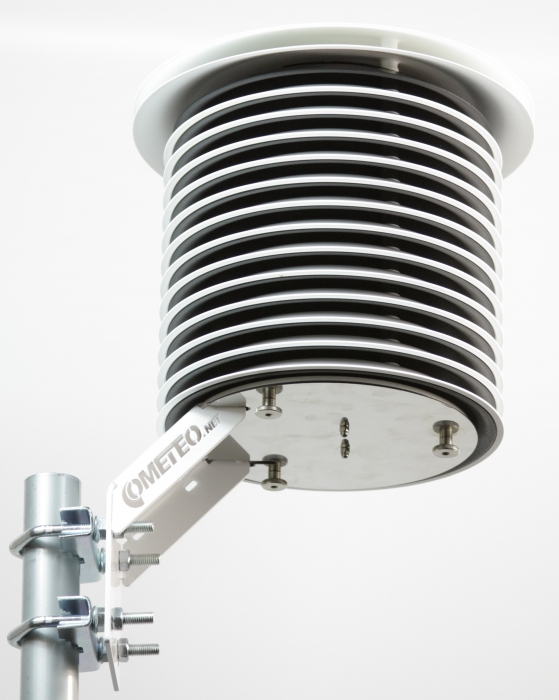

COMETEO Professional Thermometer Screen for Weather Station Sensor

COMETEO Professional Thermometer Screen for Weather Station Sensor

code F8000

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model P3110E
1.50 MB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
474.46 KB
download-icon Declaration of Conformity
103.18 KB

Catalogs

download-icon CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
1.86 MB
download-icon Catalogue Sheets - COMET Economy Sensors
937.38 KB

Related products

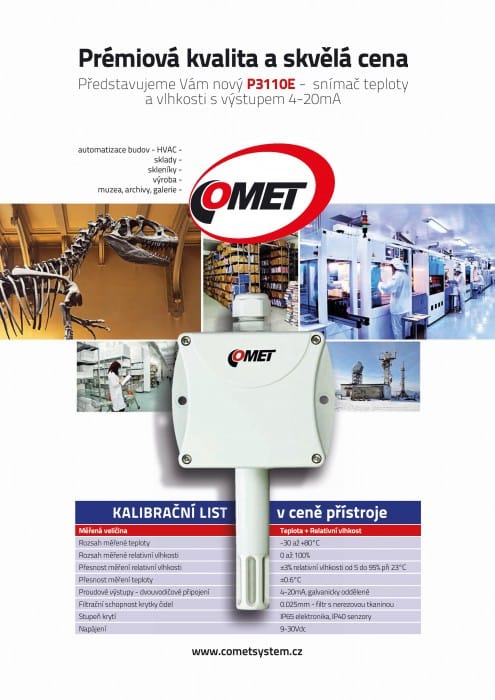

Economy  humidity and temperature transmitter with 4-20mA outputs
