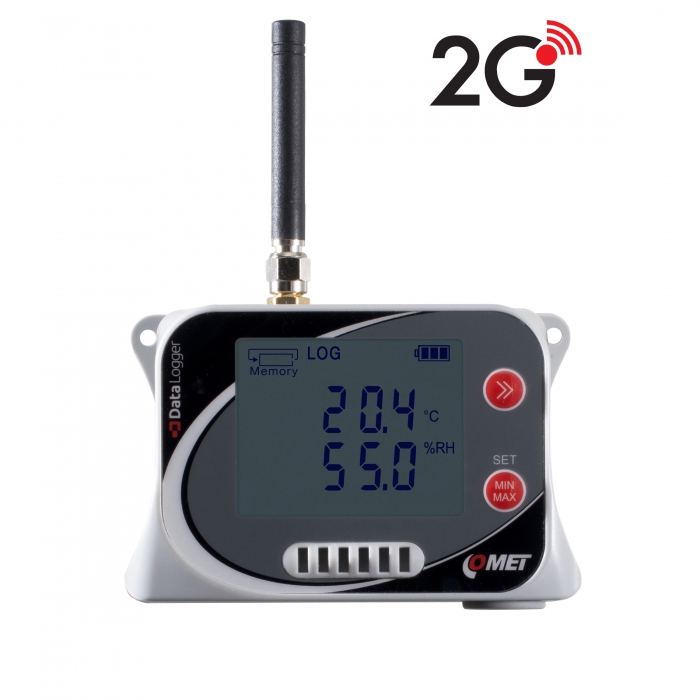

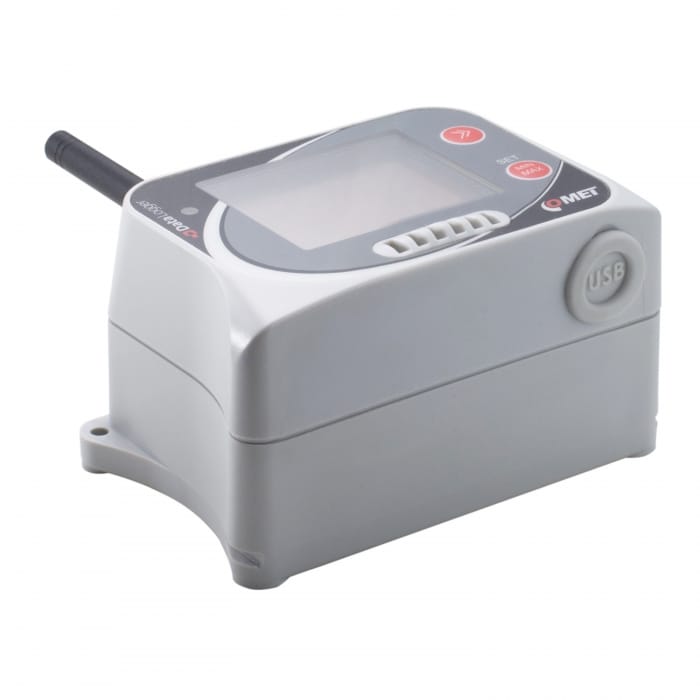

IoT Wireless Temperature and Relative Humidity Datalogger, with built-in 2G modem

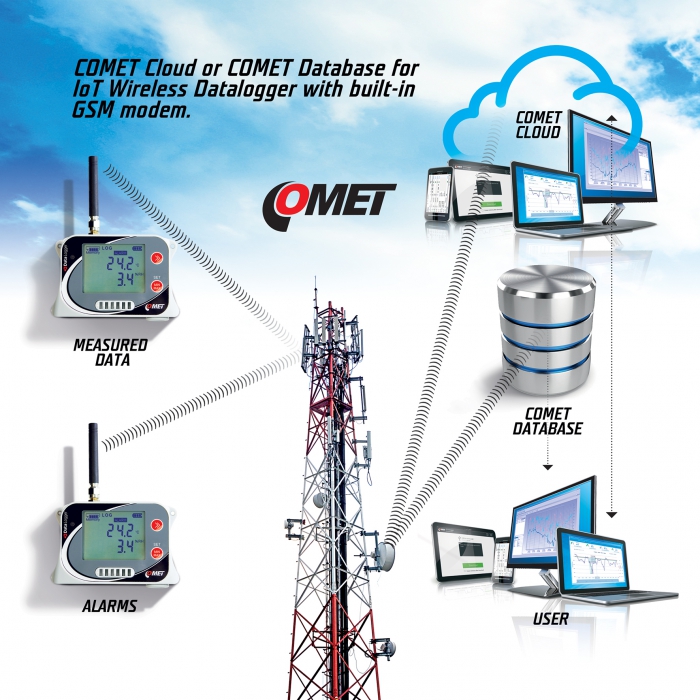

GSM datalogger is designed to record temperature and humidity from built-in sensors. In case of exceeded set limits, SMS and JSON messages can be sent via GPRS data connection. Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system.

It is also possible to set the regular sending of JSON messages to COMET Database, the sending interval is adjustable. Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.

GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U3120M
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -20 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ± 1.8 % RH
Resolution 0.1% RH

DEW POINT

Measuring range -90 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GSM MODEM PARAMETERS

Quad-band 850/900/1800/1900MHz
Compliant to GSM Phase2/2+
GPRS GPRS mobile station class B
Class 4 2W @ 850/900MHz
Class 1 1W @ 1800/1900MHz

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal temperature and humidity sensor
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud from 5 minutes
Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class IP67 electronics; IP30 sensors
Dimensions 61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries) approx. 260 g
Warranty 3 years

Optional accessories and download

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

AC/DC adapter 230Vac to 5Vdc/2.1 A, EU

code A1879eu
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

AC/DC adapter 230Vac to 5Vdc/2.1 A, UK

code A1879uk
AC/DC adapter 230Vac to 5Vdc/2.1 A, US

AC/DC adapter 230Vac to 5Vdc/2.1 A, US

code A1879us
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

code A8205

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

Wall holder for datalogger

Wall holder for datalogger

code LP100
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

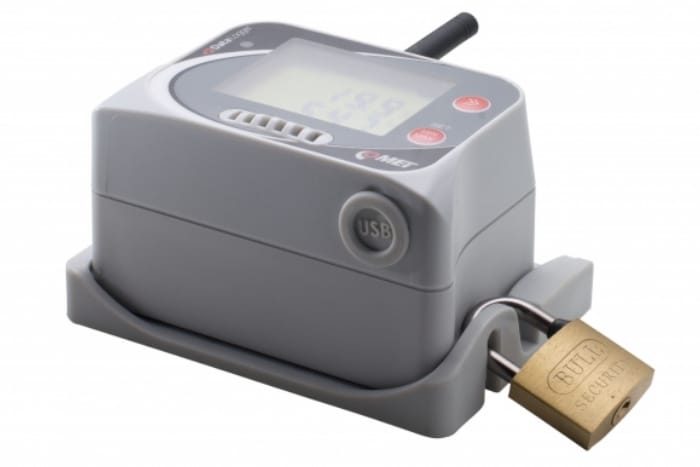

Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces

code LP103

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

IoT ready Flat Rate SIM Card

IoT ready Flat Rate SIM Card

code LP105

Software

download-icon Comet Vision Software (2.3.8935.24346 dbapi 21.1)
16.56 MB
download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.90 MB
download-icon Quick Start Manual
1.02 MB
download-icon Safety Information
335.90 KB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Declaration of Conformity
96.91 KB

Catalogs

download-icon CATALOG - Dataloggers
3.57 MB
download-icon CATALOG - GSM loggers
3.00 MB
download-icon Catalogue Sheets - COMET GSM Data Loggers
2.33 MB
