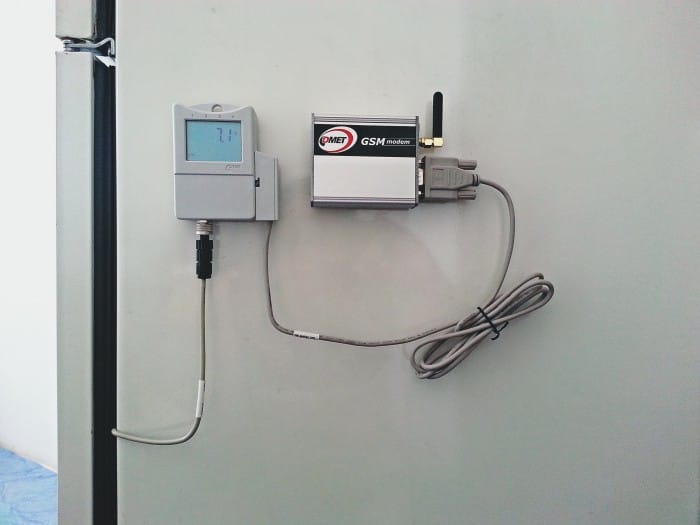

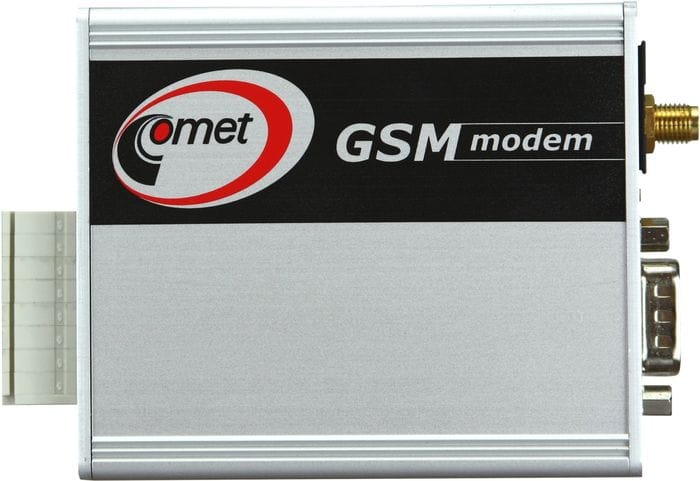

GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families

GSM/GPRS modem with SIM card holder - without accessories.

Modem sends alarm SMS, if buying services SLU302 - M2M allows full communication with data logger via GPRS - download logger configuration.

  • code
    LP040

Technical data

Communication with the device RS232 (connector Canon 9) for the COM adapter
Frequency band 850/900/1800/1900 MHz
Output power Class 4 (+33dBm ±2dB) for EGSM850; Class 4 (+33dBm ±2dB) for EGSM900; Class 1 (+30dBm ±2dB) for GSM1800; Class 1 (+30dBm ±2dB) for GSM1900
SIM card type 1,8V or 3V
GPRS class multislot class 12
Antenna 50 ohm, SMA connector
Supply terminal block removable, WAGO 734, max. size of conductors 1.5 mm2
IP code IP30
Power supply external 9-32V DC, peak input up to 10W
Operating temperature range from -30°C to +65°C
Operating position arbitrary
Device mounting (optional equipment) self-adhesive Dual Lock, wall holder, DIN rail holder
Storage conditions temperature from -40°C to +85°C
Dimensions 105 x 71 x 24mm (without antenna and holders)
Weight cca 180g (without antenna and holders)
Box material anodized aluminum
