Temperature recorder with printer for semi-trailer

Complete solution for temperature record during the transport.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

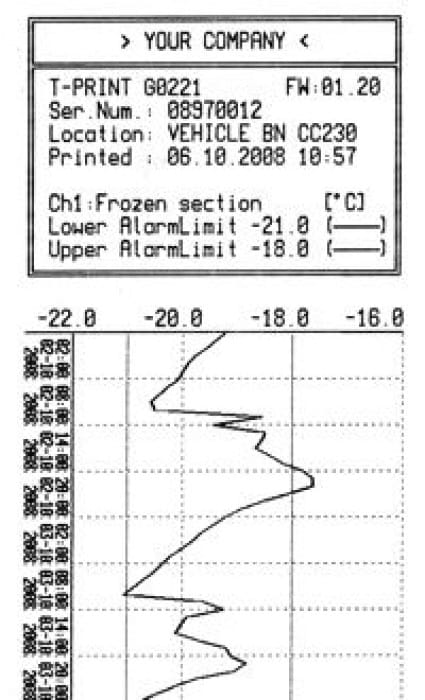

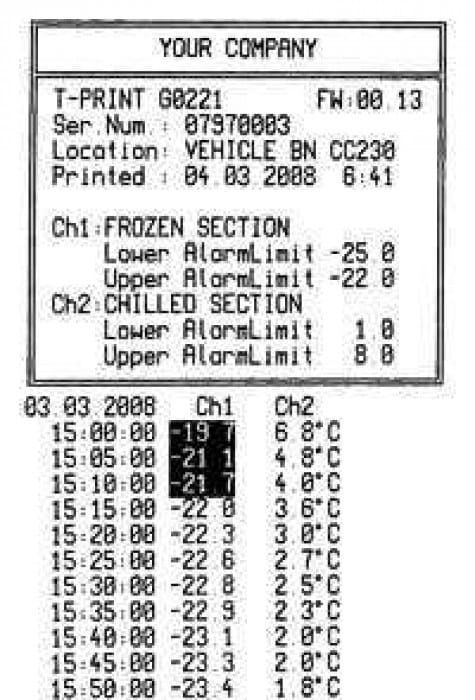

  • print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
  • designed specifically for external installation on semi-trailers
  • easy installation

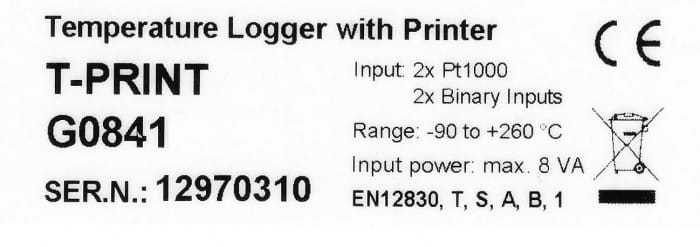

  • code
    G0841
  • Warranty
    3 years

Technical data

Measured value

Temperature
Two-state signal

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +65 °C
Channels 2x external temperature probe, 2x binary input
Memory 1MB (approx. 170 000 hodnot)
Recording interval adjustable from 60 seconds to 60 minutes
Display and alarm refresh each 10 s
Recording mode cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power 9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing/not printing approx. 8 W/approx. 0,1 W
Protection class IP65
Dimensions 250 x 242 x 110 mm
Weight approx. 1650 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/0, without connector

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C
code SN104
Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105
Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108
Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113
Temperature probe 2061-250/0, without connector

Temperature probe 2061-250/0, without connector

Temperature range: -30 to 250°C
code SN147
Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature range: -30 to 250°C
code SN148
Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature range: -30 to 250°C
code SN151
Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature range: -30 to 250°C
code SN156
Temperature probe Pt1000TG7/0, without connector

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C
code SN164
Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165
Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166
Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167
Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168
Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170
Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175
Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178
Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179
Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180
Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181
Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182
Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185
Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186
Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187
Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188
Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199
Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200
Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201
Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202
Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203
Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210
Stick-in probe 2091-250/0, without connector, cable 2 meters

Stick-in probe 2091-250/0, without connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211
Stick-in probe 2091-250/0, without connector, cable 5 meters

Stick-in probe 2091-250/0, without connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212
Stick-in probe 2091-250/0, without connector, cable 10 meters

Stick-in probe 2091-250/0, without connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213
Special probe 2071-80/0, without connector

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C
code SN214
Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232
Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233
Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234
Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239
Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240
Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241
Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 400°C
code SN247
Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature range: -50 to 400°C
code SN248
Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature range: -50 to 400°C
code SN249
Temperature probe Pt1000TG68/0, without connector, cable 1 meter

Temperature probe Pt1000TG68/0, without connector, cable 1 meter

Temperature range: -50 to 200°C
code SN251
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, EU

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, EU

code A1940eu
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, UK

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, UK

code A1940uk
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, US

AC/DC adapter 230Vac to 24Vdc/1A, switch-mode, US

code A1940us

Comet Database

Comet Database

code CDB
Software for COMET TPrints and GSM modems

Software for COMET TPrints and GSM modems

code SWR001

Spare roll of thermopaper for Gxxxx temperature recorders

Spare roll of thermopaper for Gxxxx temperature recorders

code PR033
Mounting set for G0841

Mounting set for G0841

code QTPR022

Software

download-icon SWR001 (Logger 4.1.8.0 dbapi 20.1)
31.80 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
480.52 KB
download-icon Declaration of Conformity
61.28 KB

Catalogs

download-icon CATALOG - Dataloggers
3.58 MB
download-icon CATALOG - Solution for temperature record during transport
2.50 MB

Related products

Comet Database

Comet Database

code CDB
Software for COMET TPrints and GSM modems

Software for COMET TPrints and GSM modems

code SWR001
Temperature recorder for semi-trailer with built-in GSM modem

Temperature recorder for semi-trailer with built-in GSM modem

code G0841M
Temperature recorder with printer

Temperature recorder with printer

code G0221E
Temperature recorder with printer, 2x binary input

Temperature recorder with printer, 2x binary input

code G0241
IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in GSM modem

IoT Wireless Temperature Datalogger for 2 external probes, with two two-state inputs, built-in GSM modem

code U0843M
Temperature data logger for two external Pt1000 probes

Temperature data logger for two external Pt1000 probes

code U0121
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Monitorinig during transport - video
