Multilogger - Low Cost Thermometer with 4 Thermocouple Inputs

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in Comet Vision, where you can create table charts, PDF export, MS EXCEL.
The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

M1200E is a battery operated datalogger that allows to monitor the actual measured values on the device display or to work with historical data in COMET Vision, where you can create table charts, PDF export, MS EXCEL. The device is designed for measuring and recording with 4 inputs for thermocouples K, J, S, B, T, N. Included is traceable calibration certificate in accordance with EN ISO/IEC17025.



  • code
    M1200E
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels 4x external temperature probe
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit
Communication interface USB
Power 3x AA alkaline battery 1.5 V
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Features

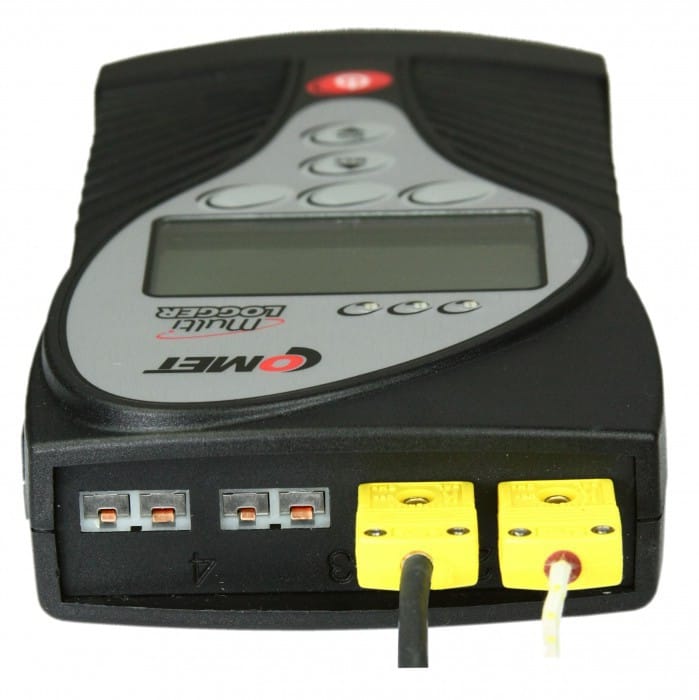

Up to 4 physical Thermocouple Inputs

Multilogger M1200 inputs
  • Themocouple probe K, J, S, B, T, N
  • Direct input of bipolar voltages with range up to -60 to +140 mV
  • Sensors with woltage output (range -60 to +140mV; accuracy ±100 µV or -18 to +18mV; accuracy ±20 µV)

Evaluation of up to 16 variables

Multilogger - LCD detail
Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be the result of inter-channel conversions, e.g. the difference of two connected temperature probes. Multilogger LCD display detail.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger - Power Supply
Multilogger - Power Supply

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure.

Alarm limits and alarm indication

Multilogger - Alarm limits

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), visual (LEDs, LCD)

Communication interfaces

Multilogger - M1200E

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Optional accessories and download

Thermocouple "K" surface probe, CP500

Thermocouple "K" surface probe, CP500

Temperature range: -65 to 500°C
code CP500
Thermocouple "K" stick-in probe, CZ550

Thermocouple "K" stick-in probe, CZ550

Temperature range: -65 to 550°C
code CZ550
Thermocouple "K" stick-in probe, CZ900

Thermocouple "K" stick-in probe, CZ900

Temperature range: -65 to 1000°C
code CZ900
Thermocouple "K" wire probe, GD1250, with connector

Thermocouple "K" wire probe, GD1250, with connector

Temperature range: -65 to 980°C
code GD1250-1
Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Temperature range: -65 to 980°C
code GD1250-2
Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Temperature range: -65 to 980°C
code GD1250-3
Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Temperature range: -65 to 980°C
code GD1250-4
Thermocouple "K" wire probe, GD260, with connector

Thermocouple "K" wire probe, GD260, with connector

Temperature range: -65 to 260°C
code GD260-1
Thermocouple "K" wire probe, GD260, with connector, 2 meters

Thermocouple "K" wire probe, GD260, with connector, 2 meters

Temperature range: -65 to 260°C
code GD260-2
Thermocouple "K" wire probe, GD260, with connector, 3 meters

Thermocouple "K" wire probe, GD260, with connector, 3 meters

Temperature range: -65 to 260°C
code GD260-3
Thermocouple "K" wire probe, GD260, with connector, 4 meters

Thermocouple "K" wire probe, GD260, with connector, 4 meters

Temperature range: -65 to 260°C
code GD260-4
Thermocouple "K" wire probe, GD700, with connector

Thermocouple "K" wire probe, GD700, with connector

Temperature range: -65 to 700°C
code GD700-1
Thermocouple "K" wire probe, GD700, with connector, 2 meters

Thermocouple "K" wire probe, GD700, with connector, 2 meters

Temperature range: -65 to 700°C
code GD700-2
Thermocouple "K" wire probe, GD700, with connector, 3 meters

Thermocouple "K" wire probe, GD700, with connector, 3 meters

Temperature range: -65 to 700°C
code GD700-3
Thermocouple "K" wire probe, GD700, with connector, 4 meters

Thermocouple "K" wire probe, GD700, with connector, 4 meters

Temperature range: -65 to 700°C
code GD700-4
Thermocouple "K" insertion probe, GT1150

Thermocouple "K" insertion probe, GT1150

Temperature range: -50 to 1150°C
code GT1150

Extension cable thermocouple "K"

Extension cable thermocouple "K"

code SNP03
Extension cable thermocouple "K" female connector

Extension cable thermocouple "K" female connector

code SNP03/0
Extension cable thermocouple "K", 2 meters

Extension cable thermocouple "K", 2 meters

code SNP06
Extension cable thermocouple "K" female connector, 2 meters

Extension cable thermocouple "K" female connector, 2 meters

code SNP06/0
Extension cable thermocouple "K", 3 meters

Extension cable thermocouple "K", 3 meters

code SNP07
Extension cable thermocouple "K" female connector, 3 meters

Extension cable thermocouple "K" female connector, 3 meters

code SNP07/0
Extension cable thermocouple "K", 4 meters

Extension cable thermocouple "K", 4 meters

code SNP08
Extension cable thermocouple "K" female connector, 4 meters

Extension cable thermocouple "K" female connector, 4 meters

code SNP08/0
Extension cable thermocouple "K", 5 meters

Extension cable thermocouple "K", 5 meters

code SNP09
Extension cable thermocouple "K" female connector, 5 meters

Extension cable thermocouple "K" female connector, 5 meters

code SNP09/0
Extension cable thermocouple "K", 6 meters

Extension cable thermocouple "K", 6 meters

code SNP10
Extension cable thermocouple "K" female connector, 6 meters

Extension cable thermocouple "K" female connector, 6 meters

code SNP10/0
Extension cable thermocouple "K", 7 meters

Extension cable thermocouple "K", 7 meters

code SNP11
Extension cable thermocouple "K" female connector, 7 meters

Extension cable thermocouple "K" female connector, 7 meters

code SNP11/0
Extension cable thermocouple "K", 8 meters

Extension cable thermocouple "K", 8 meters

code SNP12
Extension cable thermocouple "K" female connector, 8 meters

Extension cable thermocouple "K" female connector, 8 meters

code SNP12/0
Extension cable thermocouple "K", 9 meters

Extension cable thermocouple "K", 9 meters

code SNP13
Extension cable thermocouple "K" female connector, 9 meters

Extension cable thermocouple "K" female connector, 9 meters

code SNP13/0
Extension cable thermocouple "K", 10 meters

Extension cable thermocouple "K", 10 meters

code SNP14
Extension cable thermocouple "K" female connector, 10 meters

Extension cable thermocouple "K" female connector, 10 meters

code SNP14/0
Extension cable thermocouple "K", 11 meters

Extension cable thermocouple "K", 11 meters

code SNP15
Extension cable thermocouple "K" female connector, 11 meters

Extension cable thermocouple "K" female connector, 11 meters

code SNP15/0
Extension cable thermocouple "K", 12 meters

Extension cable thermocouple "K", 12 meters

code SNP16
Extension cable thermocouple "K" female connector, 12 meters

Extension cable thermocouple "K" female connector, 12 meters

code SNP16/0
Extension cable thermocouple "K", 13 meters

Extension cable thermocouple "K", 13 meters

code SNP17
Extension cable thermocouple "K" female connector, 13 meters

Extension cable thermocouple "K" female connector, 13 meters

code SNP17/0
Extension cable thermocouple "K", 14 meters

Extension cable thermocouple "K", 14 meters

code SNP18
Extension cable thermocouple "K" female connector, 14 meters

Extension cable thermocouple "K" female connector, 14 meters

code SNP18/0
Extension cable thermocouple "K", 15 meters

Extension cable thermocouple "K", 15 meters

code SNP19
Extension cable thermocouple "K" female connector, 15 meters

Extension cable thermocouple "K" female connector, 15 meters

code SNP19/0

Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003

COMET Database

COMET Database

code CDB
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV

External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026

Software

download-icon Comet Vision Software (2.2.8322-29697 dbapi 20.2)
15.72 MB
download-icon Comet Database One Click Installer (20.2-I)
327.96 MB
download-icon Database Viewer 3.18.0.0 dbapi 20.2
24.26 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
1.35 MB
download-icon Quick Start Manual
1,009.40 KB

Related products

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

code M1200
Sixteen Channel Data Logger with Alarms

Sixteen Channel Data Logger with Alarms

code MS6D
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

code M1220
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

code M1321
Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

code M1322
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

code M1300
Multilogger - thermo-hygro-CO2 meter with four inputs, up to 10 000ppm CO2

Multilogger - thermo-hygro-CO2 meter with four inputs, up to 10 000ppm CO2

code M1440
