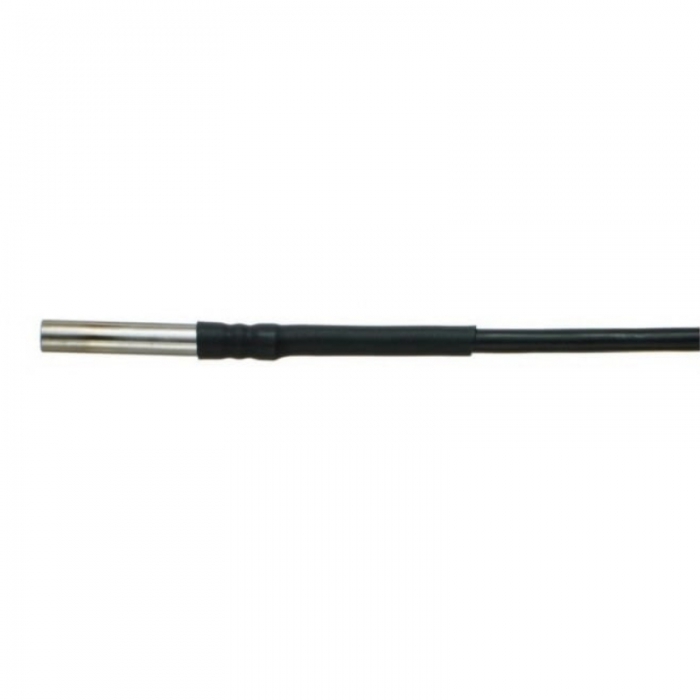

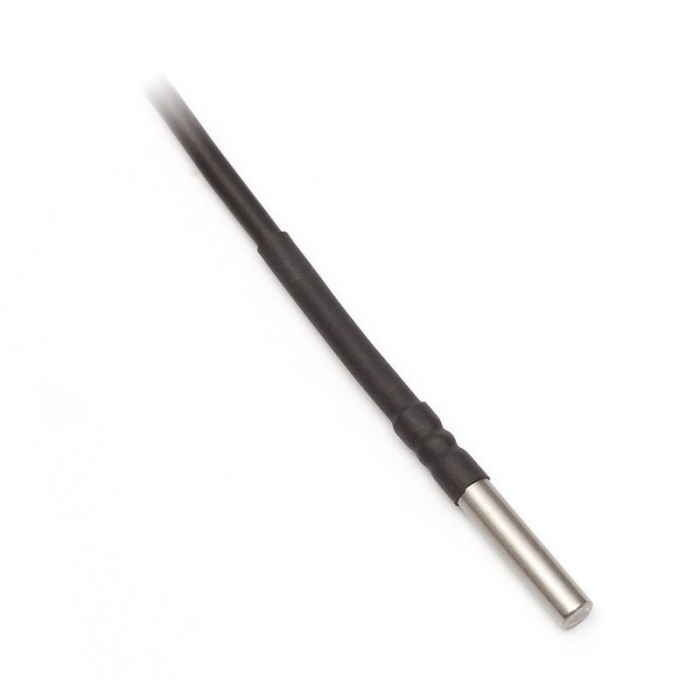

Temperature probe Pt1000TG8/C, CINCH connector, cable 5 meters

Multi-purpose watertight IP67 temperature probe -80 to +200°C.

The probe is designed to measure the temperature of gaseous and liquid substances. Used type of lead-in cable has silicone insulation and shielding.

The probe is designed for universal use, the method of use must be chosen with regard to the temperature and chemical resistance of thecase and lead-in cable.

  • code

Technical data

Measured value



Measuring range -50 to +200 °C
-80 to +200 °C (for static position of lead-in cable)
Accuracy ± (0.15 + 0.002 t) at °C
Accuracy class A
Time response t0.5 <7 s (in flowing water at > 0.2 m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
Type of sensing element Pt1000
Temperature coefficient 3850 ppm / °C


Wire connection 2-wire connection
Material of the case stainless steel DIN 1.4301
Dimensions of the case length 60 mm;
diameter 5.7 ± 0.1 mm
Lead-in cable silicone shielded
Length of lead-in cable 5 meters
Connector CINCH
IP protection IP67
Warranty 30 months
