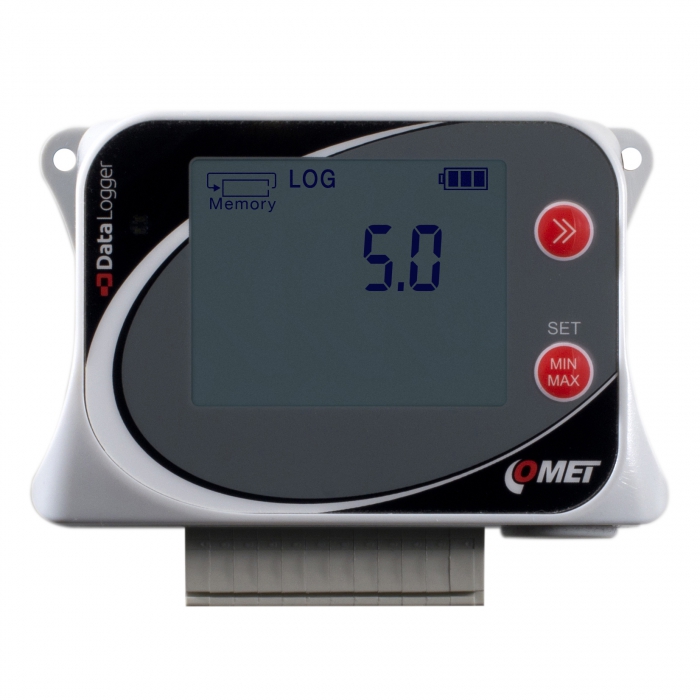

Data logger for 3 voltage inputs 0-10V and 1 two-state input

Datalogger is designed to record 3 voltage inputs and 1 binary input.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U5841
  • Warranty
    3 years

Technical data

Measured value

Voltage
Two-state signal

VOLTAGE INPUT

Measuring range 0 to 10 V DC
Accuracy ±10 mV
Input resistance approx. 130 kΩ

BINARY INPUT

Parameters of the voltage contact „L“ level input voltage:< 0,8 V(*);
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Parameters of the voltage-free contact Contact resistance in „switched-on“ state:< 10 kOhm;
Contact resistance in the „switched-off“ state:> 2 MOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 3x voltage input, 1x binary input
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power Lithium battery 3.6V, size AA
Protection class IP20
Dimensions 61 x 93 x 32 mm
Weight (including batteries) approx. 120 g
Warranty 3 years

Optional accessories and download

Lithium battery 3,6V/AA

Lithium battery 3,6V/AA

code A4203

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053
SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

code Silex

Wall holder for datalogger

Wall holder for datalogger

code LP100
Holder for mounting the Datalogger "U" on magnetic surfaces

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102

COMET Database

COMET Database

code CDB
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV

Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
Power detector SP008

Power detector SP008

code SP008

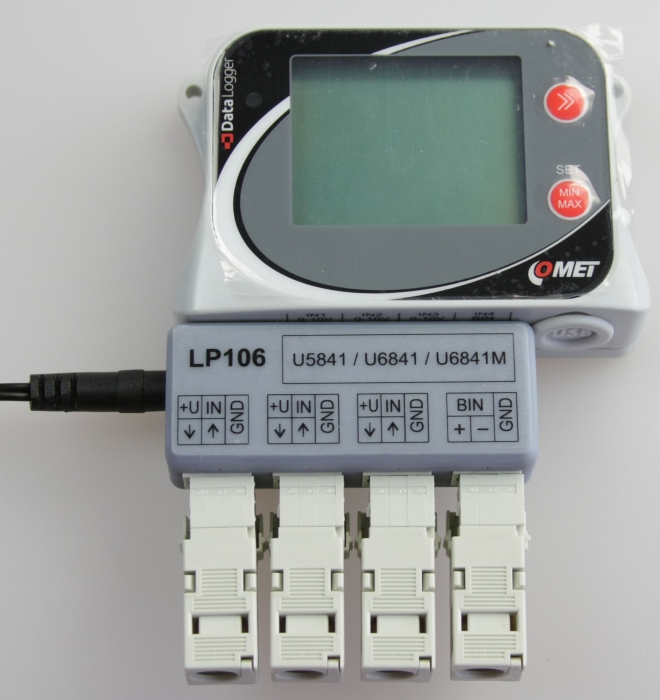

Connection adapter for Ux841 dataloggers
