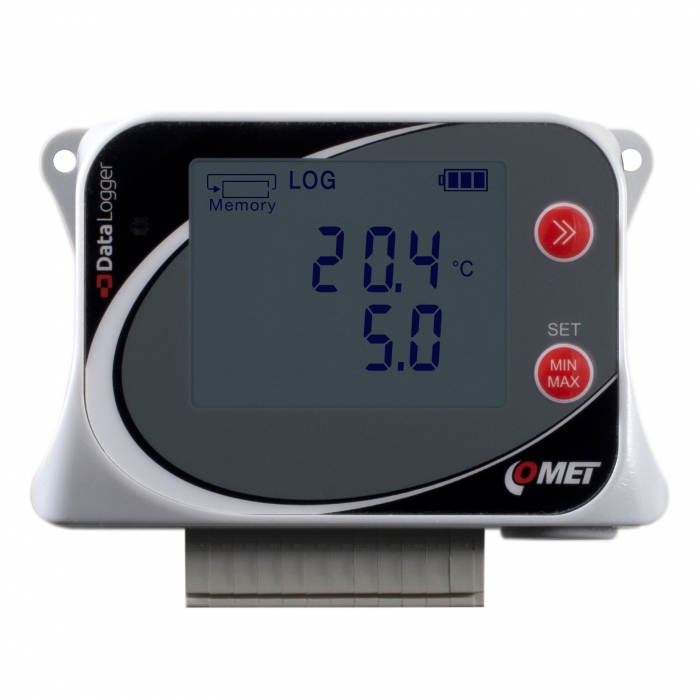

Data logger for 2 voltage inputs 0-10V and 2 external temperature probes

Datalogger is designed to record 2 voltage inputs and 2 temperature inputs Pt1000.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.



  • code
    U0541
  • Warranty
    3 years

Technical data

Measured value

Temperature
Voltage

VOLTAGE INPUT

Measuring range 0 to 10 V DC
Accuracy ±10 mV
Input resistance approx. 130 kΩ

TEMPERATURE INPUT - external probe Pt1000

Measuring range -200 to +260 °C
Accuracy ±0.2°C; ±0.2 % from reading from +100 to +260 °C
Resolution 0.1°C

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 2x voltage input, 2x temperature input Pt1000
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power Lithium battery 3.6V, size AA
Protection class IP20
Dimensions 61 x 93 x 32 mm
Weight (including batteries) approx. 120 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/0, without connector

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C
code SN104
Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature probe Pt1000TG8/0, without connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105
Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature probe Pt1000TG8/0, without connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108
Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature probe Pt1000TG8/0, without connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113
Temperature probe 2061-250/0, without connector

Temperature probe 2061-250/0, without connector

Temperature range: -30 to 250°C
code SN147
Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature probe 2061-250/0, without connector, cable 2 meters

Temperature range: -30 to 250°C
code SN148
Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature probe 2061-250/0, without connector, cable 5 meters

Temperature range: -30 to 250°C
code SN151
Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature probe 2061-250/0, without connector, cable 10 meters

Temperature range: -30 to 250°C
code SN156
Temperature probe Pt1000TG7/0, without connector

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C
code SN164
Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature probe Pt1000TG7/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165
Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature probe Pt1000TG7/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166
Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature probe Pt1000TG7/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167
Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168
Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170
Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175
Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178
Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature probe 2061-200/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179
Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature probe 2061-200/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180
Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature probe 2061-200/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181
Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature probe PTS350A-5/0, without connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182
Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature probe PTS350A-10/0, without connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185
Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature probe Pt1000TGL40/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186
Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature probe Pt1000TGL40/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187
Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature probe Pt1000TGL40/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188
Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199
Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature probe Pt1000TR160/0, without connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200
Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature probe Pt1000TR160/0, without connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201
Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature probe Pt1000TR160/0, without connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202
Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature probe Pt1000TR160/0, without connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203
Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature probe Pt1000TR160/0, without connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210
Stick-in probe 2091-250/0, without connector, cable 2 meters

Stick-in probe 2091-250/0, without connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211
Stick-in probe 2091-250/0, without connector, cable 5 meters

Stick-in probe 2091-250/0, without connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212
Stick-in probe 2091-250/0, without connector, cable 10 meters

Stick-in probe 2091-250/0, without connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213
Special probe 2071-80/0, without connector

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C
code SN214
Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature probe Pt1000TG68/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232
Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature probe Pt1000TG68/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233
Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature probe Pt1000TG68/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234
Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239
Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature probe Pt1000TR125/0, without connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240
Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature probe Pt1000TR125/0, without connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241
Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Cryogenic temperature probe Pt1000TR125/0, without connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature probe Pt1000TR050S/0, without connector, cable 2 meters

Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature probe Pt1000TR050S/0, without connector, cable 5 meters

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature probe Pt1000TR050S/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267
Temperature probe Pt1000TR050M/0, without connector, cable 1 meter

Temperature probe Pt1000TR050M/0, without connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270
Temperature probe Pt1000TR050M/0, without connector, cable 2 meters

Temperature probe Pt1000TR050M/0, without connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271
Temperature probe Pt1000TR050M/0, without connector, cable 5 meters

Temperature probe Pt1000TR050M/0, without connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272
Temperature probe Pt1000TR050M/0, without connector, cable 10 meters

Temperature probe Pt1000TR050M/0, without connector, cable 10 meters

Temperature range: -50 to 400°C
code SN273

Software

download-icon Comet Vision Software (2.2.8322-29697 dbapi 20.2)
15.72 MB
download-icon Comet Database One Click Installer (20.2-I)
327.96 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
2.92 MB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Quick Start Manual
1.11 MB
download-icon Declaration of Conformity
95.35 KB

Catalogs

download-icon CATALOG - Dataloggers
3.58 MB

Related products

COMET Database

COMET Database

code CDB
IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem

IoT Wireless Temperature Datalogger for 4 external probes, with built-in GSM modem

code U0141M
Temperature data logger for two external Pt1000 probes

Temperature data logger for two external Pt1000 probes

code U0121
Temperature and humidity data logger with built-in sensors

Temperature and humidity data logger with built-in sensors

code U3120
Temperature data logger with built-in sensor

Temperature data logger with built-in sensor

code U0110

U0541 - video
