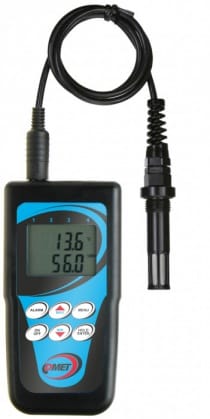

Thermo-hygrometer for compressed air measurement, cable 4 meters

Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity for compressed air up to 25 bars with 4 meters cable into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.

Data logger is connected to the PC through USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.

Simultaneous reading of temperature and relative humidity, dew point temperature reading selectable, external temperature-humidity probe with 4 meters cable. Probe diameter is 18mm, length 135mm.



  • code
    D3121P-4
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -50 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature electronics -10 to +60 °C, external probe -30 to +105 °C
Channels 1x connectable temperature+humidity probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20 electronics, IP40 sensors
Dimensions (without connectors) 191 x 71 x 27 mm; length/diameter of external probe 135/18 mm
External probe cable length 4 meters
Weight (including batteries) approx. 150 g
Warranty 3 years

Optional accessories and download
