COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Software for COMET Dataloggers Sxxxx, Rxxxx, UxxxxM, Commeters Dxxxx and Multiloggers Mxxxx.

Free licensed software for simple device management and analysis of measured data allows

  • device settings
  • data download
  • analysis of critical situations
  • presentation of measured data
  • reports print out

COMET Vision is the main component for running COMET DATABASE with dataloggers, Commeters and Multiloggers

COMET Vision is compatible to

  • COMET dataloggers (except TPrints)
  • Commeter "D"

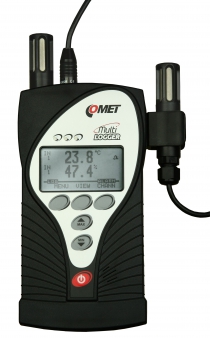

  • Multilogger
  • Sigfox sensors



  • code
    CV

Technical data

Maximum number of connected devices unlimited

CONFIGURATION

Download, edit and upload back into the device YES
Import from/Export to the file YES

RECORD

Download YES
Erase  YES
Table YES
Charts YES
Statistics YES
Printing (table, chart, statistics) YES
Export (pdf, xls, csv) YES
Reports YES

DISPLAY

Dashboard YES
Charts YES
Alarm visualization YES
Custom display YES

AUTODOWNLOAD

Data download according to schedule YES
Individual plan from each device YES
Automatic export to csv file YES

COMET DATABASE

Export of data to the Comet Database YES
Bulk export of data to the Comet Database YES

Features

COMET Vision program is designed for communication with COMET Dataloggers Sxxxx, Rxxxx and Multiloggers Mxxxx, read out the configuration of the device and setting up the parameters.
It also allows to read out the data from the device in order to get the measured values.
For the temperature and humidity devices is possible to select one counted value (dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy).

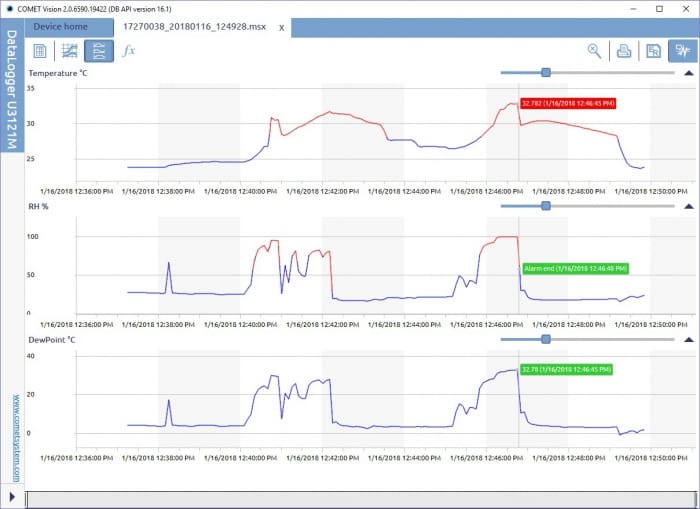

Data can be viewed and printed as table or graph. It it also possible to export the data to DBF or TXT files. You can change the axis and select any time range to view or print out the data. It is allowed to zoom the graph, modify the drawing width and the its color. It is also possible to separate the quantities from each other and print some of them or all of them separately.

Minimum hardware and software requirements to install the COMET software

  • Operating System: Windows 7 and later, or Windows Server 2008 R2 and later
  • Processor speed: 1.4GHz
  • Memory: 1GB RAM
