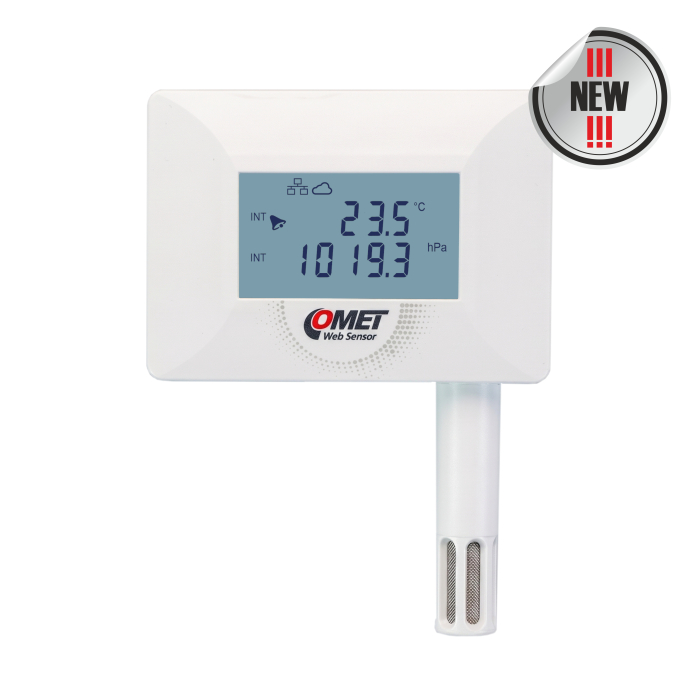

Compact Temperature, Humidity, and Barometric Pressure Sensor, Ethernet Output and PoE

The TA7610 is a universal Ethernet sensor combining temperature, humidity, and atmospheric pressure measurement in one compact device.

Thanks to the integrated pressure sensor, it is also suitable for applications where it is necessary to monitor changes in barometric pressure.

A clear backlit LCD display, multi-level alarm signaling, and PoE support make the TA7610 an ideal solution for professional environmental monitoring.

This 'all-in-one' device is intended for demanding applications where it is necessary to monitor complete air parameters, such as in laboratories, clean rooms, or other technical and climate applications.

Main Benefits:

Temperature, humidity, and pressure measurement in one device
High accuracy ±0.4 °C and long-term stability
Backlit LCD display, acoustic and LED alarm signaling
Power supply 5–24 V or PoE
Integrated backup memory
Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
Integrated detachable bracket for easy installation

code

TA7610
Warranty

3 years

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -30 to +60 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RV

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RV

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5 °C at ambient temperature T < 25 °C and RH > 30 %

Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR

Measuring range 600 to 1100 hPa

Accuracy ±(1.3 hPa + 0.06% of configured output range) at 23 °C, from 800 to 1100 hPa

Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C

Measurement channels integrated temperature, humidity and atmospheric pressure sensors

Calculated values dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy, humidex, heat index

Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)

Supported atmospheric pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2

Temperature compensation of the humidity sensor across the entire temperature range

Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC

Network interface Ethernet

IP support IPv4, IPv6

Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3

Alarm protocols Email (SMTP), Syslog

Measurement interval 2 s

Ingress protection (IP rating) IP30 (electronics), IP40 (sensors)

Dimensions 116 x 85 x 42 mm; stem 77 x 18 mm

Weight 230 g

Warranty 3 years

Premium Ethernet Sensors with Display and Local Signaling

The TAx6xx series represents a new generation of Web Sensor 2.0 premium sensors. They combine precise measurement, modern network communication, and local monitoring via an LCD display, LED signaling, and an acoustic alarm.

Ideal solution for:

server rooms and data centers
laboratories and healthcare
industrial facilities
offices, schools, and public buildings
cleanrooms

Why choose TAx6xx?

Local monitoring without a PC

Backlit segmented LCD display (4 brightness levels)
Display of values, alarms, and IP address
Three-color LED signaling (green / yellow / red)
Acoustic alarm with local and remote mute options

Advanced next-generation alarms

2 adjustable alarms per channel (no direction limits)
System alarms (measurement, time, or configuration error…)
Signaling via: o LED o acoustics o e-mail (TLS / STARTTLS) o SNMP trap o Syslog

Calculations and advanced analytics

Dew point
Absolute humidity
Specific humidity
Mixing ratio
Enthalpy
Humidex and Heat Index
Inter-channel calculations (e.g., temperature difference, CO₂ difference)

Maximum connectivity and security

HTTP / HTTPS (custom certificate upload)
SNMP v1 / v2c / v3 (SHA, AES128)
Modbus TCP (including alarm mute and limit changes)
IPv4 + IPv6
COMET Cloud / COMET Database
TLS communication
4 user accounts, 3 permission levels
Firmware updates via web

Power without compromises

5–24 V DC
PoE (IEEE 802.3af)
RTC with battery backup
Backed-up memory (>2600 records)

Typical applications

Data centers

Monitoring of temperature, humidity, and CO₂ with instant LED indication.
Laboratories: High-precision Pt1000 inputs, cable compensation, alarms.
Schools and offices: CO₂ air quality "traffic light" for ventilation control.
Industry: Durable solution with PoE and SCADA integration.

The new platform brings:

new compact design
removable bracket for easy mounting
unified firmware
enhanced cybersecurity
RTC with battery
advanced alarm system
