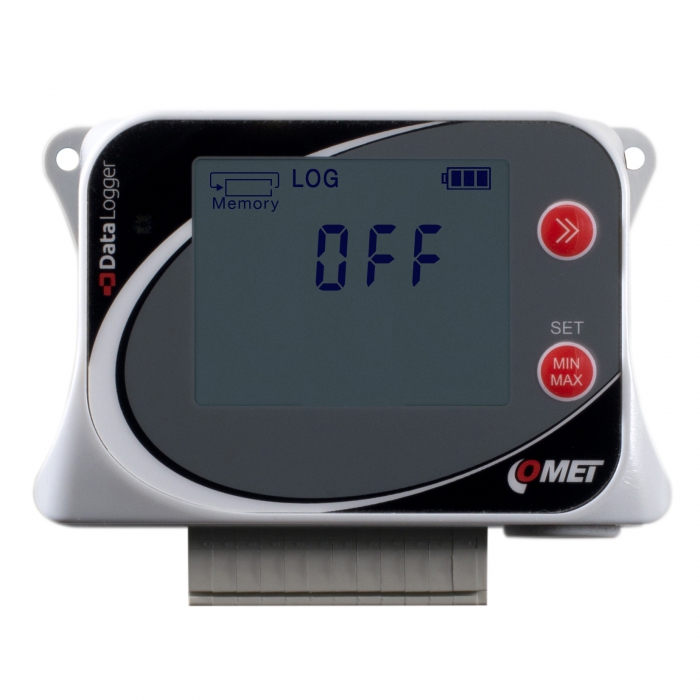

Four channel data logger with pulse and two-state inputs
Data logger is designed to record from four binary inputs or from two pulse and two binary inputs.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
Datalogger inputs can be set up for four binary inputs or two binary inputs and two pulse counters.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Included in delivery:
- U7844
- Manual
- Traceable calibration certificate
- Technical support at discussion forum
- FREE analytical software COMET Vision
-
codeU7844
-
Warranty3 years
Technical data
Measured value
Two-state signal
Pulses
BINARY INPUT
Parameters of the voltage contact
„L“ level input voltage:< 0,4 V(*);
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Parameters of the voltage-free contact
Contact resistance in „switched-on“ state:< 10 kOhm;
Contact resistance in the „switched-off“ state:> 300 kOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
Contact resistance in the „switched-off“ state:> 300 kOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
COUNTER INPUT
Counter parameters
Range 24 bits (16 777 215), possibility of letting the counter overflow
Maximum pulse frequency
configured for voltage input - max. 5kHz
configured for a voltage-free or open-collector transistor - max. 200Hz
configured for a voltage-free or open-collector transistor - max. 200Hz
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
Channels
4x binary input nebo 2x binary input a 2x counter
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval
adjustable from 1 s to 24 h
Display and alarm refresh
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
Lithium battery 3.6V, size AA
Protection class
IP20
Dimensions
61 x 93 x 32 mm
Weight (including batteries)
approx. 120 g
Warranty
3 years
