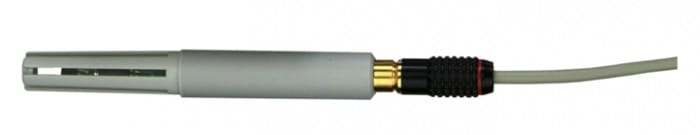

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

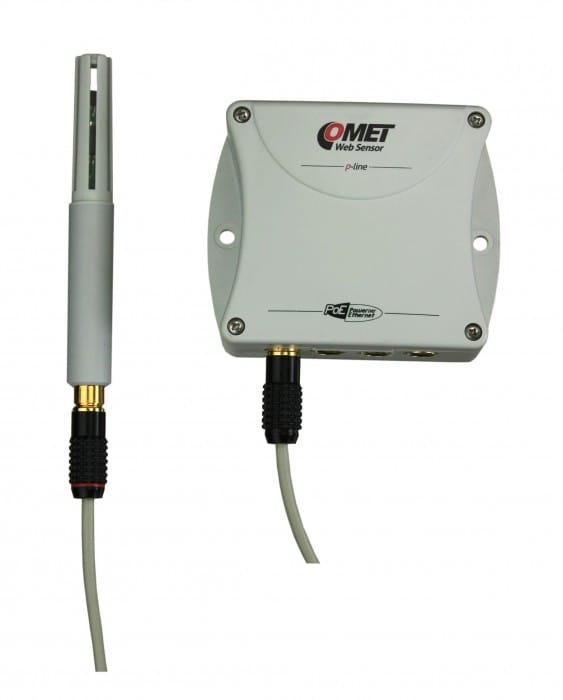

Digital humidity-temperature probe for P8xx1 Web Sensor with CINCH connector.
Optionally with cable length 1, 2, 5 or 10 meters.
-
codeDSRH/C
Product variants
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
0 to +50 °C
Accuracy
± 0.5 °C
RELATIVE HUMIDITY SENSOR
Measuring range
10 to 90 %RV
Accuracy
3.5 %RV in range 10 to 90 %RV at 25 °C
GENERAL TECHNICAL DATA

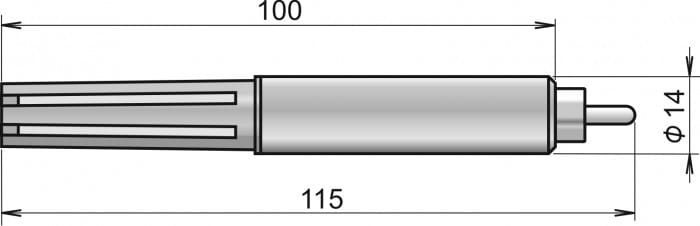

Dimensions of the case
length 100mm;
diameter 14 mm
diameter 14 mm
Connector
CINCH
IP protection
IP20
Warranty
3 years
Optional accessories and download
Extension cable for DSRH/C probe
code
SP010-1
Extension cable for DSRH/C probe, 10 meters
code
SP010-10
Extension cable for DSRH/C probe, 2 meters
code
SP010-2
Extension cable for DSRH/C probe, 5 meters
code
SP010-5
Manuals
Instruction Manual / Návod k použití
Declaration of Conformity
