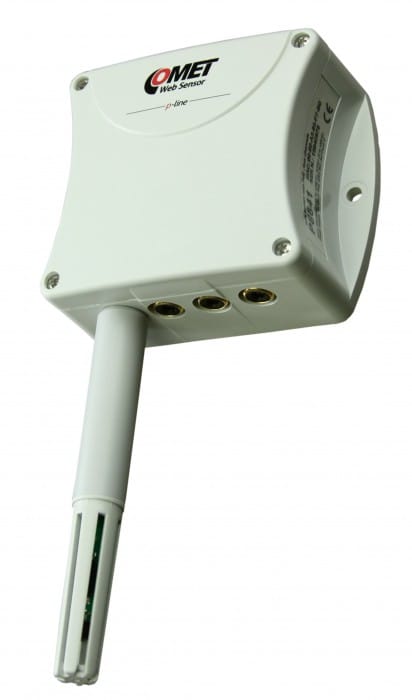

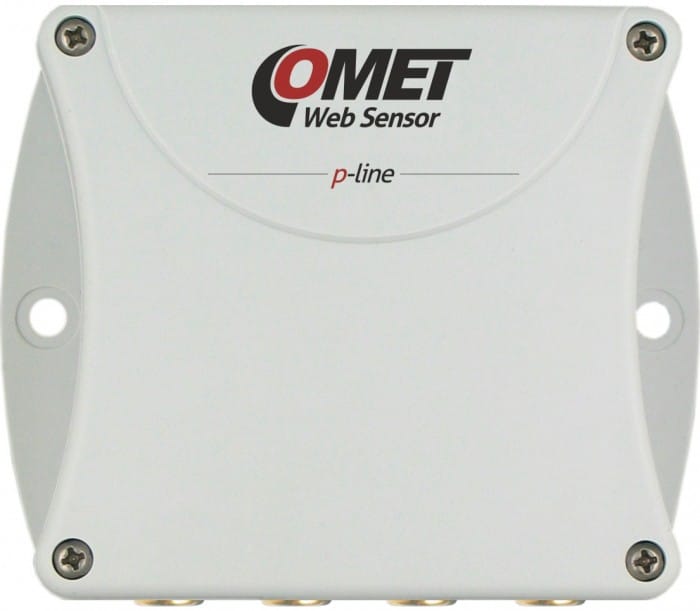

Web Sensor - four channels remote thermometer hygrometer

Four channel p-line Web Sensor. Temperature and humidity + temperature probes are supported. Remote alarm.

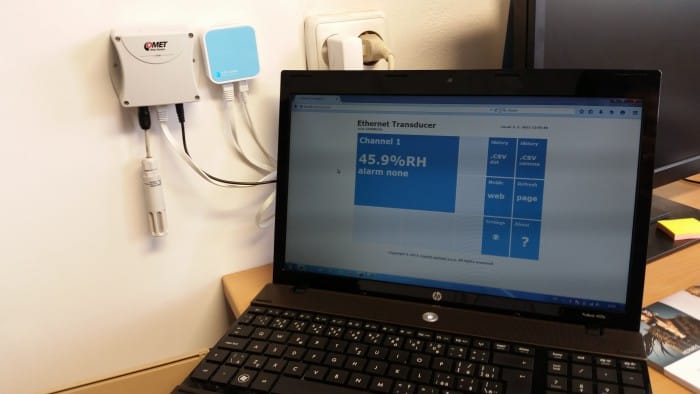

WiFi Router Easy wireless communication using Web Sensor and optional  Wireless TP-LINK router.







  • code
    P8541
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 4x external temperature probe or 4x external temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 5 Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 135 g
Warranty 3 years

Optional accessories and download

Temperature probes

Digital temperature probe DSTGL40/C, CINCH connector

Digital temperature probe DSTGL40/C, CINCH connector

Temperature range: -30 to 80°C
code SN189C
Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN190C
Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN191C
Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN192C
Digital temperature probe DSTG8/C, CINCH connector

Digital temperature probe DSTG8/C, CINCH connector

Temperature range: -50 to 125°C
code SN228C
Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Temperature range: -50 to 125°C
code SN229C
Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Temperature range: -50 to 125°C
code SN230C
Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Temperature range: -50 to 125°C
code SN231C
Digital temperature probe DSTR162/C, CINCH connector

Digital temperature probe DSTR162/C, CINCH connector

Temperature range: -30 to 80°C
code SN215C
Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN216C
Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN217C
Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN218C
Temperature probe for p-line Web Sensor

Temperature probe for p-line Web Sensor

code DST/C

Relative humidity probes

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Temperature range: 0 to 50°C
code DSRH/C
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Temperature range: 0 to 50°C
code DSRH01
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Temperature range: 0 to 50°C
code DSRH02
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Temperature range: 0 to 50°C
code DSRH05

Other accessories

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8100
AC/DC adapter 230Vac to 5Vdc/2.1A

AC/DC adapter 230Vac to 5Vdc/2.1A

code A1825

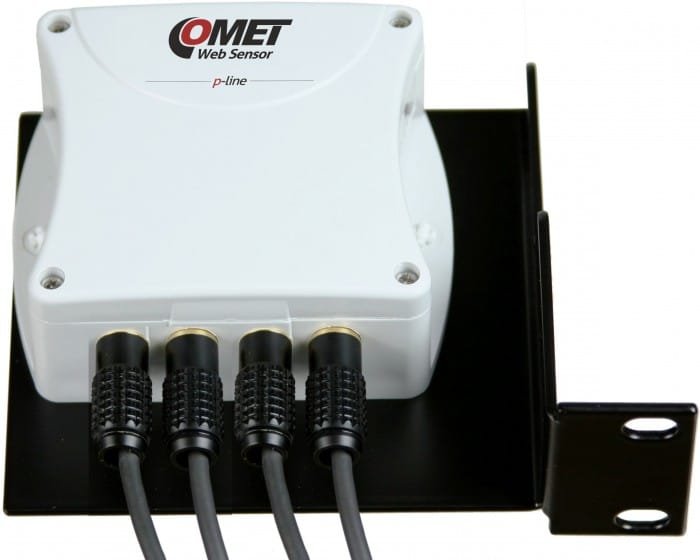

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI
KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

Monitoring software

Comet Database

Comet Database

code CDB
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Software

download-icon Comet Database One Click Installer (19.0-III)
324.96 MB
download-icon Database Viewer 3.12.0.0 dbapi 19.0
22.09 MB
download-icon TSensor (3-3-6-0)
2.70 MB
download-icon Sensor Reader (2-0-6-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon Virtual Channels Unlock for P8xxx
703.00 KB

Manuals

download-icon Instruction Manual
1.46 MB
download-icon Quick Start Manual
821.54 KB
download-icon Declaration of Conformity
100.59 KB
download-icon MIB
540.52 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
6.98 MB
download-icon DATASHEET - WebSensor with Ethernet output
3.62 MB
