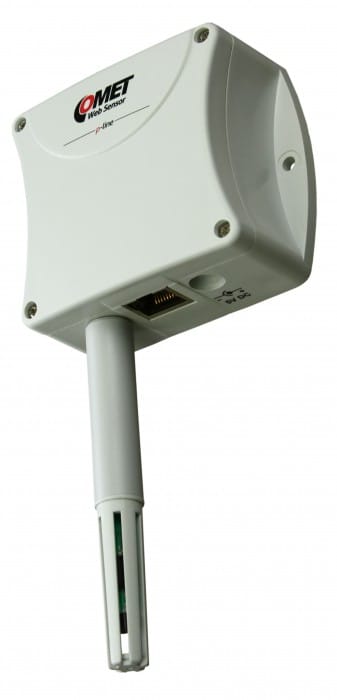

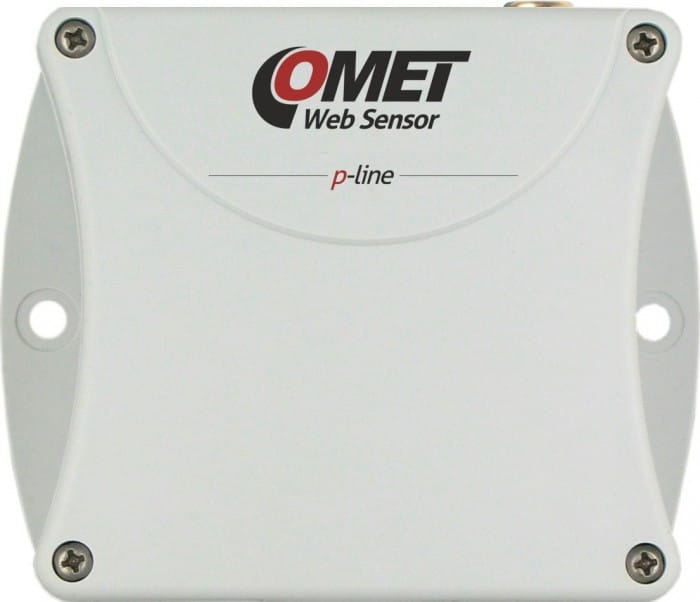

Web Sensor - one channel remote thermometer hygrometer

One channel p-line Web Sensor. Temperature or humidity + temperature probe is supported. Remote alarm.

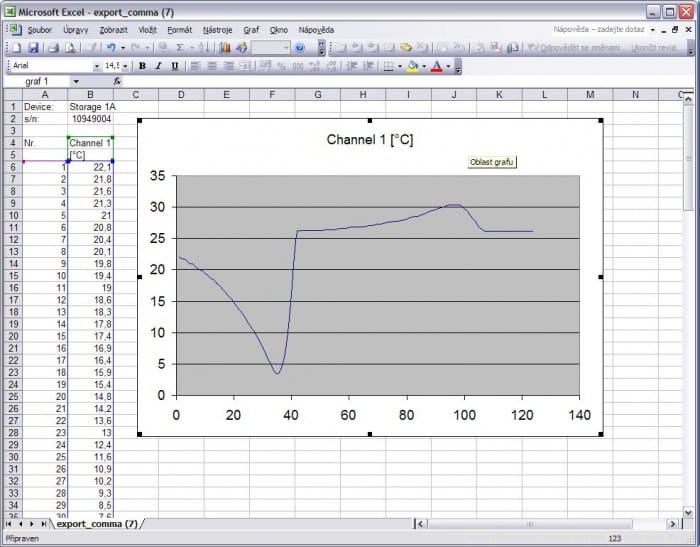

Processing and analysis of measured data:

  • code
    P8511
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 5 Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Optional accessories and download

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

code DST/C
Digital temperature probe DSTGL40/C, CINCH connector

Digital temperature probe DSTGL40/C, CINCH connector

Temperature range: -30 to 80°C
code SN189C
Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN190C
Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN191C
Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN192C
Digital temperature probe DSTR162/C, CINCH connector

Digital temperature probe DSTR162/C, CINCH connector

Temperature range: -30 to 80°C
code SN215C
Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN216C
Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN217C
Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN218C
Digital temperature probe DSTG8/C, CINCH connector

Digital temperature probe DSTG8/C, CINCH connector

Temperature range: -50 to 125°C
code SN228C
Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Temperature range: -50 to 125°C
code SN229C
Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Temperature range: -50 to 125°C
code SN230C
Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Temperature range: -50 to 125°C
code SN231C

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Temperature range: 0 to 50°C
code DSRH/C
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Temperature range: 0 to 50°C
code DSRH01
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Temperature range: 0 to 50°C
code DSRH02
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Temperature range: 0 to 50°C
code DSRH05

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W
TL-POE10R - PoE splitter

TL-POE10R - PoE splitter

code TL-POE
300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

Comet Database

Comet Database

code CDB
COMET Cloud

COMET Cloud

code cloud
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Software

download-icon Comet Database One Click Installer (20.1-V)
327.91 MB
download-icon Database Viewer 3.17.0.0 dbapi 20.1
24.26 MB
download-icon TSensor (3-4-2-0)
2.72 MB
download-icon Sensor Reader (2-0-6-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
1.46 MB
download-icon Quick Start Manual
598.26 KB
download-icon Declaration of Conformity
60.77 KB
download-icon COMET Cloud security
284.19 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
572.90 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
6.98 MB
download-icon DATASHEET - WebSensor with Ethernet output
3.62 MB
