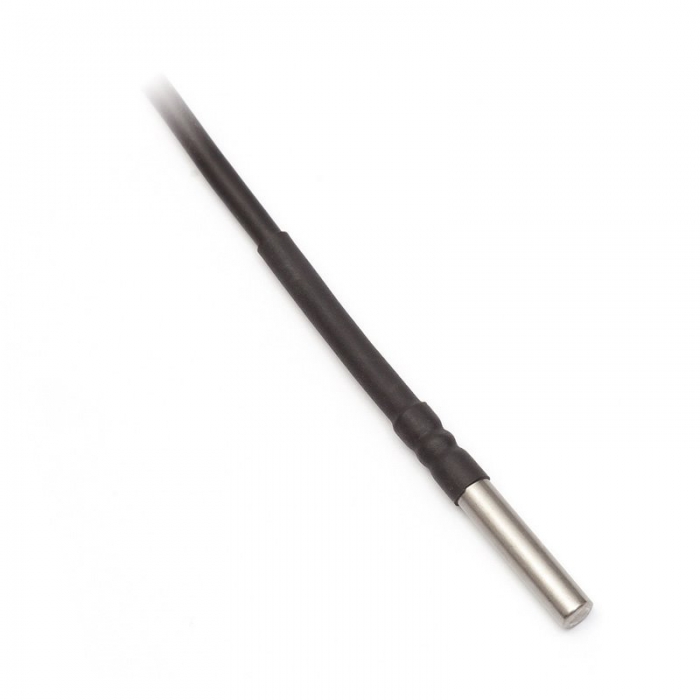

Temperature probe Pt1000TG8/E, ELKA connector
Multi-purpose watertight IP67 temperature probe -80 to +200°C.
The probe is designed to measure the temperature of gaseous and liquid substances. Used type of lead-in cable has silicone insulation and shielding.
The probe is designed for universal use, the method of use must be chosen with regard to the temperature and chemical resistance of thecase and lead-in cable.
-
codeSN104E
Product variants
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-50 to +200 °C
-80 to +200 °C (for static position of lead-in cable)
-80 to +200 °C (for static position of lead-in cable)
Accuracy
± (0.15 + 0.002 t) at °C
Accuracy class
A
Time response
t0.5 <7 s (in flowing water at > 0.2 m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4301

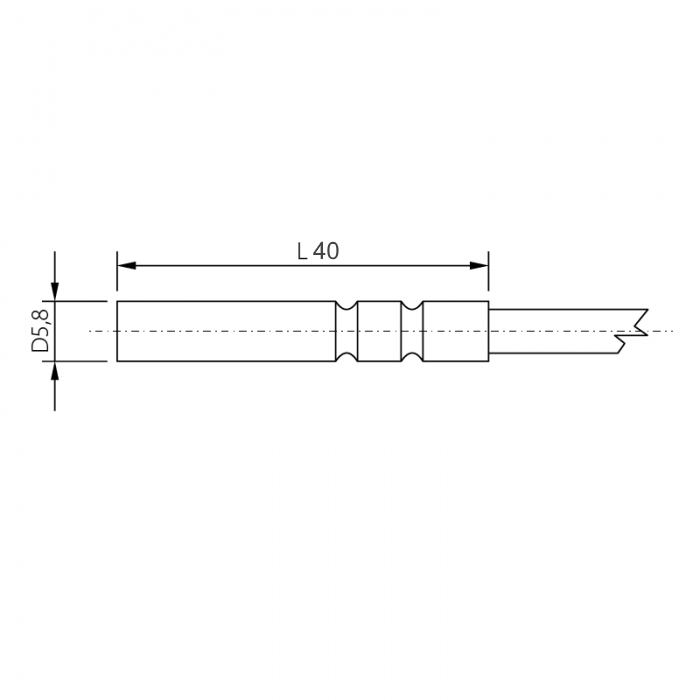

Dimensions of the case
length 40 mm;
diameter 5.7 ± 0.1 mm
diameter 5.7 ± 0.1 mm
Lead-in cable
silicone shielded
Length of lead-in cable
1 meter
Connector
ELKA
IP protection
IP67
Warranty
30 months
