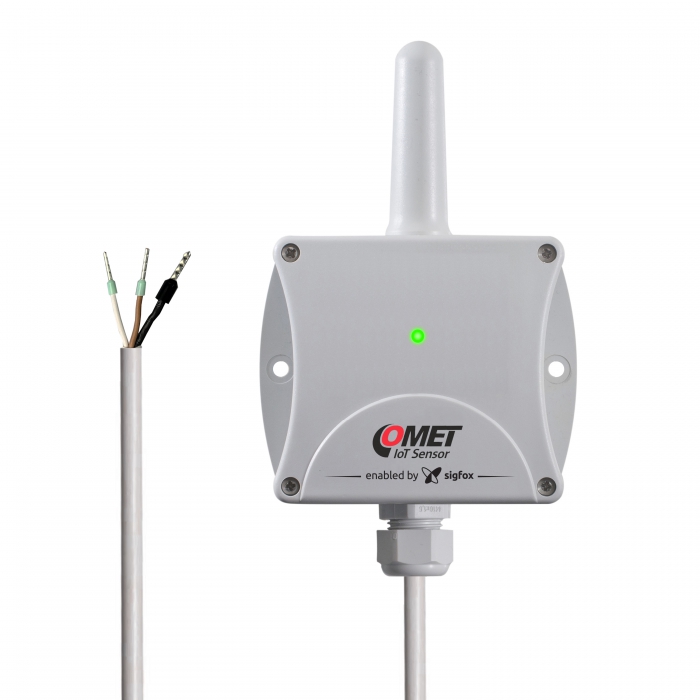

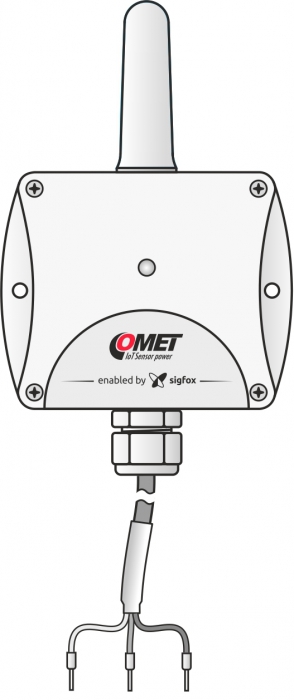

Wireless thermometer with built-in sensor and with voltage input, IoT Sigfox

The device measures the temperature from the built-in sensor with the possibility of installation directly into the measured space thanks to IP65 protection and DC voltage in range -30 to +30 V. By measuring the DC voltage, it is possible to remotely monitor, for example, the status of power batteries or, in general, the power status of the monitored technology. The input can also be used to connect sensors of various quantities with a standard output, eg 0-10 V.

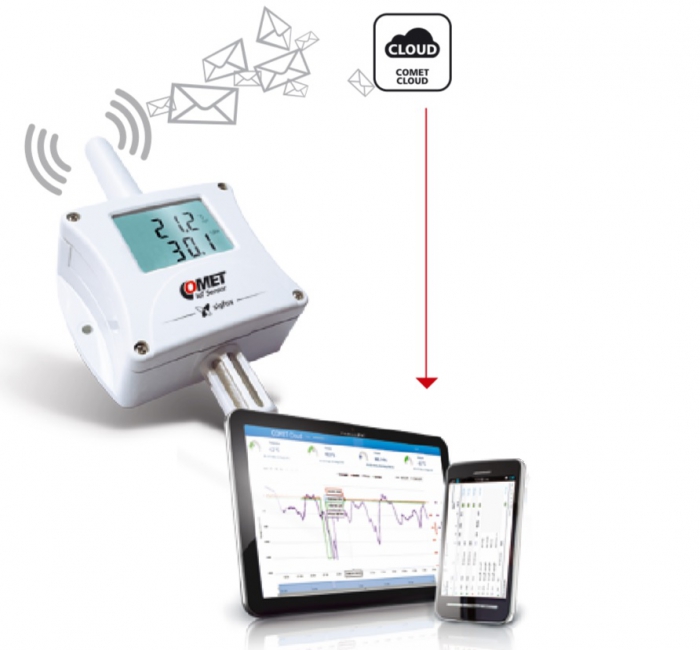

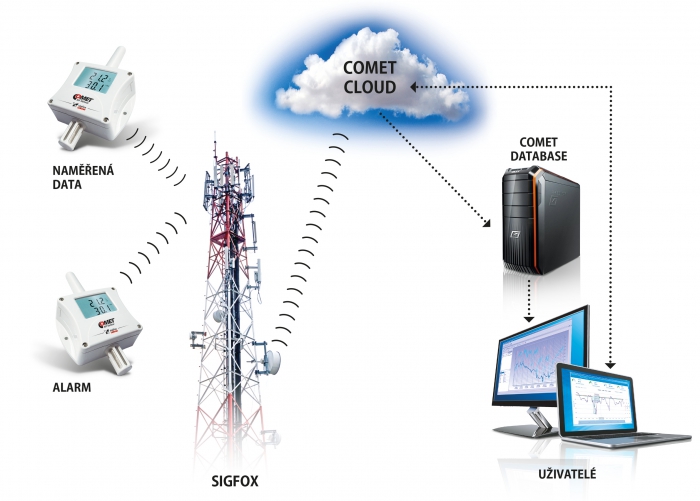

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).

Highlights:

  • wireless transmission of measured values and alarm states
  • battery power (battery life 1 year to 10 years)
  • LED indication of device status
  • remote setting of the device from COMET Cloud (maximum once a day)
  • IP65
  • traceable calibration certificate in accordance with EN ISO / IEC 17025

The availability of Sigfox network in a particular location

Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.

  • code
    W0870P
  • Warranty
    3 years

Technical data

Measured value

Temperature
Voltage

TEMPERATURE SENSOR

Measuring range -30 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Response time t90 < 10 min (temperature step 20 °C, air flow approximately cca 1 m/s)

VOLTAGE INPUT

Measuring range -30 to +30 Vss
Accuracy ±0.03 V
Input resistance approx. 130 kΩ
Resolution 0.001 V

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels built-in temperature sensor, voltage input
"Message transmission interval adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours"
Operating frequency 868 MHz
Maximum transmission power 25mW
Sigfox radiation class 0U
Radio configuration zone RC1 (operation is possible in Europe, Iran, Oman and South Africa)
Typical range of transmitter 50 km in the field, 3 km in the city
Power Lithium battery 3.6 V, C size
Protection class IP20
Dimensions 126 x 89 x 40 mm
Weight (including batteries) 250g
Warranty 3 years

Battery lifetime

Sending interval 10 minutes 20 minutes 30 minutes 1 hour 3 hours 6 hours 12 hours 24 hours
1x lithium battery A4206 - 8500mAh 1 year 2 years 3 years 6 years 10 years > 10 years > 10 years > 10 years

COMET Cloud & SigFox Technology

3 years warranty Traceable calibration certificate IoT Sensor - SIGFOX IoT Sensor - SIGFOX COMET Cloud Wireless Temperature sensor Humidity sensor Dew-point Barometric pressure Two-state inputs Alarm E-mail alarm Battery power IP protection
