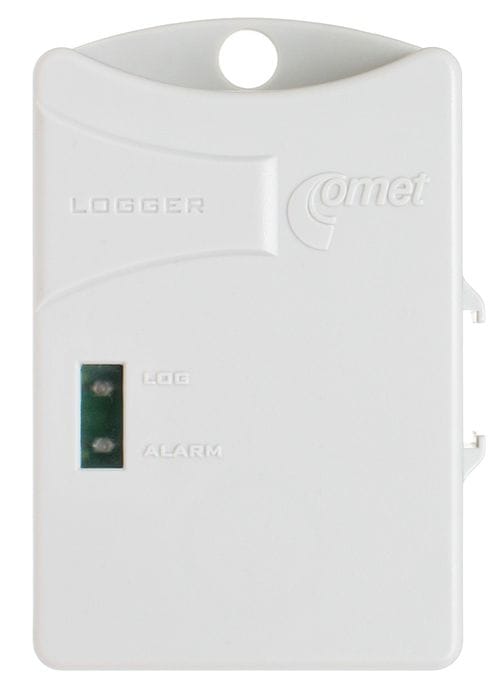

Datalogging Thermometer

Temperature datalogger is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based

on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

  • code
    R0110E
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -30 to +70 °C
Accuracy ±0.6°C (-30 to +30 °C);
±0.8°C (+30 to +70 °C)
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -40 to +80 °C
Channels internal temperature sensor
Memory 32,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power lithium battery 3.6 V; size AA
Battery life 7 years
Protection class IP67
Dimensions 93 x 64 x 27 mm
Weight (including batteries) approx. 100 g
Warranty 3 years

Optional accessories and download
