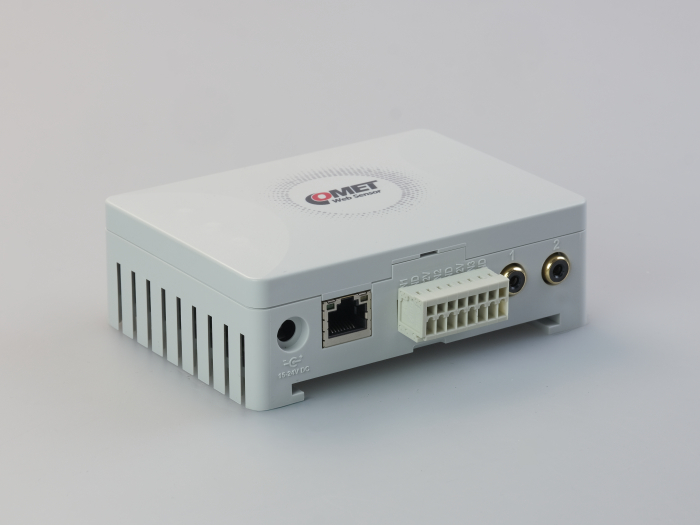

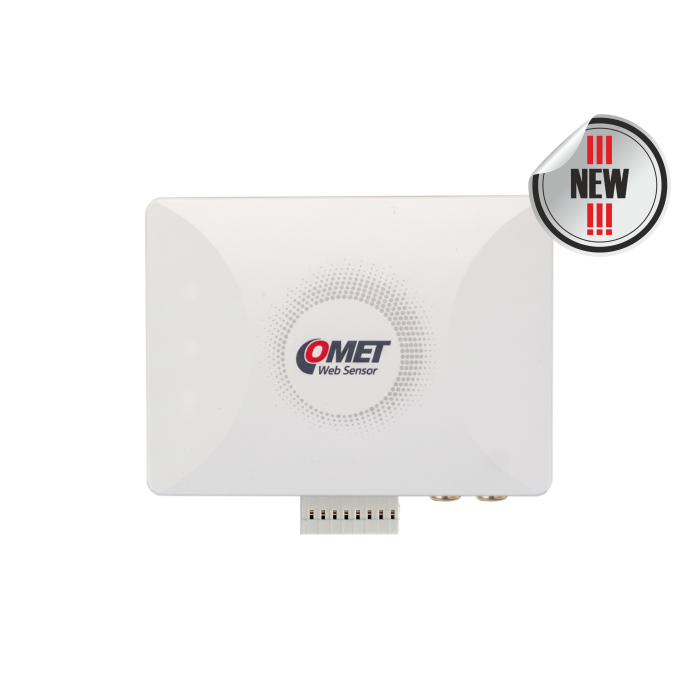

Low-Cost Sensor for Two Digital Probes and Three Binary Inputs, Ethernet Output and PoE

Low-Cost Sensor for Two Digital Probes and Three Binary Inputs, Ethernet Output and PoE

The PA8652 is the most versatile model in the PAx6xx series. It allows for the connection of up to four digital temperature probes or combined temperature and humidity probes and also offers three binary inputs for status detection or connection of external detectors.

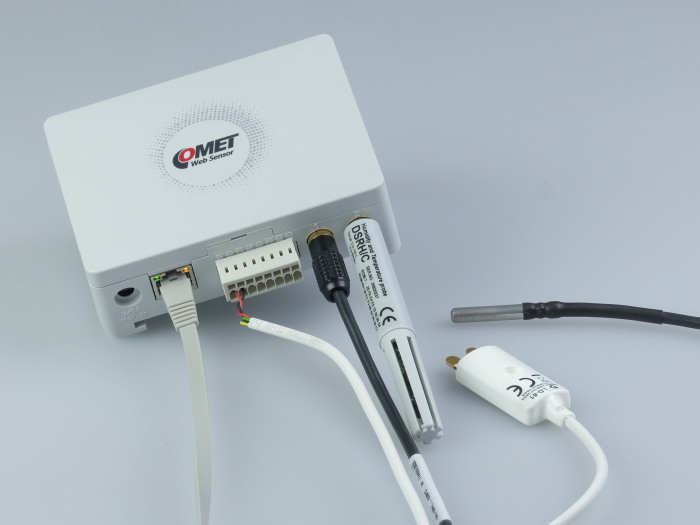

A unique feature of the device is the ability to power connected detectors with 12 V directly from the terminals even when powered via PoE, which eliminates the need for additional power supplies and significantly simplifies installation.

The device inputs can be configured for voltage signals, dry contacts, or for connecting a two-wire flood sensor.

The PA8652 is ideal for comprehensive environmental monitoring where, in addition to temperature or humidity, it is necessary to monitor flooding, door opening, or other binary states.

Main Benefits:

  • Support for external digital temperature and humidity probes + monitoring of 3 binary states
  • Allows probe connection up to 40 meters in length
  • Ability to power external detectors from the device
  • Power supply 15–24 V or PoE (IEEE 802.3af)
  • Integrated backup memory
  • Modern web interface, IPv4/IPv6 support, Modbus TCP, COMET Cloud, and fully encrypted communication (HTTPS, SNMPv3, TLS)
  • Integrated detachable bracket for easy installation

  • code
    PA8652
  • Warranty
    3 years
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Two-state signal

TEMPERATURE SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range Depending on the connected DSxx probe
Accuracy Depending on the connected DSxx probe
Resolution 0.1% RV

BINÁRNÍ VSTUP

Voltage input contact parameters Input voltage for level “L”: < 1.0 V
Input voltage for level “H”: > 2.5 V
Internal source resistance: < 2 kΩ
Input voltage range: 0 to +30 V
Dry contact parameters Open-circuit voltage at terminals: 3.3 V
Current through closed contact: 0.1 mA
Maximum contact resistance: < 5 kΩ

GENERAL TECHNICAL DATA

Operating temperature range -30 to +60 °C
Measurement channels 1× external temperature probe or 1× combined T+RH probe (cable-mounted), CINCH connector
Maximum probe cable length per channel 40 meters
Supported temperature units degrees Celsius (°C), degrees Fahrenheit (°F)
Power supply Power over Ethernet (IEEE 802.3af) or 5–24 V DC
Network interface Ethernet
IP support IPv4, IPv6
Communication protocols HTTP(s), Web server (WWW), HTTP GET (JSON, XML), Modbus TCP, SNMPv1, SNMPv2c, SNMPv3
Alarm protocols Email (SMTP), Syslog
Measurement interval 2 s
Ingress protection (IP rating) IP30
Dimensions 116 × 85 × 42 mm (without connected probe)
Weight 180 g
Warranty 3 years

Cost-effective Ethernet Sensors without Display

The PAx6xx series is designed as a low-cost solution for applications where a local display or signaling is not required.

Ideal solution for:

  • server rooms
  • warehouses
  • IT racks
  • OEM projects
  • centrally managed systems

Why choose PAx6xx?

Cost-effective solution
Optimized for projects where the priority is:

  • reliability
  • network communication
  • remote monitoring
  • low acquisition costs

Full-featured network equipment
The same platform as TAx6xx means:

  • HTTPS
  • SNMP v1/v2c/v3
  • Modbus TCP
  • HTTP GET (JSON / XML)
  • HTTP POST (JSON)
  • SMTP (TLS)
  • IPv4 + IPv6
  • COMET Cloud
  • Syslog
  • Firmware update via web

✔ Modern security

  • Custom certificate upload
  • 4 user accounts
  • Encrypted communication
  • RTC with battery backup

✔ Flexible probe connection

  • Digital temperature probes (DST)
  • Digital T+RH probes (DSRH)
  • Independent bus for multi-input models
  • Up to 40 m cable length for each probe

Technical parameters (common)

  • Power supply 5–24 V (PA8652: 15–24 V)
  • PoE IEEE 802.3af
  • Backed-up memory
  • Modern compact design
  • Removable bracket
  • Operating range −30 to +60 °C

Typical applications

Server rooms

  • Discrete installation without a display.

Warehouses

  • Monitoring of multiple points using PA8641.

Technical rooms

  • Temperature + flooding + door status (PA8652).

Buildings with central monitoring

  • Integration into BMS via Modbus TCP or SNMP.
