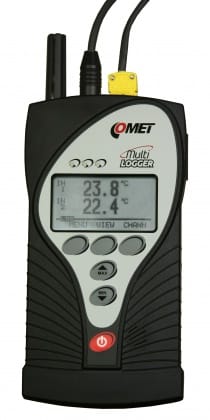

Multilogger - thermo hygro meter with 2 MiniDIN and 2 Thermocouple inputs

Universal datalogger with 4 inputs. Two inputs for temperature-humidity probes and two inputs for thermocouples K, J, S, B, T, N.
Multilogger can be installed permanently to Ethernet network or work as portable device.
Included is traceable calibration certificate in accordance with EN ISO/IEC17025.

The Multilogger is a battery operated datalogger capable of measuring and recording sensor and electrical values through its Inputs.

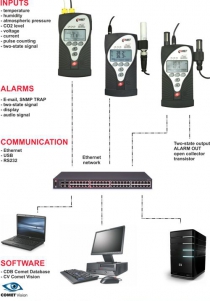

Data logger can be connected to Ethernet. Then measured values can be viewed on a web browser, as well as stored and downloaded for later analysis.



  • code
    M1220
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.2 °C (-200 to +100 °C);
±0.2 % from reading from +100 to +600 °C
Resolution 0.1 °C

TEMPERATURE+HUMIDITY SENSOR - external probe T+RH DIGI

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

DEW POINT

Measuring range according to the connected probe Digi/M
Accuracy according to the connected probe Digi/M
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple K, N

Measuring range -200 to +1300 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple J

Measuring range -200 to +750 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple S

Measuring range 0 to +1700 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple B

Measuring range 100 to +1800 °C
Accuracy ± 0,3 % from the measured value + 1 °C in the range +300 to +1800 °C
Resolution 0.1 °C

TEMPERATURE SENSOR - thermocouple T

Measuring range -200 to +400 °C
Accuracy ± 0,3 % from the measured value + 1,5 °C
Resolution 0.1 °C
DC VOLTAGE
Measuring range -60 to +140 mV; -18 to +18 mV
Accuracy ±100 µV; ±20 µV
Resolution 0,1 µV

GENERAL TECHNICAL DATA

Operating temperature -10 to +60 °C
Channels 4x external temperature probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval 1s to 24 hours
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units degrees Celsius, degrees Fahrenheit
Communication interface Ethernet, USB, RS232
Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
Alarm protocols E-Mail
Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
Battery life 3 - 4 weeks
Protection class IP20
Dimensions (without connectors) 178 x 95 x 37mm, without attached cables
Weight (including batteries) approx. 380 g
Warranty 3 years

Features

Up to 4 physical Inputs - 2x MiniDin + 2x Thermocouple

Multilogger M1220 inputs
  • Temperature probes Pt1000 with built-in configuration memory (serie xxx/M)
  • Temperature/relative humidity probes with digital output - DigiS/M, DigiL/M, DIGIH/M
  • The probes are interchangeable without calibration to a specific device and regardless of the length of the cable. The length of the cable can be 1, 2, 5, 10, 15 meters.
  • Themocouple probe K, J, S, B, T, N
  • Direct input of bipolar voltages with range up to -60 to +140 mV
  • Sensors with woltage output (range -60 to +140mV; accuracy ±100 µV or -18 to +18mV; accuracy ±20 µV)

Evaluation of up to 16 variables

Multilogger - LCD detail
Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be a further expression of moisture – dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. It can be also the result of inter-channel conversions, e.g. the difference of two connected temperature probes.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger - Power Supply
Multilogger - Power Supply

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure. Thanks to the Ethernet output the device informs about the failure via e-mail message.

Alarm limits and alarm indication

Multilogger - Alarm limits

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), optical, sending an e-mail alert or an alarm output. The alarm output is for connecting an external audio or visual alarm.

Communication interfaces

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Multilogger - Alarm limits
  • send an e-mail when an alarm state starts or ends
  • use DATALINK: display current values or download values from memory to COMET Database in your PC. Software COMET Database contains many useful tools for data analysis - graphs, tables, statistics, etc.
  • simple wireless communication with Wi-Fi TP-LINK router
  • third-party applications to read the actual measured values using universal protocols SNMPv1 and XML
  • view current measured values using your web browser

Output ALARM OUT

Multilogger - Alarm limits and alarm indication
  • Output can be used for controling other devices when alarm is launched, such as external buzzer, telephone dialer etc.
  • Type of output - open collector transistor
  • Max. switching current - 100 mA
  • Max. voltage on output - 24 V
  • Auxiliary voltage at terminal - +5 V (only when the mains supply is present)
  • Users can receive alarms if the values go outside the paramters set. Alarms are indicated through an internal buzzer , 3 LEDs or email alerts via Ethernet port.

Optional accessories and download

Temperature probe Pt1000TG8/M, MiniDin connector

Temperature probe Pt1000TG8/M, MiniDin connector

Temperature range: -80 to 200°C
code SN104M
Temperature probe Pt1000TG8/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TG8/M, MiniDin connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105M
Temperature probe Pt1000TG8/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TG8/M, MiniDin connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108M
Temperature probe Pt1000TG8/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TG8/M, MiniDin connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113M
Temperature probe Pt1000TG7/M, MiniDin connector

Temperature probe Pt1000TG7/M, MiniDin connector

Temperature range: -50 to 200°C
code SN164M
Temperature probe Pt1000TG7/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TG7/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165M
Temperature probe Pt1000TG7/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TG7/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166M
Temperature probe Pt1000TG7/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TG7/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167M
Temperature probe 2304-220/M, MiniDin connector, cable 1 meter

Temperature probe 2304-220/M, MiniDin connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168M
Temperature probe 2021-150/M, MiniDin connector, cable 1 meter

Temperature probe 2021-150/M, MiniDin connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169M
Temperature probe 2034-220/M, MiniDin connector, cable 1 meter

Temperature probe 2034-220/M, MiniDin connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175M
Temperature probe 2061-200/M, MiniDin connector, cable 1 meter

Temperature probe 2061-200/M, MiniDin connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178M
Temperature probe 2061-200/M, MiniDin connector, cable 2 meters

Temperature probe 2061-200/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179M
Temperature probe 2061-200/M, MiniDin connector, cable 5 meters

Temperature probe 2061-200/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180M
Temperature probe 2061-200/M, MiniDin connector, cable 10 meters

Temperature probe 2061-200/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181M
Temperature probe PTS350A-5/M, MiniDin connector, cable 5 meters

Temperature probe PTS350A-5/M, MiniDin connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182M
Temperature probe PTS350A-10/M, MiniDin connector, cable 10 meters

Temperature probe PTS350A-10/M, MiniDin connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183M
Temperature probe Pt1000TGL40/M, MiniDin connector, cable 1 meter

Temperature probe Pt1000TGL40/M, MiniDin connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185M
Temperature probe Pt1000TGL40/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TGL40/M, MiniDin connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186M
Temperature probe Pt1000TGL40/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TGL40/M, MiniDin connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187M
Temperature probe Pt1000TGL40/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TGL40/M, MiniDin connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188M
Temperature probe Pt1000TR160/M, MiniDin connector, cable 1 meter

Temperature probe Pt1000TR160/M, MiniDin connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199M
Temperature probe Pt1000TR160/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TR160/M, MiniDin connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200M
Temperature probe Pt1000TR160/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TR160/M, MiniDin connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201M
Temperature probe Pt1000TR160/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TR160/M, MiniDin connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202M
Temperature probe Pt1000TR160/M, MiniDin connector, cable 15 meters

Temperature probe Pt1000TR160/M, MiniDin connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203M
Stick-in probe 2091-250/M, MiniDin connector, cable 1 meter

Stick-in probe 2091-250/M, MiniDin connector, cable 1 meter

Temperature range: -30 to 200°C
code SN210M
Stick-in probe 2091-250/M, MiniDin connector, cable 2 meters

Stick-in probe 2091-250/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211M
Stick-in probe 2091-250/M, MiniDin connector, cable 5 meters

Stick-in probe 2091-250/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212M
Stick-in probe 2091-250/M, MiniDin connector, cable 10 meters

Stick-in probe 2091-250/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213M
Temperature probe Pt1000TG68/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TG68/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN232M
Temperature probe Pt1000TG68/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TG68/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN233M
Temperature probe Pt1000TG68/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TG68/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN234M
Temperature probe Pt1000TR125/M, MiniDin connector, cable 1 meter

Temperature probe Pt1000TR125/M, MiniDin connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239M
Temperature probe Pt1000TR125/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TR125/M, MiniDin connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240M
Temperature probe Pt1000TR125/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TR125/M, MiniDin connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241M
Temperature probe Pt1000TR125/M, MiniDin connector, cable 10 meters

Temperature probe Pt1000TR125/M, MiniDin connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242M
Ambient temperature probe with Pt1000 sensor, 200-80/M

Ambient temperature probe with Pt1000 sensor, 200-80/M

Temperature range: -30 to 80°C
code SN243M
Temperature probe Pt1000TR050S/M, MiniDin connector, cable 1 meter

Temperature probe Pt1000TR050S/M, MiniDin connector, cable 1 meter

Temperature range: -50 to 400°C
code SN247M
Temperature probe Pt1000TR050S/M, MiniDin connector, cable 2 meters

Temperature probe Pt1000TR050S/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 400°C
code SN248M
Temperature probe Pt1000TR050S/M, MiniDin connector, cable 5 meters

Temperature probe Pt1000TR050S/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 400°C
code SN249M
Temperature probe Pt1000TG68/M, MiniDin connector, cable 1 meter

Temperature probe Pt1000TG68/M, MiniDin connector, cable 1 meter

Temperature range: -50 to 200°C
code SN251M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector

Temperature range: -50 to 200°C
code SN252M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 2 meters

Temperature range: -50 to 200°C
code SN254M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 5 meters

Temperature range: -50 to 200°C
code SN255M
Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector, cable 10 meters

Temperature range: -50 to 200°C
code SN256M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266M
Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/M, MiniDin connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267M

Thermocouple "K" surface probe, CP500

Thermocouple "K" surface probe, CP500

Temperature range: -65 to 500°C
code CP500
Thermocouple "K" stick-in probe, CZ550

Thermocouple "K" stick-in probe, CZ550

Temperature range: -65 to 550°C
code CZ550
Thermocouple "K" stick-in probe, CZ900

Thermocouple "K" stick-in probe, CZ900

Temperature range: -65 to 1000°C
code CZ900
Thermocouple "K" wire probe, GD1250, with connector

Thermocouple "K" wire probe, GD1250, with connector

Temperature range: -65 to 980°C
code GD1250-1
Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Thermocouple "K" wire probe, GD1250, with connector, 2 meters

Temperature range: -65 to 980°C
code GD1250-2
Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Thermocouple "K" wire probe, GD1250, with connector, 3 meters

Temperature range: -65 to 980°C
code GD1250-3
Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Thermocouple "K" wire probe, GD1250, with connector, 4 meters

Temperature range: -65 to 980°C
code GD1250-4
Thermocouple "K" wire probe, GD260, with connector

Thermocouple "K" wire probe, GD260, with connector

Temperature range: -65 to 260°C
code GD260-1
Thermocouple "K" wire probe, GD260, with connector, 2 meters

Thermocouple "K" wire probe, GD260, with connector, 2 meters

Temperature range: -65 to 260°C
code GD260-2
Thermocouple "K" wire probe, GD260, with connector, 3 meters

Thermocouple "K" wire probe, GD260, with connector, 3 meters

Temperature range: -65 to 260°C
code GD260-3
Thermocouple "K" wire probe, GD260, with connector, 4 meters

Thermocouple "K" wire probe, GD260, with connector, 4 meters

Temperature range: -65 to 260°C
code GD260-4
Thermocouple "K" wire probe, GD700, with connector

Thermocouple "K" wire probe, GD700, with connector

Temperature range: -65 to 700°C
code GD700-1
Thermocouple "K" wire probe, GD700, with connector, 2 meters

Thermocouple "K" wire probe, GD700, with connector, 2 meters

Temperature range: -65 to 700°C
code GD700-2
Thermocouple "K" wire probe, GD700, with connector, 3 meters

Thermocouple "K" wire probe, GD700, with connector, 3 meters

Temperature range: -65 to 700°C
code GD700-3
Thermocouple "K" wire probe, GD700, with connector, 4 meters

Thermocouple "K" wire probe, GD700, with connector, 4 meters

Temperature range: -65 to 700°C
code GD700-4
Thermocouple "K" insertion probe, GT1150

Thermocouple "K" insertion probe, GT1150

Temperature range: -50 to 1150°C
code GT1150

Ultra thin digital temperature/humidity probe

Ultra thin digital temperature/humidity probe

Temperature range: -10 to 60°C
code DIGIH/M-1
Ultra thin digital temperature/humidity probe, cable 2 m

Ultra thin digital temperature/humidity probe, cable 2 m

Temperature range: -10 to 60°C
code DIGIH/M-2
Ultra thin digital temperature/humidity probe, cable 5 m

Ultra thin digital temperature/humidity probe, cable 5 m

Temperature range: -10 to 60°C
code DIGIH/M-5
Digital temperature/humidity probe DIGIL/M, MiniDin connector

Digital temperature/humidity probe DIGIL/M, MiniDin connector

Temperature range: -10 to 60°C
code DIGIL/M
Digital temperature/humidity probe DIGIL/M-1, MiniDin connector, cable 1 meter

Digital temperature/humidity probe DIGIL/M-1, MiniDin connector, cable 1 meter

Temperature range: -30 to 105°C
code DIGIL/M-1
Digital temperature/humidity probe DIGIL/M-10, MiniDin connector, cable 10 meters

Digital temperature/humidity probe DIGIL/M-10, MiniDin connector, cable 10 meters

Temperature range: -30 to 105°C
code DIGIL/M-10
Digital temperature/humidity probe DIGIL/M-15, MiniDin connector, cable 15 meters

Digital temperature/humidity probe DIGIL/M-15, MiniDin connector, cable 15 meters

Temperature range: -3 to 105°C
code DIGIL/M-15
Digital temperature/humidity probe DIGIL/M-2, MiniDin connector, cable 2 meters

Digital temperature/humidity probe DIGIL/M-2, MiniDin connector, cable 2 meters

Temperature range: -30 to 105°C
code DIGIL/M-2
Digital temperature/humidity probe DIGIL/M-5, MiniDin connector, cable 5 meters

Digital temperature/humidity probe DIGIL/M-5, MiniDin connector, cable 5 meters

Temperature range: -30 to 105°C
code DIGIL/M-5
Digital temperature/humidity probe DIGIS/M, MiniDin connector

Digital temperature/humidity probe DIGIS/M, MiniDin connector

Temperature range: -10 to 60°C
code DIGIS/M
Digital temperature/humidity probe DIGIS/M-1, MiniDin connector, cable 1 meter

Digital temperature/humidity probe DIGIS/M-1, MiniDin connector, cable 1 meter

Temperature range: -10 to 60°C
code DIGIS/M-1
Digital temperature/humidity probe DIGIS/M-10, MiniDin connector, cable 10 meters

Digital temperature/humidity probe DIGIS/M-10, MiniDin connector, cable 10 meters

Temperature range: -10 to 60°C
code DIGIS/M-10
Digital temperature/humidity probe DIGIS/M-15, MiniDin connector, cable 15 meters

Digital temperature/humidity probe DIGIS/M-15, MiniDin connector, cable 15 meters

Temperature range: -10 to 60°C
code DIGIS/M-15
Digital temperature/humidity probe DIGIS/M-2, MiniDin connector, cable 2 meters

Digital temperature/humidity probe DIGIS/M-2, MiniDin connector, cable 2 meters

Temperature range: -10 to 60°C
code DIGIS/M-2
Digital temperature/humidity probe DIGIS/M-5, MiniDin connector, cable 5 meters

Digital temperature/humidity probe DIGIS/M-5, MiniDin connector, cable 5 meters

Temperature range: -10 to 60°C
code DIGIS/M-5

Extension cable thermocouple "K"

Extension cable thermocouple "K"

code SNP03
Extension cable thermocouple "K" female connector

Extension cable thermocouple "K" female connector

code SNP03/0
Extension cable thermocouple "K", 2 meters

Extension cable thermocouple "K", 2 meters

code SNP06
Extension cable thermocouple "K" female connector, 2 meters

Extension cable thermocouple "K" female connector, 2 meters

code SNP06/0
Extension cable thermocouple "K", 3 meters

Extension cable thermocouple "K", 3 meters

code SNP07
Extension cable thermocouple "K" female connector, 3 meters

Extension cable thermocouple "K" female connector, 3 meters

code SNP07/0
Extension cable thermocouple "K", 4 meters

Extension cable thermocouple "K", 4 meters

code SNP08
Extension cable thermocouple "K" female connector, 4 meters

Extension cable thermocouple "K" female connector, 4 meters

code SNP08/0
Extension cable thermocouple "K", 5 meters

Extension cable thermocouple "K", 5 meters

code SNP09
Extension cable thermocouple "K" female connector, 5 meters

Extension cable thermocouple "K" female connector, 5 meters

code SNP09/0
Extension cable thermocouple "K", 6 meters

Extension cable thermocouple "K", 6 meters

code SNP10
Extension cable thermocouple "K" female connector, 6 meters

Extension cable thermocouple "K" female connector, 6 meters

code SNP10/0
Extension cable thermocouple "K", 7 meters

Extension cable thermocouple "K", 7 meters

code SNP11
Extension cable thermocouple "K" female connector, 7 meters

Extension cable thermocouple "K" female connector, 7 meters

code SNP11/0
Extension cable thermocouple "K", 8 meters

Extension cable thermocouple "K", 8 meters

code SNP12
Extension cable thermocouple "K" female connector, 8 meters

Extension cable thermocouple "K" female connector, 8 meters

code SNP12/0
Extension cable thermocouple "K", 9 meters

Extension cable thermocouple "K", 9 meters

code SNP13
Extension cable thermocouple "K" female connector, 9 meters

Extension cable thermocouple "K" female connector, 9 meters

code SNP13/0
Extension cable thermocouple "K", 10 meters

Extension cable thermocouple "K", 10 meters

code SNP14
Extension cable thermocouple "K" female connector, 10 meters

Extension cable thermocouple "K" female connector, 10 meters

code SNP14/0
Extension cable thermocouple "K", 11 meters

Extension cable thermocouple "K", 11 meters

code SNP15
Extension cable thermocouple "K" female connector, 11 meters

Extension cable thermocouple "K" female connector, 11 meters

code SNP15/0
Extension cable thermocouple "K", 12 meters

Extension cable thermocouple "K", 12 meters

code SNP16
Extension cable thermocouple "K" female connector, 12 meters

Extension cable thermocouple "K" female connector, 12 meters

code SNP16/0
Extension cable thermocouple "K", 13 meters

Extension cable thermocouple "K", 13 meters

code SNP17
Extension cable thermocouple "K" female connector, 13 meters

Extension cable thermocouple "K" female connector, 13 meters

code SNP17/0
Extension cable thermocouple "K", 14 meters

Extension cable thermocouple "K", 14 meters

code SNP18
Extension cable thermocouple "K" female connector, 14 meters

Extension cable thermocouple "K" female connector, 14 meters

code SNP18/0
Extension cable thermocouple "K", 15 meters

Extension cable thermocouple "K", 15 meters

code SNP19
Extension cable thermocouple "K" female connector, 15 meters

Extension cable thermocouple "K" female connector, 15 meters

code SNP19/0

300Mbps Wireless N Nano Router

300Mbps Wireless N Nano Router

code TL-WIFI

Wall holder for the Multilogger

Wall holder for the Multilogger

code MLP002
Holder for mounting the Multilogger on magnetic surfaces

Holder for mounting the Multilogger on magnetic surfaces

code MLP003
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

Comet Database

Comet Database

code CDB
COMET VISION - Analytical Software for Dataloggers and Multiloggers

COMET VISION - Analytical Software for Dataloggers and Multiloggers

code CV
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Adapter for easy connection U/I signals to Multilogger

Adapter for easy connection U/I signals to Multilogger

code MLP006
External audio unit for MSxx and Multilogger

External audio unit for MSxx and Multilogger

code MP026

Software

download-icon Comet Vision Software (2.2.8146.27324 dbapi 20.1)
15.75 MB
download-icon Comet Database One Click Installer (20.2-I)
327.96 MB
download-icon Database Viewer 3.18.0.0 dbapi 20.2
24.26 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon Terms and Conditions COMET System s.r.o.
129.08 KB

Manuals

download-icon Instruction Manual
2.24 MB
download-icon Quick Start Manual
1,009.40 KB
download-icon Declaration of Conformity
58.20 KB
download-icon MIB
572.90 KB

Catalogs

download-icon CATALOG - Multilogger
1.24 MB

Related products

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

Discontinued
COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan

COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan

Discontinued
Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

Ethernet Multilogger - thermo hygro meter with 4 MiniDIN inputs

code M1140
Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

Multilogger - Thermometer with 4 Thermocouple inputs and Ethernet port

code M1200
Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

Multilogger - universal 4 channel thermometer hygrometer with 2 MiniDIN and 2 Terminals

code M1320
Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals

code M1321
Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

Ethernet Multilogger - thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

code M1322
Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

Multilogger - thermo-hygro-CO2-barometer with 2 MiniDIN and 2 Terminals

code M1323
Ethernet Multilogger - universal datalogger with 4 inputs

Ethernet Multilogger - universal datalogger with 4 inputs

code M1300
Multilogger - thermo-hygro-CO2 meter with four inputs, up to 10 000ppm CO2

Multilogger - thermo-hygro-CO2 meter with four inputs, up to 10 000ppm CO2

code M1440

Multilogger Online Demo
