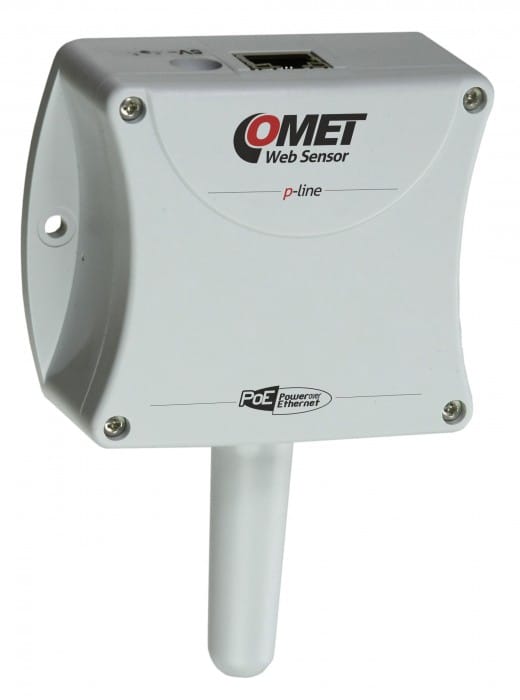

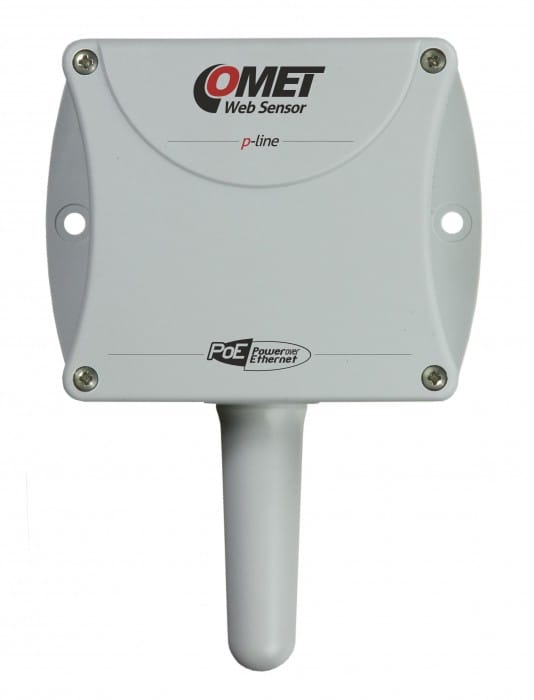

Web Sensor with PoE - remote thermometer

P-line Web Sensor with built-in temperature sensor and PoE - Power over Ethernet feature. Remote alarm.

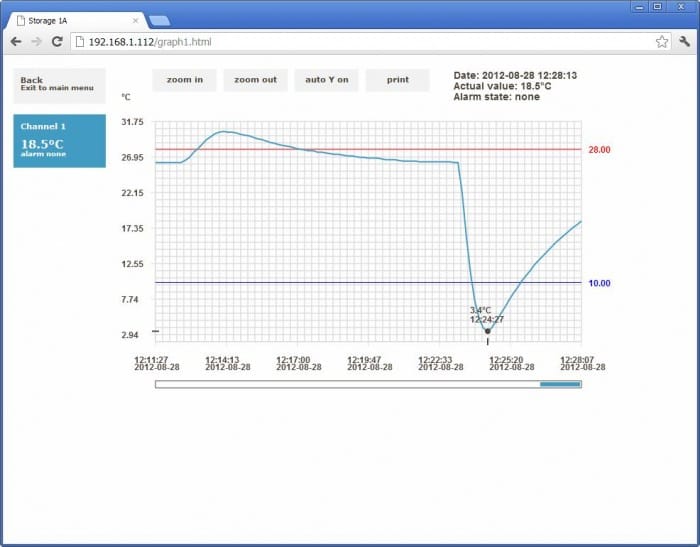

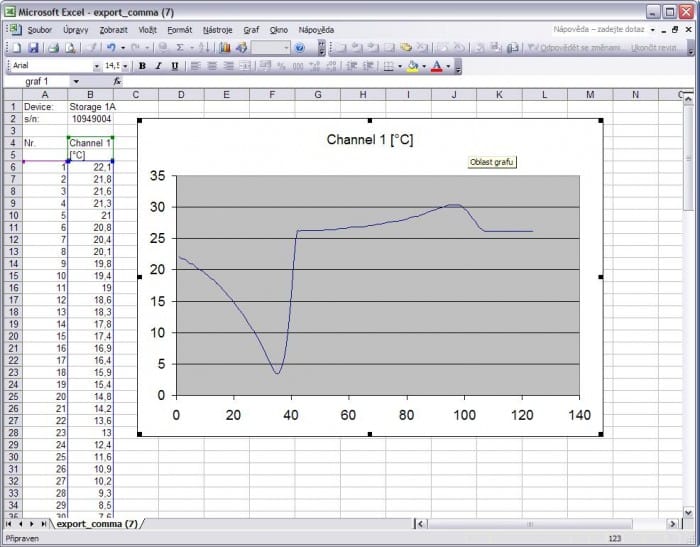

Processing and analysis of measured data:

  • code
    P8610
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR

Measuring range -20 to +60 °C
Accuracy ±0.8 °C in the range teplot od -10 °C do +80°C; ±2,0 °C in the range teplot od -10 °C do -30 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal temperature sensor
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit

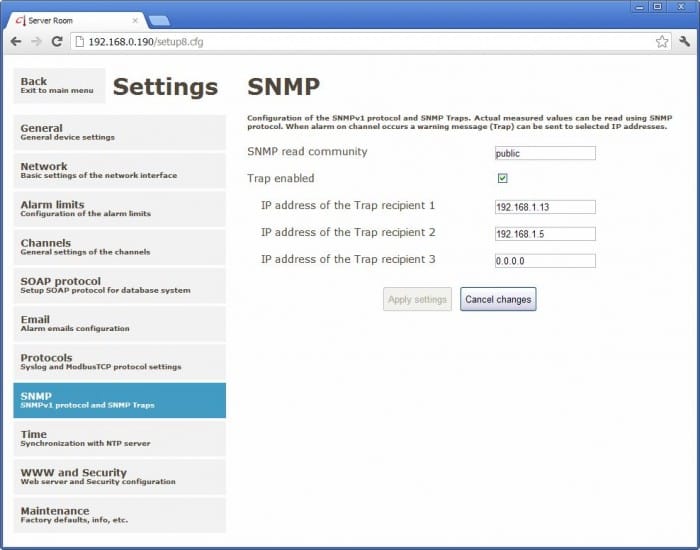

Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30
Dimensions 88 x 126 x 39,5 mm; stem length 53 mm
Weight approx. 130 g
Warranty 3 years

Optional accessories and download

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us

Accredited temperature calibration

Accredited temperature calibration

code SLU001

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.05 MB
download-icon Quick Start Manual
597.26 KB
download-icon Declaration of Conformity
98.26 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
577.77 KB
download-icon Software development kit (SDK)
48.18 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon Catalogue Sheets - COMET Economy WebSensors
1.33 MB
