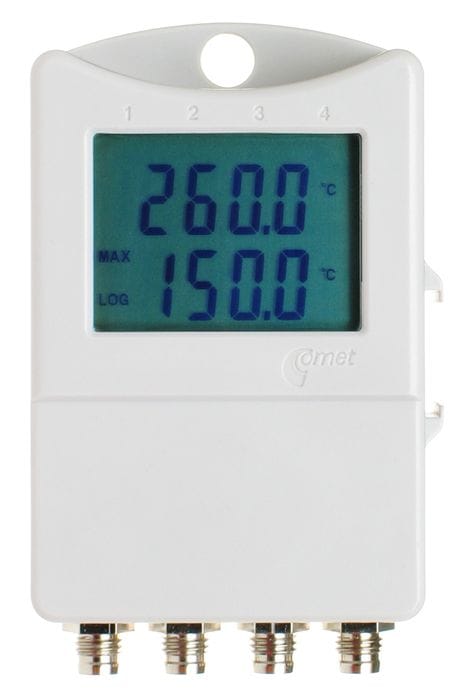

Thermometer 3 chann.+1 binary input with display

Thermometer is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

Included in delivery:

  • code
    S0842
  • Warranty
    3 years

Technical data

Measured value

Temperature
Voltage

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
Resolution 0.1 °C

BINARY INPUT

Signal for binary input from potential - less contact, connected to connector ELKA 3008V
Minimum pulse duration at binary input 500 ms
Maximum frequency at binary input 0.5 Hz (i.e. maximum 5 pulses in 10 s)
Power current of connected contact 3 µA (contact closed)
Voltage across open contact max. 3,6 V

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C
Channels 3x external temperature probe, 1x binary input
Memory 32,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh each 10 s
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power lithium battery 3.6 V; size AA
Battery life 5 years
Protection class IP67
Dimensions (without connectors) 93 x 64 x 29 mm
Weight (including batteries) approx. 115 g
Warranty 3 years
