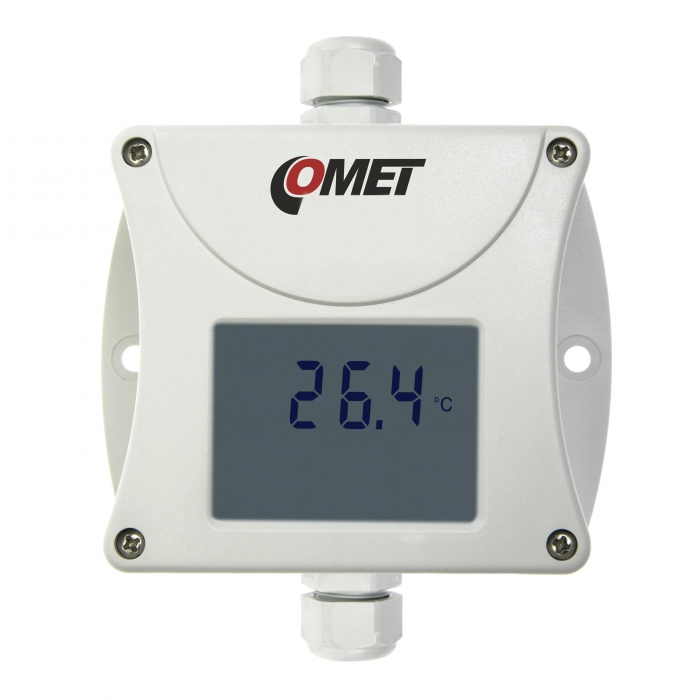

Temperature transmitter with 4-20mA output
Temperature transmitter for Pt1000/3850ppm sensor with 4-20mA output for two-wire connection is built in a durable watertight case. Output temperature range is user adjustable. Degrees Celsius and Fahrenheit are user selectable.
-
codeT4111
-
Warranty3 years
Technical data
Measured value
Temperature
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +600 °C
Accuracy
±0.15°C plus 0.1% from adjusted output span (without temperature probe)
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x external temperature probe
Output
4-20 mA
Available temperature units
degrees Celsius, degrees Fahrenheit
Configuration of output
user adjustable from PC; measured range + value
Power
9-30 Vdc
Protection class
IP65
Dimensions
88,5 x 117 x 39,5 mm
Weight
approx. 145 g
Warranty
3 years
Optional accessories and download
Other accessories
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
code
F8800
COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan
code
F8900
cable for transmitter adjustment via USB port
code
SP003
Tool for easy connection to WAGO terminals 236 for analog output transmitters
code
SP005
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Transmitter version with watertight male connector
code
TxxxxL
Temperature Probes
Temperature probe Pt1000TG8/0, without connector
Temperature range: -80 to 200°C
code
SN104
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263
Temperature probe for COMEO Solar Shields F8x00, Pt1000TR160/0, without connector, cable 25 cm
Temperature range: -30 to 80°C
code
SN250V
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter
Temperature range: -50 to 350°C
code
SN247
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Temperature probe Pt1000TG7/0, without connector
Temperature range: -50 to 200°C
code
SN164
Temperature probe Pt1000TR125/0, without connector, cable 1 meter
Temperature range: -190 to 150°C
code
SN239
Temperature probe 2304-220/0, without connector, cable 1 meter
Temperature range: -30 to 220°C
code
SN168
Temperature probe 2021-150/0, without connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters
Temperature range: -30 to 130°C
code
SN170
Temperature probe 2034-220/0, without connector, cable 1 meter
Temperature range: -30 to 150°C
code
SN175
Temperature probe 2061-200/0, without connector, cable 1 meter
Temperature range: -30 to 200°C
code
SN178
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN185
Temperature probe Pt1000TR160/0, without connector, cable 1 meter
Temperature range: -30 to 80°C
code
SN199
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter
Temperature range: -50 to 250°C
code
SN210
Special probe 2071-80/0, without connector
Temperature range: -30 to 80°C
code
SN214
