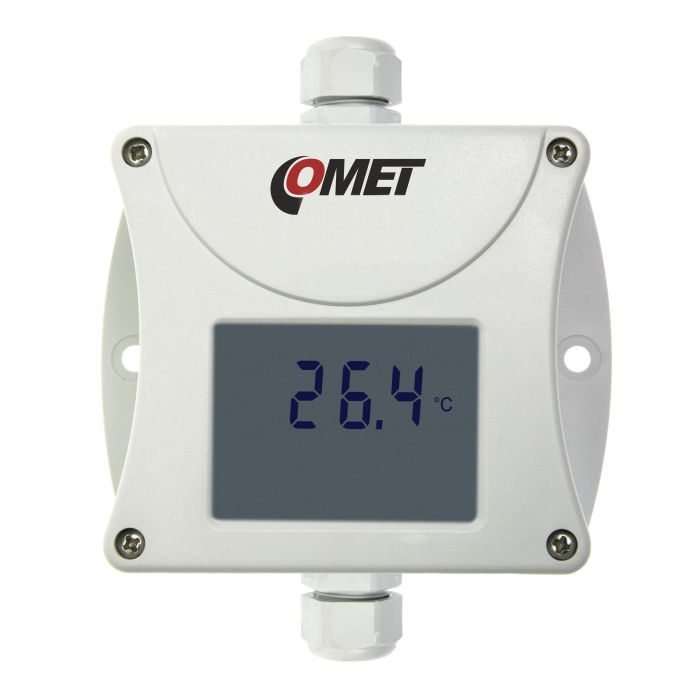

Temperature transmitter with 0-10V output

Temperature transmitter for Pt1000/3850ppm sensor with 0-10V output is built in a durable watertight case. Output temperature range is user adjustable. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off.

NEW - AC Power -  now also powered from 24 Vac !

  • code
    T4211
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +600 °C
Accuracy ±0.15°C plus 0.1% from adjusted output span (without temperature probe)
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x external temperature probe
Output 0 - 10 V
Available temperature units degrees Celsius, degrees Fahrenheit
Configuration of output user adjustable from PC; measured range + value
Power 15-30 Vdc; 24 Vac
Protection class IP65
Dimensions 88,5 x 117 x 39,5 mm
Weight approx. 135 g
Warranty 3 years

Optional accessories and download

Other accessories

COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan

COMETEO Professional Radiation Shield for Weather Sensors, actively ventilated with built-in fan

code F8900
cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL

Temperature Probes

Temperature probe Pt1000TG8/0, without connector

Temperature probe Pt1000TG8/0, without connector

Temperature range: -80 to 200°C
code SN104
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263
Temperature probe for COMEO Solar Shields F8x00, Pt1000TR160/0, without connector, cable 25 cm

Temperature probe for COMEO Solar Shields F8x00, Pt1000TR160/0, without connector, cable 25 cm

Temperature range: -30 to 80°C
code SN250V
Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature probe Pt1000TR050S/0, without connector, cable 1 meter

Temperature range: -50 to 350°C
code SN247
Ultra thin temperature probe Pt1000TG3/0, without connector

Ultra thin temperature probe Pt1000TG3/0, without connector

Temperature range: -50 to 200°C
code SN252
Temperature probe Pt1000TG7/0, without connector

Temperature probe Pt1000TG7/0, without connector

Temperature range: -50 to 200°C
code SN164
Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature probe Pt1000TR125/0, without connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239
Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature probe 2304-220/0, without connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168
Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature probe 2021-150/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169
Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature probe PTS350A-2/0, without connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170
Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature probe 2034-220/0, without connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175
Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature probe 2061-200/0, without connector, cable 1 meter

Temperature range: -30 to 200°C
code SN178
Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature probe Pt1000TGL40/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185
Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature probe Pt1000TR160/0, without connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199
PTS380K/0 temperature sensor with a stainless steel connection head and connector

PTS380K/0 temperature sensor with a stainless steel connection head and connector

Temperature range: -30 to 100°C
code SN205
Stick-in probe 2091-250/0, without connector, cable 1 meter

Stick-in probe 2091-250/0, without connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210
Special probe 2071-80/0, without connector

Special probe 2071-80/0, without connector

Temperature range: -30 to 80°C
code SN214

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model T4211
1.33 MB

Manuals

download-icon Instruction Manual
346.87 KB
download-icon Quick Start Manual
919.30 KB
download-icon Declaration of Conformity
101.25 KB

Catalogs

download-icon CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
4.04 MB
