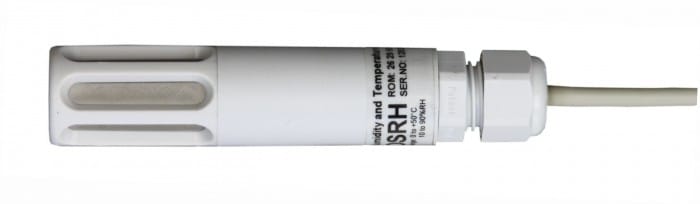

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital humidity-temperature probe for P8xxx Web Sensor with range 0 to 50°C. With CINCH connector.

  • code
    DSRH05

Technical data

Measured value

Temperature
Relative humidity

TEMPERATURE SENSOR

Measuring range 0 to +50 °C
Accuracy ± 2 °C

RELATIVE HUMIDITY SENSOR

Measuring range 10 to 90 %RV
Accuracy 3.5 %RV in range 10 to 90 %RV at 25 °C

GENERAL TECHNICAL DATA

Filtrační schopnost krytky senzoru 0.025mm - filter with stainless steel mesh
Dimensions of the case length 88mm;
diameter 18 mm
Length of lead-in cable 5 meters
Connector CINCH
IP protection IP40
Warranty 3 years
