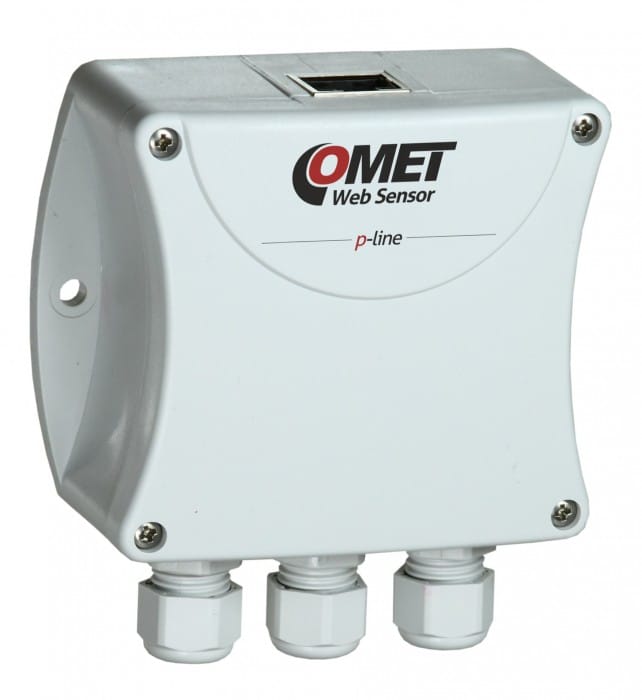

Web Sensor - two channel remote 0-20mA inputs

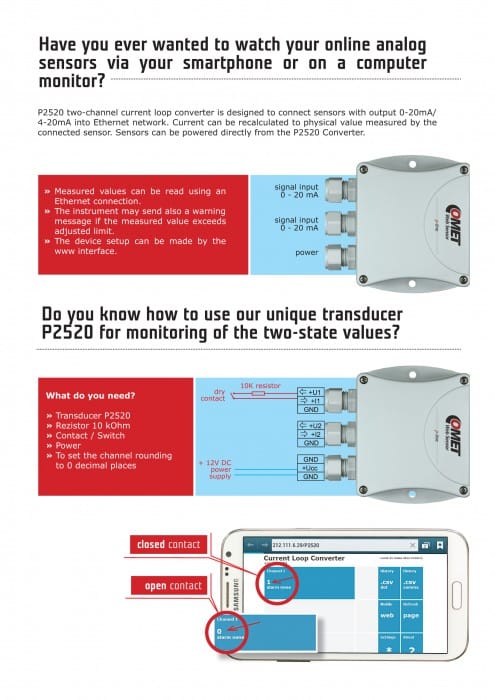

Dual channel p-line Web Sensor from 0-20mA (4-20mA) to Ethernet. Remote alarm.

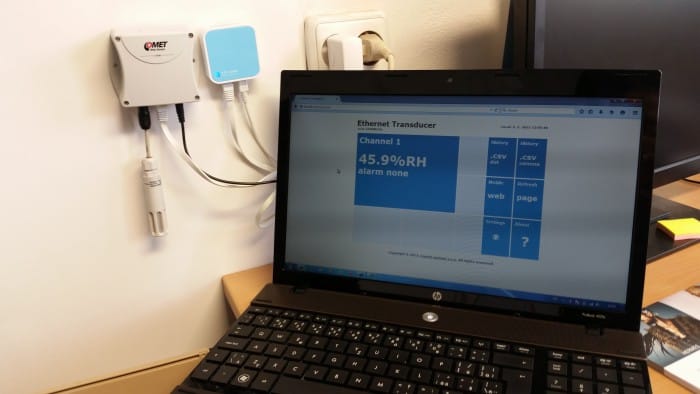

Easy wireless communication using Web Sensor and optional Wireless TP-LINK router.

Processing and analysis of measured data:

code

P2520
Warranty

3 years

Technical data

Measured value

Current

CURRENT INPUT

Accuracy proudu ±0.1% FS od 0 °C do +50 °C
±0.3% FS od -30 °C do +80 °C

Resolution 1 µA

A/D converter resolution 24bit sigma-delta

Input resistance 20 Ω

Measuring interval 1 s

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C

Channels 2x proudový vstup

Output Ethernet

Measuring interval 1 s

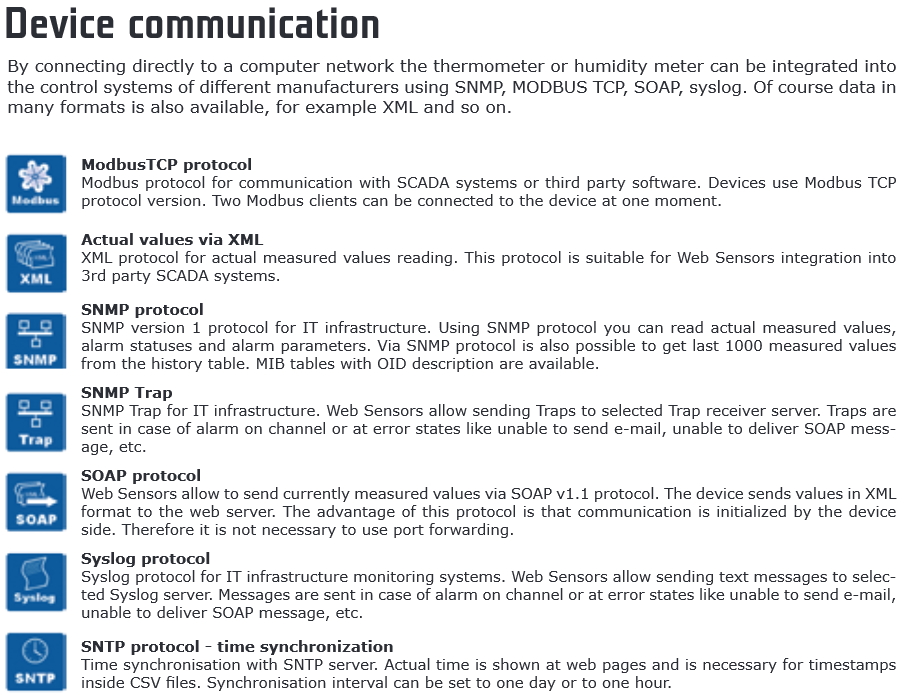

Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols E-mail, SNMP Trap, Syslog

Power 9-30 Vdc

Protection class IP30

Dimensions 88 x 126 x 39,5 mm

Weight approx. 150 g

Warranty 3 years
