WiFi temperature sensor for 4 external Pt1000 probes

Sensors with WiFi interface are designed to measure temperature from the up to four connected probes (optional accessories).

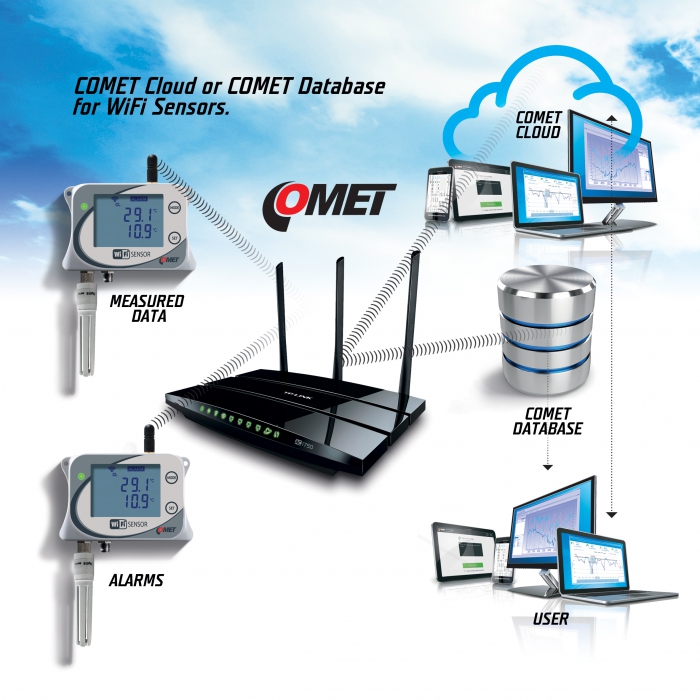

Communication with the sensor is done via a wireless WiFi network. The device allows sending measured values ​​to the online
COMET Cloud (with the shortest interval of 5 minutes) or into COMET Database. The values ​​can be displayed on integrated web pages and provided to third party systems using the Modbus TCP, SNMP, JSON and XML. The measured values ​​are displayed on the LCD display.

The device continuously evaluates the alarm limits of the measured values ​​and in case of exceeding them, it can send an e-mail or inform by means of acoustic or optical signaling. Two alarm limits are supported for each measurement channel.

The main advantage of sensors with WiFi interface is the simplicity of deployment in places where WiFi infrastructure is already available. Just place the sensor in the desired location and connect it to the WiFi network. WiFi sensor in conjunction with
COMET Cloud offers a comprehensive solution for monitoring and alarm without the need for a server solution on the part of the user. If necessary, however, the sensor can also be connected to third-party systems, either using the Modbus TCP protocol, SNMP protocol or by sending JSON data to an http server. Sensor allow to provide values via XML and JSON using HTTP GET requests as well.

Thanks to these unique features, the WiFi sensor will find applications and a wide range of application areas.

  • code
    W0741
  • Warranty
    3 years

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -90 to +260 °C
Accuracy ±0.2 °C in the range -90 to +100 °C; ±0.2 % from reading from +100 to +260 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels 4x external temperature probe (Pt1000), CINCH connector
Measuring interval 1 s
Sending interval to COMET Cloud adjustable 5 minutes to 12 hours
Communication protocols HTTP(S), SMTP, ModbusTCP, SNMP (v1, v2c, v3), HTTP POST, HTTP GET (JSON, XML)
Alarm signalization e-mail, acoustic, LED
Power 5.0 to 5.4 VDC; consumption 150 mA (max. 500 mA); USB-C connector
Radio section frequency: 2.4 GHz; max. transmit power: 18 dBm; standard: IEEE 802.11 b/g/n
WiFi security Open, WEP, WPA, WPA2, WPA2-PMF, WPA3, WPA2-EAP
Protection class IP30
Dimensions 81 x 93 x 32 mm
Weight 115 g
Warranty 3 years

Optional accessories and download

Temperature probe Pt1000TG8/C, CINCH connector

Temperature probe Pt1000TG8/C, CINCH connector

Temperature range: -80 to 200°C
code SN104C
Temperature probe Pt1000TG8/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TG8/C, CINCH connector, cable 2 meters

Temperature range: -80 to 200°C
code SN105C
Temperature probe Pt1000TG8/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TG8/C, CINCH connector, cable 5 meters

Temperature range: -80 to 200°C
code SN108C
Temperature probe Pt1000TG8/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TG8/C, CINCH connector, cable 10 meters

Temperature range: -80 to 200°C
code SN113C
Temperature probe Pt1000TG7/C, CINCH connector

Temperature probe Pt1000TG7/C, CINCH connector

Temperature range: -50 to 200°C
code SN164C
Temperature probe Pt1000TG7/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TG7/C, CINCH connector, cable 2 meters

Temperature range: -50 to 200°C
code SN165C
Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TG7/C, CINCH connector, cable 5 meters

Temperature range: -50 to 200°C
code SN166C
Temperature probe Pt1000TG7/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TG7/C, CINCH connector, cable 10 meters

Temperature range: -50 to 200°C
code SN167C
Temperature probe 2304-220/C, CINCH connector, cable 1 meter

Temperature probe 2304-220/C, CINCH connector, cable 1 meter

Temperature range: -30 to 220°C
code SN168C
Temperature probe 2021-150/C, CINCH connector, cable 1 meter

Temperature probe 2021-150/C, CINCH connector, cable 1 meter

Temperature range: -30 to 150°C
code SN169C
Temperature probe PTS350A-2/C, CINCH connector, cable 2 meters

Temperature probe PTS350A-2/C, CINCH connector, cable 2 meters

Temperature range: -30 to 130°C
code SN170C
Temperature probe 2034-220/C, CINCH connector, cable 1 meter

Temperature probe 2034-220/C, CINCH connector, cable 1 meter

Temperature range: -30 to 150°C
code SN175C
Temperature probe 2061-200/C, CINCH connector, cable 1 meter

Temperature probe 2061-200/C, CINCH connector, cable 1 meter

Temperature range: -50 to 200°C
code SN178C
Temperature probe 2061-200/C, CINCH connector, cable 2 meters

Temperature probe 2061-200/C, CINCH connector, cable 2 meters

Temperature range: -50 to 200°C
code SN179C
Temperature probe 2061-200/C, CINCH connector, cable 5 meters

Temperature probe 2061-200/C, CINCH connector, cable 5 meters

Temperature range: -50 to 200°C
code SN180C
Temperature probe 2061-200/C, CINCH connector, cable 10 meters

Temperature probe 2061-200/C, CINCH connector, cable 10 meters

Temperature range: -50 to 200°C
code SN181C
Temperature probe PTS350A-5/C, CINCH connector, cable 5 meters

Temperature probe PTS350A-5/C, CINCH connector, cable 5 meters

Temperature range: -30 to 130°C
code SN182C
Temperature probe PTS350A-10/C, CINCH connector, cable 10 meters

Temperature probe PTS350A-10/C, CINCH connector, cable 10 meters

Temperature range: -30 to 130°C
code SN183C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TGL40/C, CINCH connector, cable 1 meter

Temperature range: -30 to 80°C
code SN185C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TGL40/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN186C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TGL40/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN187C
Temperature probe Pt1000TGL40/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TGL40/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN188C
Temperature probe Pt1000TR160/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR160/C, CINCH connector, cable 1 meter

Temperature range: -30 to 80°C
code SN199C
Temperature probe Pt1000TR160/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR160/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN200C
Temperature probe Pt1000TR160/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR160/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN201C
Temperature probe Pt1000TR160/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR160/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN202C
Temperature probe Pt1000TR160/C, CINCH connector, cable 15 meters

Temperature probe Pt1000TR160/C, CINCH connector, cable 15 meters

Temperature range: -30 to 80°C
code SN203C
Temperature probe Pt1000TR160/C, CINCH connector, cable 20 meters

Temperature probe Pt1000TR160/C, CINCH connector, cable 20 meters

Temperature range: -30 to 80°C
code SN204C
Stick-in probe 2091-250/C, CINCH connector, cable 1 meter

Stick-in probe 2091-250/C, CINCH connector, cable 1 meter

Temperature range: -50 to 250°C
code SN210C
Stick-in probe 2091-250/C, CINCH connector, cable 2 meters

Stick-in probe 2091-250/C, CINCH connector, cable 2 meters

Temperature range: -50 to 250°C
code SN211C
Stick-in probe 2091-250/C, CINCH connector, cable 5 meters

Stick-in probe 2091-250/C, CINCH connector, cable 5 meters

Temperature range: -50 to 250°C
code SN212C
Stick-in probe 2091-250/C, CINCH connector, cable 10 meters

Stick-in probe 2091-250/C, CINCH connector, cable 10 meters

Temperature range: -50 to 250°C
code SN213C
Temperature probe Pt1000TR125/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR125/C, CINCH connector, cable 1 meter

Temperature range: -190 to 150°C
code SN239C
Temperature probe Pt1000TR125/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR125/C, CINCH connector, cable 2 meters

Temperature range: -190 to 150°C
code SN240C
Temperature probe Pt1000TR125/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR125/C, CINCH connector, cable 5 meters

Temperature range: -190 to 150°C
code SN241C
Temperature probe Pt1000TR125/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR125/C, CINCH connector, cable 10 meters

Temperature range: -190 to 150°C
code SN242C
Temperature probe Pt1000TR050S/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050S/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Ultra thin temperature probe Pt1000TG3/C, CINCH connector

Temperature range: -50 to 200°C
code SN252C
Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature probe Pt1000TR050S/C, CINCH connector, cable 10 meters

Temperature range: -50 to 400°C
Discontinued
Ambient temperature probe, 201-80/C

Ambient temperature probe, 201-80/C

Temperature range: -30 to 80°C
code SN258
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II

Temperature range: -30 to 180°C
code SN263C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 2 meters

Temperature range: -30 to 180°C
code SN264C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 5 meters

Temperature range: -30 to 180°C
code SN265C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 10 meters

Temperature range: -30 to 180°C
code SN266C
Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature probe Pt1000TG8Ex/C, CINCH connector, for ATEX zone II, cable 15 meters

Temperature range: -30 to 180°C
code SN267C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature probe Pt1000TR050M/C, CINCH connector, cable 1 meter

Temperature range: -50 to 400°C
code SN270C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 2 meters

Temperature range: -50 to 400°C
code SN271C
Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature probe Pt1000TR050M/C, CINCH connector, cable 5 meters

Temperature range: -50 to 400°C
code SN272C

Accredited temperature calibration

Accredited temperature calibration

code SLU001

USB-C cable, 1 meter

USB-C cable, 1 meter

code MP053

Wall holder for datalogger

Wall holder for datalogger

code LP100
Holder for mounting the Datalogger "U" on magnetic surfaces

Holder for mounting the Datalogger "U" on magnetic surfaces

code LP102

COMET Cloud

COMET Cloud

code cloud
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
3.55 MB
download-icon Quick Start Manual
1.40 MB
download-icon Safety Information
274.30 KB
download-icon Calibration manual
457.30 KB
download-icon Declaration of Conformity
59.42 KB
download-icon MIB
577.77 KB

Firmware and SDK

download-icon Firmware version 10-0-6-0 (2022-04-25)
2.12 MB
download-icon Software development kit (SDK)
22.49 KB

Catalogs

download-icon CATALOG - WiFi Sensors
3.55 MB
download-icon Catalogue Sheets - COMET WiFi Sensors
1.48 MB

Related products

COMET Cloud

COMET Cloud

code cloud
COMET Database

COMET Database

code CDB
WiFi temperature sensor with integrated probe

WiFi temperature sensor with integrated probe

code W0710
WiFi temperature sensor for one external Pt1000 probe

WiFi temperature sensor for one external Pt1000 probe

code W0711
WiFi temperature and relative humidity sensor with integrated probe

WiFi temperature and relative humidity sensor with integrated probe

code W3710
WiFi temperature and relative humidity sensor for two external probes

WiFi temperature and relative humidity sensor for two external probes

code W3721
WiFi temperature, relative humidity, CO2 and atmospheric pressure sensor with integrated probe

WiFi temperature, relative humidity, CO2 and atmospheric pressure sensor with integrated probe

code W4710
WiFi CO2 sensor with integrated probe

WiFi CO2 sensor with integrated probe

code W5714
WiFi temperature, relative humidity and atmospheric pressure sensor with integrated probe

WiFi temperature, relative humidity and atmospheric pressure sensor with integrated probe

code W7710
