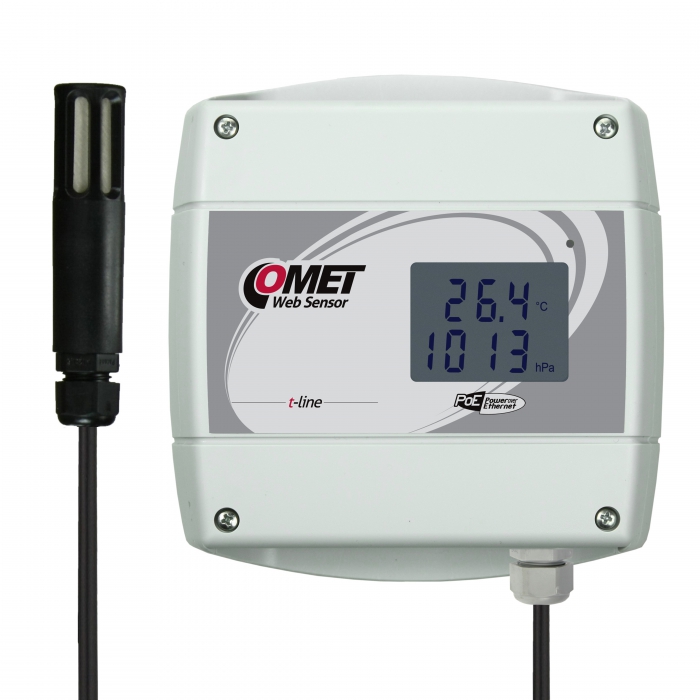

Web Sensor with PoE - remote thermometer hygrometer barometer with Ethernet interface

Ambient temperature, relative humidity, atmospheric pressure t-line Web sensor with Power over Ethernet feature. Remote alarm.

PoE Web Sensor with relative humidity and temperature probe on the cable. Weather sensor with one of the best barometers.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Power over Ethernet feature according IEEE 802.3af is supported. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

The device is supplied with T+RH probe with 1 meter cable.





  • code
    T7611
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)
Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa
Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal atmospheric pressure sensor, 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output Ethernet
Range of humidity sensor temperature compensation all temperature range
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Available pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30 electronics; IP40 sensors
Dimensions 136 x 159 x 45 mm; stem length 75 mm
External probe cable length 1 meter
Weight approx. 380 g
Warranty 3 years

Optional accessories and download

Other accessories

AC/DC adapter 230Vac to 5Vdc/2.1A

AC/DC adapter 230Vac to 5Vdc/2.1A

code A1825
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

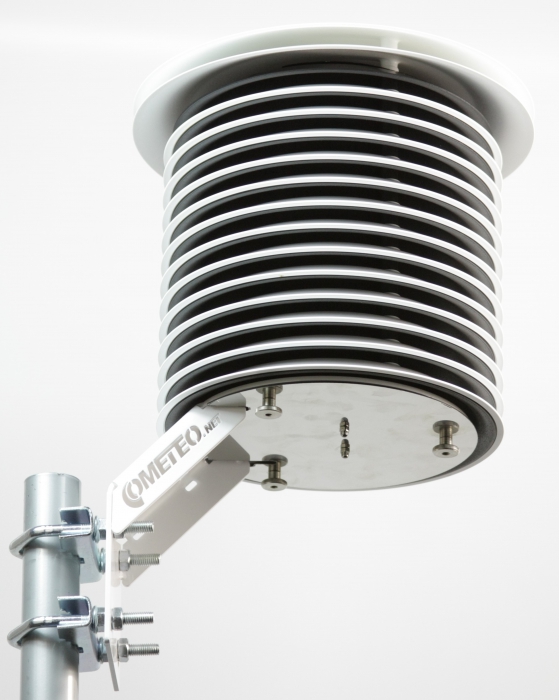

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors

code F8100
plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
sintered bronze sensor cover

sintered bronze sensor cover

code F0000
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W

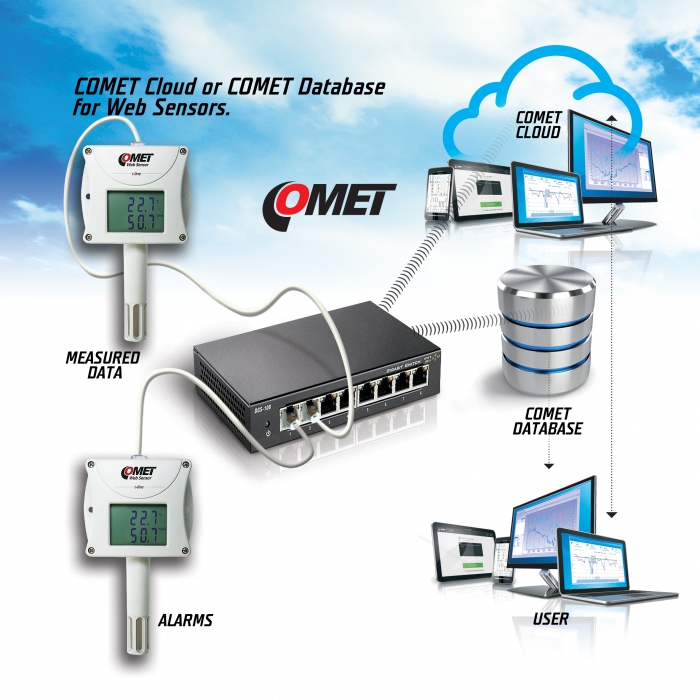

Monitoring software

Comet Database

Comet Database

code CDB
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Software

download-icon Comet Database One Click Installer (19.0-III)
324.96 MB
download-icon Database Viewer 3.12.0.0 dbapi 19.0
22.09 MB
download-icon TSensor (3-3-6-0)
2.70 MB
download-icon Sensor Reader (2-0-6-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Manuals

download-icon Instruction Manual
2.38 MB
download-icon Quick Start Manual
853.16 KB
download-icon Declaration of Conformity
101.25 KB
download-icon MIB
540.52 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
6.98 MB
download-icon DATASHEET - WebSensor with Ethernet output
3.62 MB
