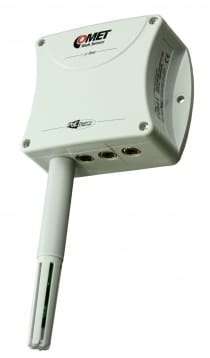

Web Sensor with PoE - four channels remote thermometer hygrometer

code: P8641

Four channel p-line Web Sensor with PoE - Power over Ethernet feature. Temperature and humidity + temperature probes are supported. Remote alarm.

Included in delivery:

P8641 Web Sensor
Quick start manual
Traceable calibration certificate
Technical support at discussion forum

Technical data	Value
Measured value	Temperature Relative humidity
TEMPERATURE SENSOR
Measuring range	-55 to +105 °C
Accuracy	according to the connected probe DSxx
Resolution	0.1 °C
HUMIDITY SENSOR
Measuring range	according to the connected probe DSxx
Accuracy	according to the connected probe DSxx
Resolution	0.1% RH
GENERAL TECHNICAL DATA
Operating temperature	-30 to +80 °C
Channels	4x external temperature probe or 4x external temperature+humidity probe
Output	Ethernet
Measuring interval	2 s
Available temperature units	degrees Celsius, degrees Fahrenheit
Communication protocol	WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols	E-mail, SNMP Trap, Syslog
Power	Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class	IP30
Dimensions	88 x 74 x 39,5 mm
Weight	approx. 135 g
Warranty	3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events

● communication protocols SNMP, Modbus TCP, SOAP, XML

● webserver to display current and recorded values

● alarm indication via email

● selected models with PoE

● data analysis in COMET Database software

Download

Software

Comet Database One Click Installer (18.0-II) 325.81 MB

Database Viewer 3.11.0.0 dbapi 18.0 22.61 MB

TSensor (3-3-4-0) 2.65 MB

Sensor Reader (2-0-6-0) 2.74 MB

Conversions - application for recalculation of values 694.50 KB

Virtual Channels Unlock for P8xxx 703.00 KB

Manuals

Instruction Manual 1.45 MB

Quick Start Manual 822.74 KB

Declaration of Conformity 102.32 KB

MIB 540.52 KB

Catalogs

CATALOG - WebSensor with Ethernet output 8.21 MB

DATASHEET - WebSensor with Ethernet output 3.62 MB

Optional accessories

Temperature Probes

Relative humidity probes

Other accessories

Monitoring software

DSTGL40/C, digital temperature probe, cable 1 m

DSTGL40/C, digital temperature probe, cable 1 m
Temperature range: -30 to 80 °C

code:

SN189C

DSTGL40/C, digital temperature probe, cable 2 m

DSTGL40/C, digital temperature probe, cable 2 m
Temperature range: -30 to 80 °C

code:

SN190C

DSTGL40/C, digital temperature probe, cable 5 m

DSTGL40/C, digital temperature probe, cable 5 m
Temperature range: -30 to 80 °C

code:

SN191C

DSTGL40/C, digital temperature probe, cable 10 m

DSTGL40/C, digital temperature probe, cable 10 m
Temperature range: -30 to 80 °C

code:

SN192C

DSTG8/C, digital temperature probe, cable 1 m

DSTG8/C, digital temperature probe, cable 1 m
Temperature range: -50 to 125 °C

code:

SN228C

DSTG8/C, digital temperature probe, cable 2 m

DSTG8/C, digital temperature probe, cable 2 m
Temperature range: -50 to 125 °C

code:

SN229C

DSTG8/C, digital temperature probe, cable 5 m

DSTG8/C, digital temperature probe, cable 5 m
Temperature range: -50 to 125 °C

code:

SN230C

DSTG8/C, digital temperature probe, cable 10 m

DSTG8/C, digital temperature probe, cable 10 m
Temperature range: -50 to 125 °C

code:

SN231C

DSTR162/C, digital temperature probe, cable 1 m

DSTR162/C, digital temperature probe, cable 1 m
Temperature range: -30 to 80 °C

code:

SN215C

DSTR162/C, digital temperature probe, cable 2 m

DSTR162/C, digital temperature probe, cable 2 m
Temperature range: -30 to 80 °C

code:

SN216C

DSTR162/C, digital temperature probe, cable 5 m

DSTR162/C, digital temperature probe, cable 5 m
Temperature range: -30 to 80 °C

code:

SN217C

DSTR162/C, digital temperature probe, cable 10 m

DSTR162/C, digital temperature probe, cable 10 m
Temperature range: -30 to 80 °C

code:

SN218C

Temperature probe for p-line Web Sensor

Temperature probe for p-line Web Sensor

code:

DST/C

Humidity-temperature probe for p-line Web Sensor

Humidity-temperature probe for p-line Web Sensor
Temperature range: 0 to 50 °C

code:

DSRH/C

Humidity-temperature probe for p-line Web Sensor with cable length 1m

Humidity-temperature probe for p-line Web Sensor with cable length 1m
Temperature range: 0 to 50 °C

code:

DSRH01

Humidity-temperature probe for p-line Web Sensor with cable length 2m

Humidity-temperature probe for p-line Web Sensor with cable length 2m
Temperature range: 0 to 50 °C

code:

DSRH02

Humidity-temperature probe for p-line Web Sensor with cable length 5m

Humidity-temperature probe for p-line Web Sensor with cable length 5m
Temperature range: 0 to 50 °C

code:

DSRH05

COMETEO Multi-Plate Radiation Shield for Weather Sensors, Naturally Ventilated

COMETEO Multi-Plate Radiation Shield for Weather Sensors, Naturally Ventilated

code:

F8100

AC/DC adapter 230Vac to 5Vdc/2.1A

AC/DC adapter 230Vac to 5Vdc/2.1A

code:

A1825

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code:

MP046

Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code:

MP047

KIT-GSM with modem

KIT-GSM with modem

code:

KIT-GSM-W

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code:

SP009

Comet Database

Comet Database

code:

CDB

Database Viewer for Comet Database

Database Viewer for Comet Database

code:

DBV
