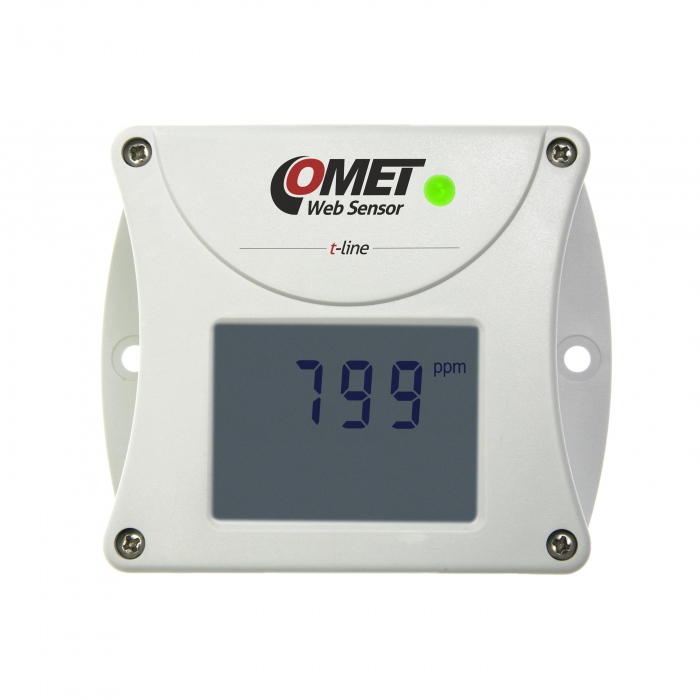

WebSensor - remote CO2 concentration with Ethernet interface

CO2 - carbon dioxide t-line Web sensor. Remote alarm.

Web Sensor with built-in concentration CO2 sensor.

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:





  • code
    T5540
  • Warranty
    3 years

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal CO2 sensor
Output Ethernet
Measuring interval 15 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 72,5 x 39,5 mm
Weight approx. 140 g
Warranty 3 years
