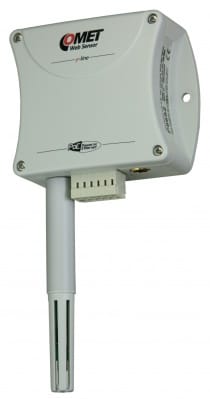

Web Sensor with PoE - two channels with binary inputs

P-line Web Sensor with PoE (Power over Ethernet feature) for measuring temperature, relative humidity and three binary inputs for two-states signals. Remote alarm.

The device is equipped with two connectors for connection of the temperature and humidity external probes and three binary inputs for two-states signals. The dry contact or two-state voltage signal can be connect to the binary input.

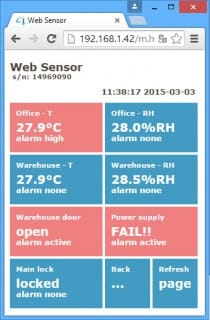

Processing and analysis of measured data:







  • code
    P8652
  • Warranty
    3 years

Technical data

Measured value

Temperature
Relative humidity
Two-state signal

TEMPERATURE SENSOR

Measuring range -55 to +105 °C
Accuracy according to the connected probe DSxx
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range according to the connected probe DSxx
Accuracy according to the connected probe DSxx
Resolution 0.1% RH

BINARY INPUT

Parameters of the voltage contact Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source < 2kOhm
Input voltage range 0 to +30 V
Parameters of the voltage-free contact Voltage on the unclosed contact 3,3 V
Current through closed contact 0,1 mA
Maximum resistivity of the contact < 5kOhm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels 1x external temperature probe nebo 1x connectable temperature+humidity probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30
Dimensions 88 x 74 x 39,5 mm
Weight approx. 125 g
Warranty 3 years

Optional accessories and download

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature probe for "p-line" WebSensor, CINCH connector, direct insertion

code DST/C
Digital temperature probe DSTGL40/C, CINCH connector

Digital temperature probe DSTGL40/C, CINCH connector

Temperature range: -30 to 80°C
code SN189C
Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN190C
Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN191C
Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Digital temperature probe DSTGL40/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN192C
Digital temperature probe DSTR162/C, CINCH connector

Digital temperature probe DSTR162/C, CINCH connector

Temperature range: -30 to 80°C
code SN215C
Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 2 meters

Temperature range: -30 to 80°C
code SN216C
Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 5 meters

Temperature range: -30 to 80°C
code SN217C
Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Digital temperature probe DSTR162/C, CINCH connector, cable 10 meters

Temperature range: -30 to 80°C
code SN218C
Digital temperature probe DSTG8/C, CINCH connector

Digital temperature probe DSTG8/C, CINCH connector

Temperature range: -50 to 125°C
code SN228C
Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 2 meters

Temperature range: -50 to 125°C
code SN229C
Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 5 meters

Temperature range: -50 to 125°C
code SN230C
Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Digital temperature probe DSTG8/C, CINCH connector, cable 10 meters

Temperature range: -50 to 125°C
code SN231C

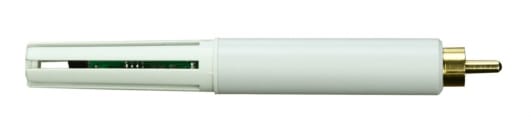

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, direct insertion

Temperature range: 0 to 50°C
code DSRH/C
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Temperature range: 0 to 50°C
Discontinued

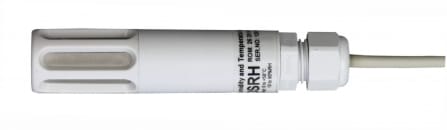

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector

Temperature range: 0 to 50°C
code DSRH01+
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Temperature range: 0 to 50°C
Discontinued
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 2 meters

Temperature range: 0 to 50°C
code DSRH02+
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Temperature range: 0 to 50°C
Discontinued
Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Digital temperature/humidity probe for "p-line" WebSensor, CINCH connector, cable 5 meters

Temperature range: 0 to 50°C
code DSRH05+

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

AC/DC adapter 230Vac to 5Vdc/2.1A, EU

code A1825eu
AC/DC adapter 230Vac to 5Vdc/2.1A, UK

AC/DC adapter 230Vac to 5Vdc/2.1A, UK

code A1825uk
AC/DC adapter 230Vac to 5Vdc/2.1A, US

AC/DC adapter 230Vac to 5Vdc/2.1A, US

code A1825us

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003

KIT-GSM with modem

KIT-GSM with modem

code KIT-GSM-W

Sensor holder for mounting to rack 19"

Sensor holder for mounting to rack 19"

code MP046
Universal probe holder for easy mounting to rack 19"

Universal probe holder for easy mounting to rack 19"

code MP047
Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009

COMET Database

COMET Database

code CDB
COMET Cloud

COMET Cloud

code cloud
COMET Cloud Lite for Android & iOS

COMET Cloud Lite for Android & iOS

code cloud_app
Database Viewer for Comet Database

Database Viewer for Comet Database

code DBV

Motion detector JS20

Motion detector JS20

code JS20
The LD-12 flood detector

The LD-12 flood detector

code LD12
Magnetic door contact SA-200-A

Magnetic door contact SA-200-A

code SA200A
Magnetic door contact with cable length 10m

Magnetic door contact with cable length 10m

code SA200A-10
Magnetic door contact with cable length 15m

Magnetic door contact with cable length 15m

code SA200A-15
Magnetic door contact with cable length 2m

Magnetic door contact with cable length 2m

code SA200A-2
Magnetic door contact with cable length 20m

Magnetic door contact with cable length 20m

code SA200A-20
Magnetic door contact with cable length 30m

Magnetic door contact with cable length 30m

code SA200A-30
Magnetic door contact with cable length 5m

Magnetic door contact with cable length 5m

code SA200A-5
The optical smoke detector SD-283ST

The optical smoke detector SD-283ST

code SD280
Power detector SP008

Power detector SP008

code SP008

Screwdriver for WAGO terminals 3.5mm

Screwdriver for WAGO terminals 3.5mm

code MP031

COMET presentation case for samples

COMET presentation case for samples

code BM512
COMET Magnetic Foldable Stand

COMET Magnetic Foldable Stand

code PPO001

Software

download-icon Comet Database One Click Installer (21.1-V)
487.31 MB
download-icon Database Viewer 3.20.0.0 dbapi 21.1
24.33 MB
download-icon TSensor (3-5-5-0)
2.90 MB
download-icon Sensor Reader (2-0-8-0)
2.78 MB
download-icon Conversions - application for recalculation of values
694.50 KB
download-icon Virtual Channels Unlock for P8xxx
703.00 KB
download-icon COMET Cloud Lite - Android (Google Play)
download-icon COMET Cloud Lite - iOS (App Store)

Others

download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.26 MB
download-icon Quick Start Manual
879.46 KB
download-icon Declaration of Conformity
98.26 KB
download-icon How to add WebSensor to COMET Cloud
509.85 KB
download-icon MIB
577.77 KB
download-icon Software development kit (SDK)
48.18 KB

Catalogs

download-icon CATALOG - WebSensor with Ethernet output
4.06 MB
download-icon Catalogue Sheets - COMET Economy WebSensors
1.33 MB
